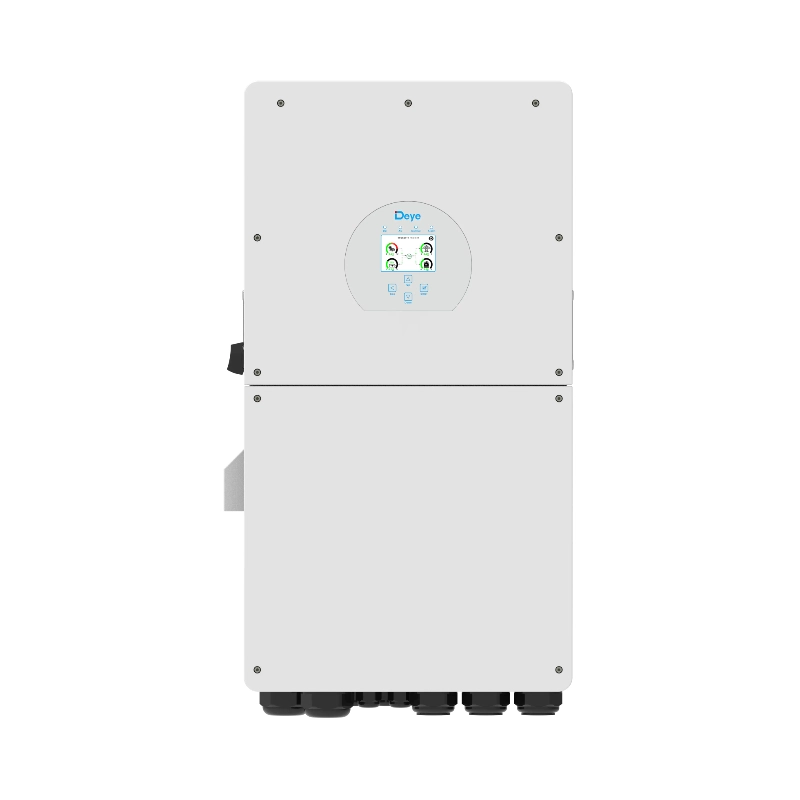

DEYE SUN-12/14/16/18K-SG01LP1-EU-AM3-P EU Version 12K-18KW Single Phase Low-voltage Hybrid Inverter
12kw
14kw
16kw
18kw
Description:
Introducing the Deye SUN-12/14/16/18K-SG01LP1-EU-P, a state-of-the-art single-phase hybrid inverter engineered to enhance energy storage and utilization for residential and commercial applications. This inverter embodies advanced technology and robust design, ensuring unparalleled energy efficiency and reliability.

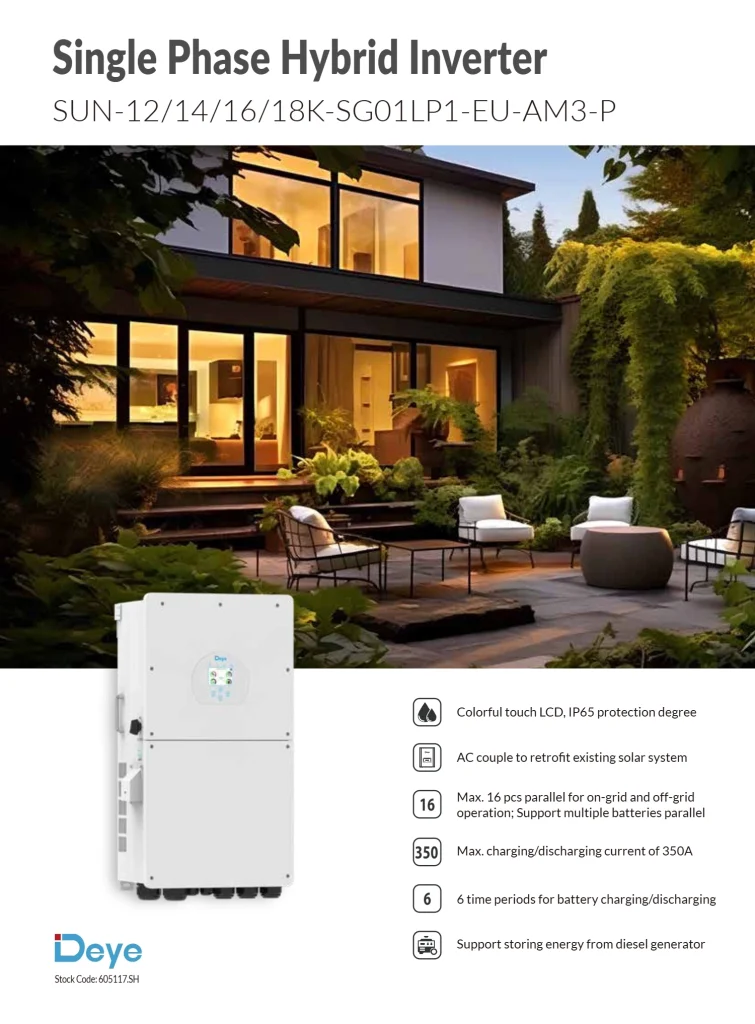

Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. charging/discharging current of350A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
With a remarkable maximum charging and discharging current of 290A, the Deye SUN-12/14/16/18K-SG01LP1-EU-P is well-suited to manage substantial energy loads. This feature makes the inverter highly adaptable for a diverse range of applications, from residential homes to commercial establishments.
Generator Compatibility
The inverter’s capability to store energy from diesel generators ensures an uninterrupted power supply even in remote or off-grid locations. This makes it an excellent choice for areas with limited grid access or unreliable power sources.
Parallel Operation
Supporting up to 16 parallel units for both on-grid and off-grid operations, the inverter offers immense scalability. This flexibility simplifies the process of expanding energy systems as demand grows, making it highly advantageous for commercial setups and large residential complexes.
Multiple Battery Support
The inverter is compatible with various parallel-connected batteries, including lead-acid and lithium-ion types. This compatibility enhances the overall energy storage capacity, allowing for more extensive and efficient energy management.
Retrofitting Capability
It can easily integrate with existing solar systems using AC coupling, which is ideal for updating and enhancing older solar installations.
Customizable Charging/Discharging
Featuring the ability to set up 6 different time periods for battery charging and discharging, users can optimize their energy usage according to availability, peak times, and cost considerations.
Intuitive Interface
Equipped with a colorful touch LCD, the inverter offers an easy-to-use interface for monitoring and control, ensuring a user-friendly experience.
Rugged Design
With an IP65 protection rating, the inverter is dust-tight and protected against water jets, making it suitable for various environmental conditions. Its robust design guarantees prolonged durability and reliability.
Safety and Compliance
The inverter meets stringent safety and EMC standards such as IEC/EN 61000-6-1/2/3/4 and IEC/EN 62109-1/2, ensuring reliable and safe operation across different regions and applications.

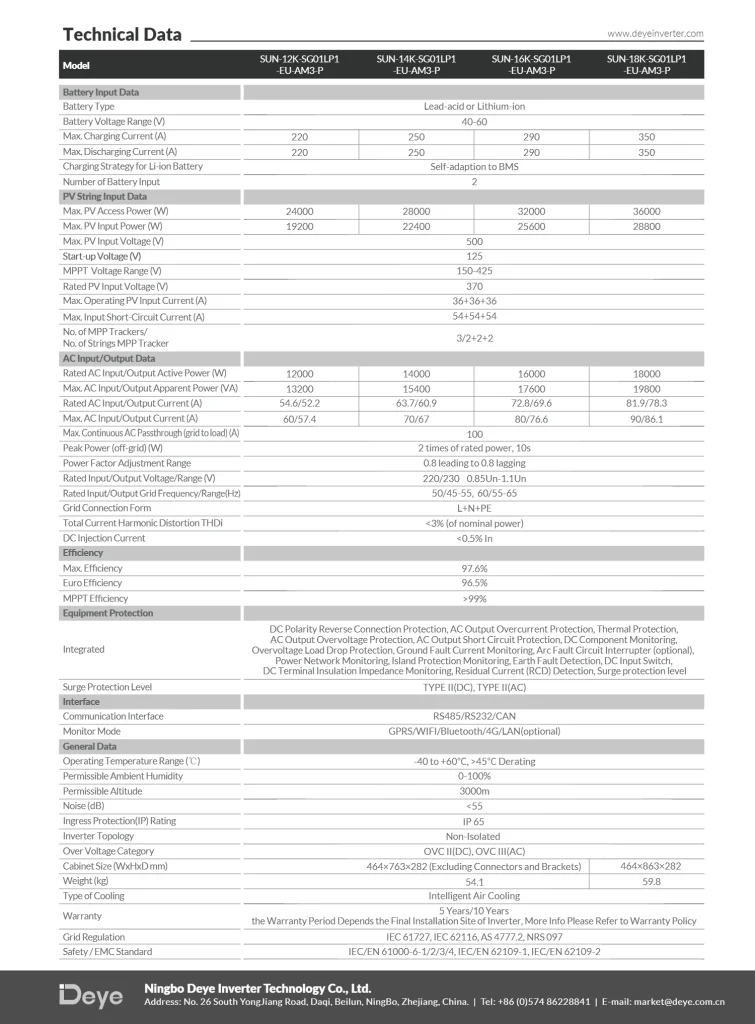

Power Factor Adjustment: 0.8 leading to 0.8 lagging
Max. AC Input/Output Current: Up to 80A
Max. Continuous AC Passthrough (grid to load): 2 times rated power for 10 seconds
Efficiency:
Max. Efficiency: 97.6%
Euro Efficiency: 96.5%
MPPT Efficiency: >99%
Total Current Harmonic Distortion (THDi): <3% of nominal power
Protection Mechanisms: Includes integrated DC polarity reverse connection protection, AC output overcurrent protection, AC output overvoltage protection, AC output short circuit protection, thermal protection, and more.
Operating Conditions:
Temperature Range: -40 to +60°C (derating above 45°C)
Humidity: 0-100%
Altitude: Up to 2000m
Noise Level: <50 dB
Cooling: Intelligent air cooling
Physical:
Cabinet Size: 464×763×282 (Excluding Connectors and Brackets)
Weight: 54.1 kg
Warranty: 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulations:IEC 61727, IEC 62116, AS 4777.2, NRS 097
The Deye SUN-12/14/16/18K-SG01LP1-EU-P hybrid inverter is your ideal partner for efficient and reliable energy management. Designed to meet the demanding requirements of modern energy systems, it offers unmatched performance and flexibility to ensure you make the most of your solar energy investments.
