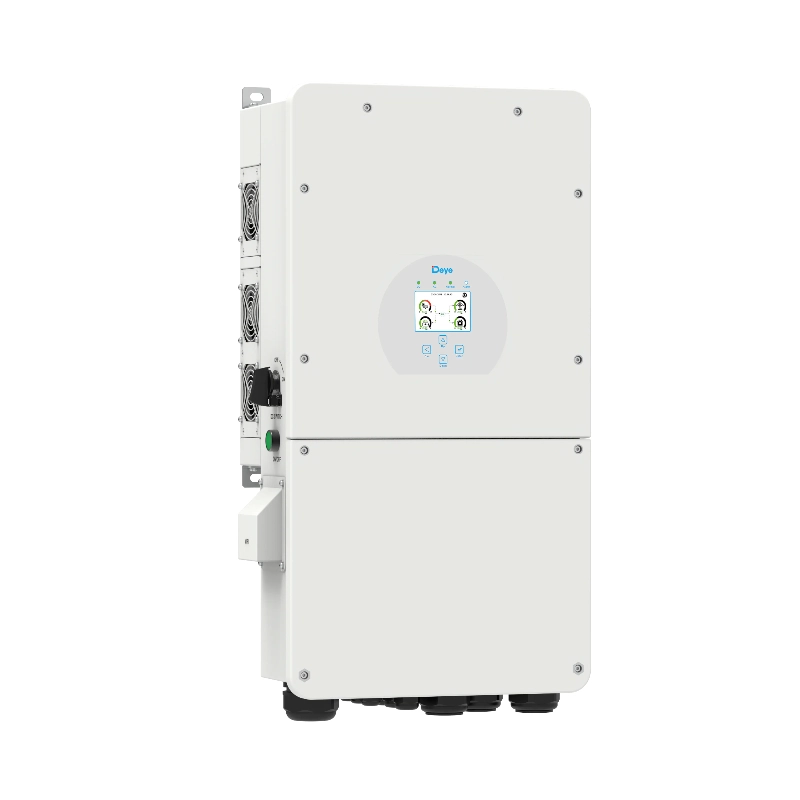

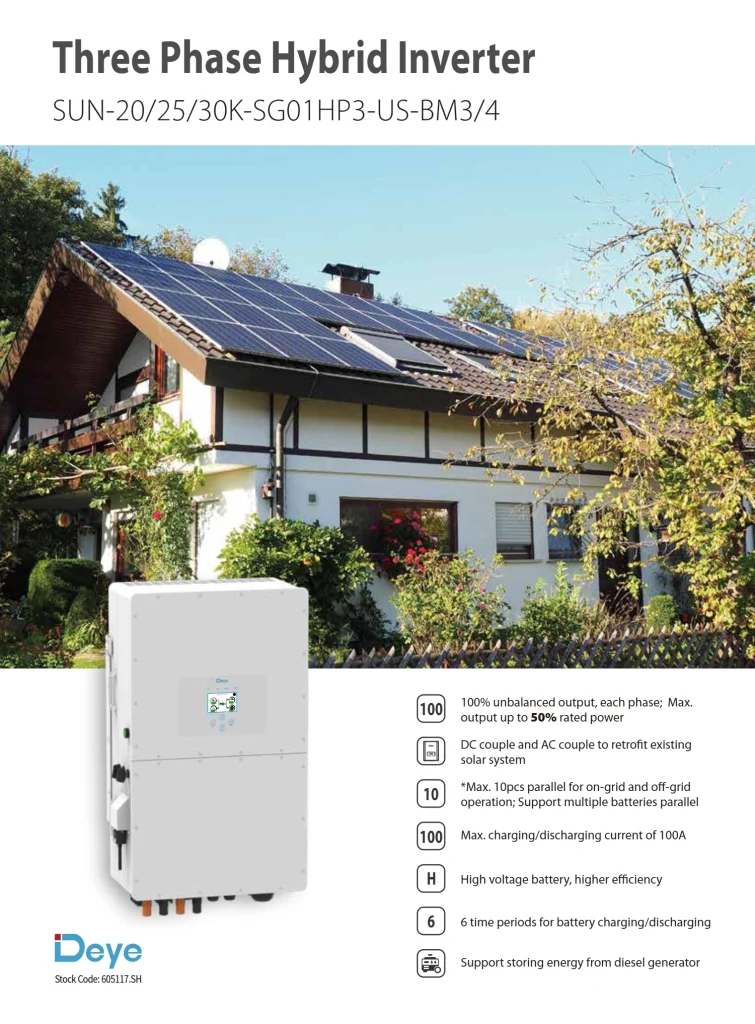

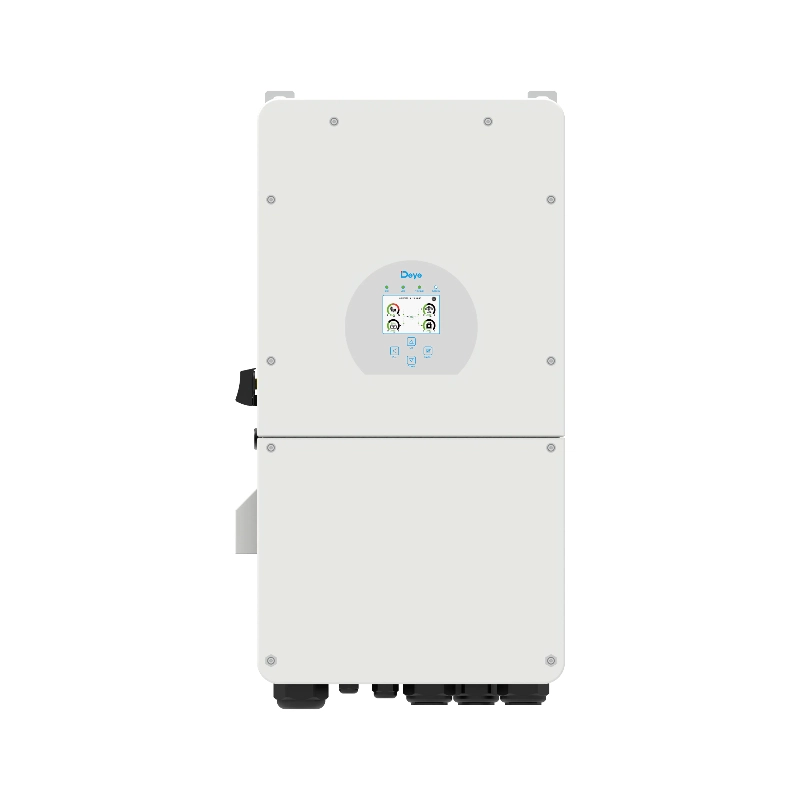

DEYE SUN-20/25/30K-SG01HP3-US-BM3/4 US Version 20K-30KW Three-phase High-voltage Hybrid Inverter

100% unbalanced output, each phase; Max. output up to 50% rated power
DC couple and AC couple to retroﬁt existing solar system
Max. 10pcs parallel for on-grid and oﬀ-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher eﬃciency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

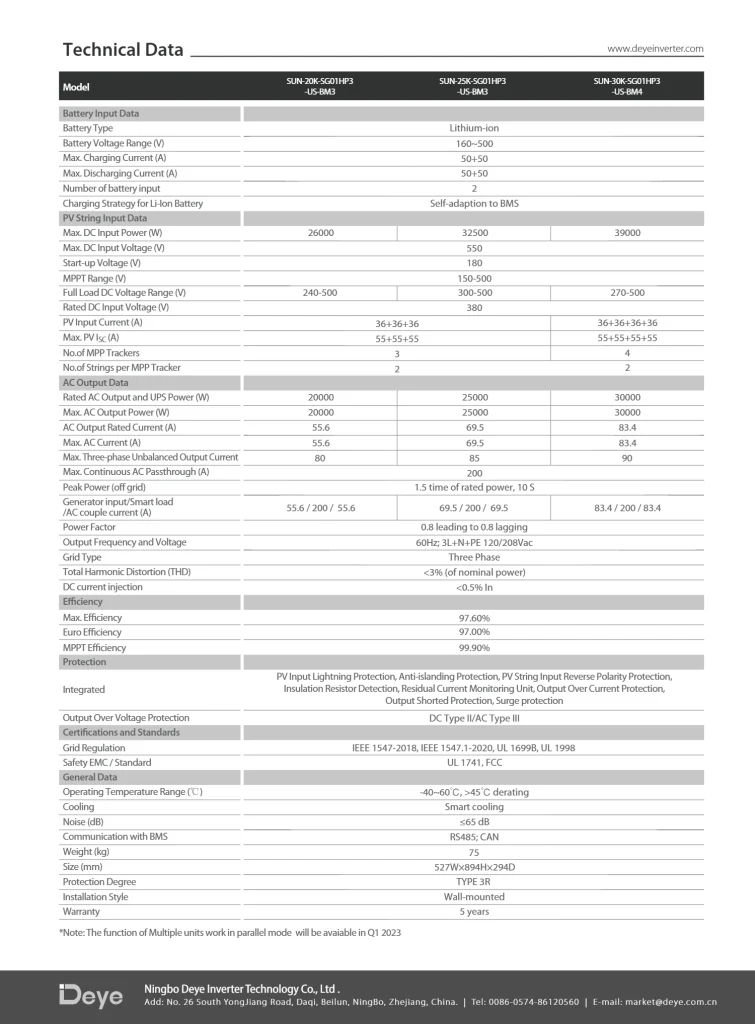

Model	SUN-20/25/30K-SG01HP3-US-BM3/4
Battery Voltage Range (V)	160-500
MPPT Range (V)	150-500
No. of MPP Trackers/No. of Strings MPP Tracker	3/4 2/2
Output Frequency and Voltage	60Hz; 3L+N+PE 120/208Vac

Inquire Now

description

Three Phase Hybrid Inverter | 20-30kW | 3/4 MPPT | HV Battery Supported

The Deye Three Phase Hybrid Inverter series is designed for robust performance and efficient energy management in both residential and commercial settings. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs.
