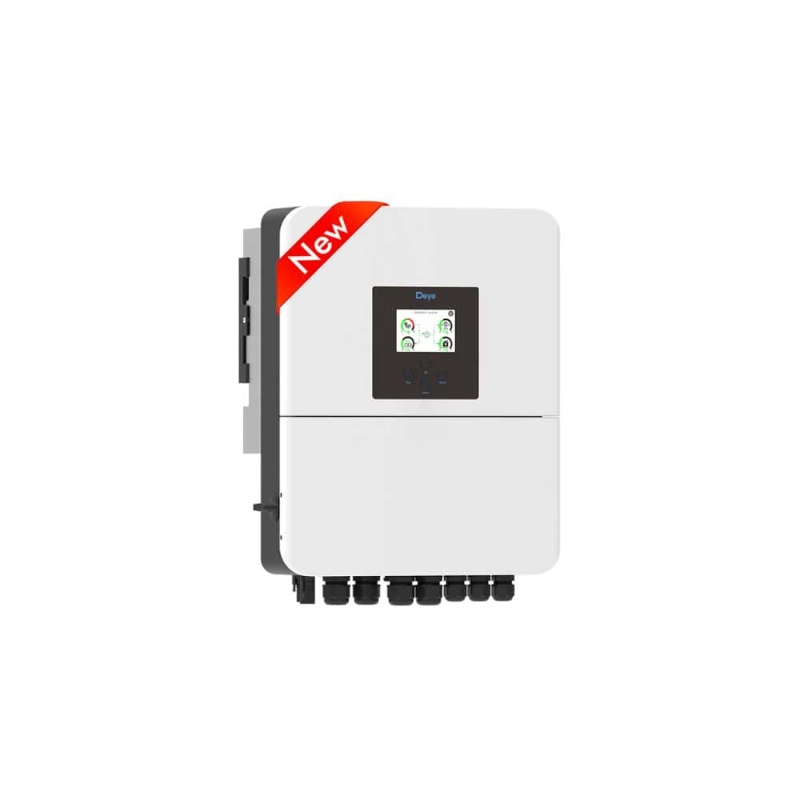

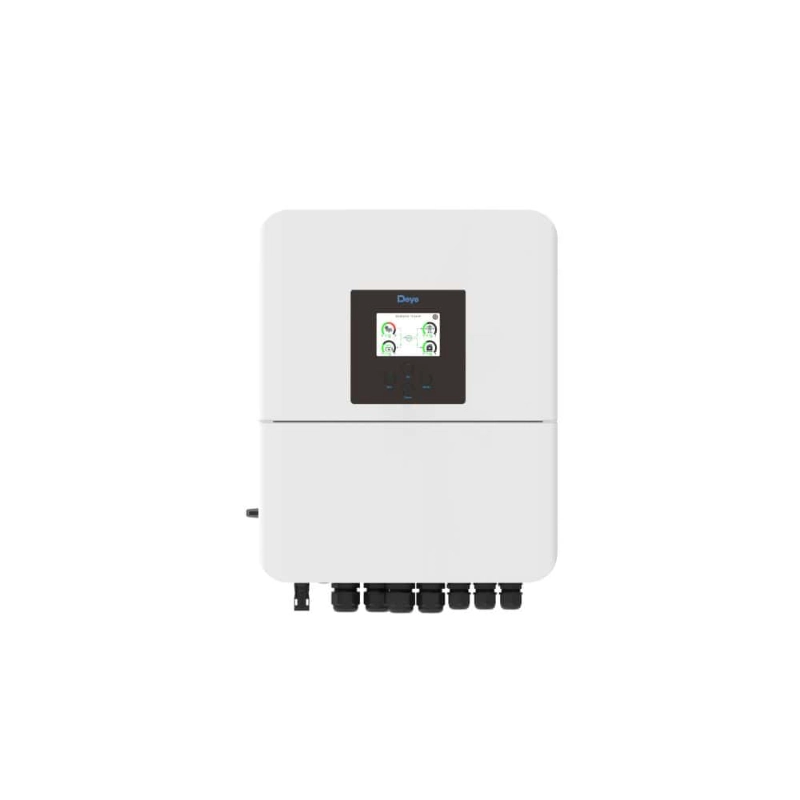

DEYE SUN-3/3.6/5/6K-SG04LP1-EU-SM1/SM2 EU Version 3K-6KW Single Phase Low-voltage Hybrid Inverter

Single Phase Hybrid Inverter |  3-6kW | 2 MPPT | LV Battery Supported

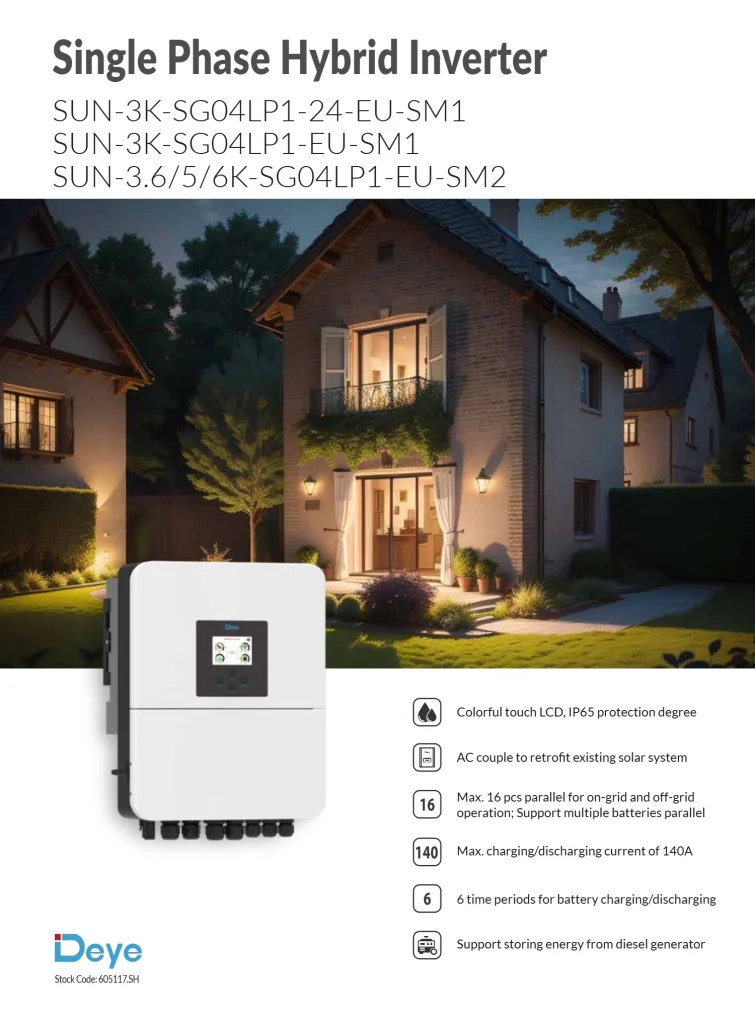

Key Features

1. High Charging/Discharging Capacity: These inverters boast a maximum charging and discharging current of up to 140A, allowing for substantial energy storage. This makes them ideal for high-demand applications, homes, businesses, and integration with diesel generators.
2. Parallel Operation: To meet growing energy demands, Deye’s inverters support up to 16 units in parallel connection. This feature provides scalable solutions, ensuring system stability and efficiency as energy needs expand.
3. Battery Compatibility: Deye’s hybrid inverters are versatile, supporting both lead-acid and lithium-ion batteries. They adapt their charging strategies based on the Battery Management System (BMS) of the batteries, optimizing performance and extending battery life.
4. Retrofit Capability: These inverters can be AC coupled to retrofit existing solar systems. This ensures a smooth transition to more advanced energy management systems without the need to replace existing solar setups.

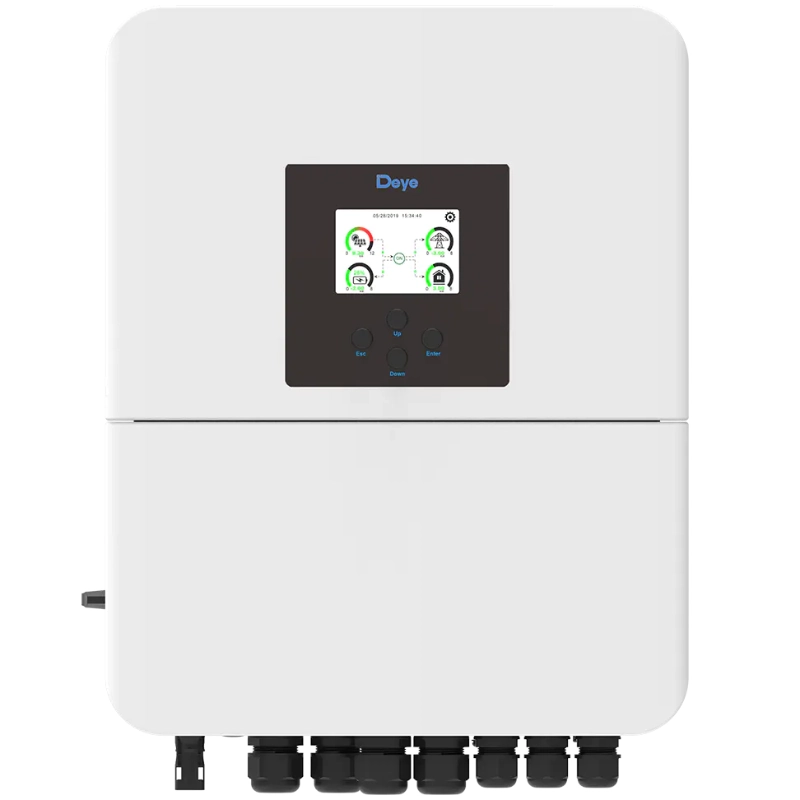

5. User-Friendly Interface: They come equipped with a colorful touch LCD, making them easy to monitor and control. Additionally, with an IP65 protection rating, these inverters are highly durable and resilient to environmental factors, ensuring longevity and reliability.
6. Smart Battery Management: With six programmable time periods for battery charging and discharging, these inverters allow for optimal energy use based on varying tariffs and load demands, enhancing cost-efficiency and energy management.

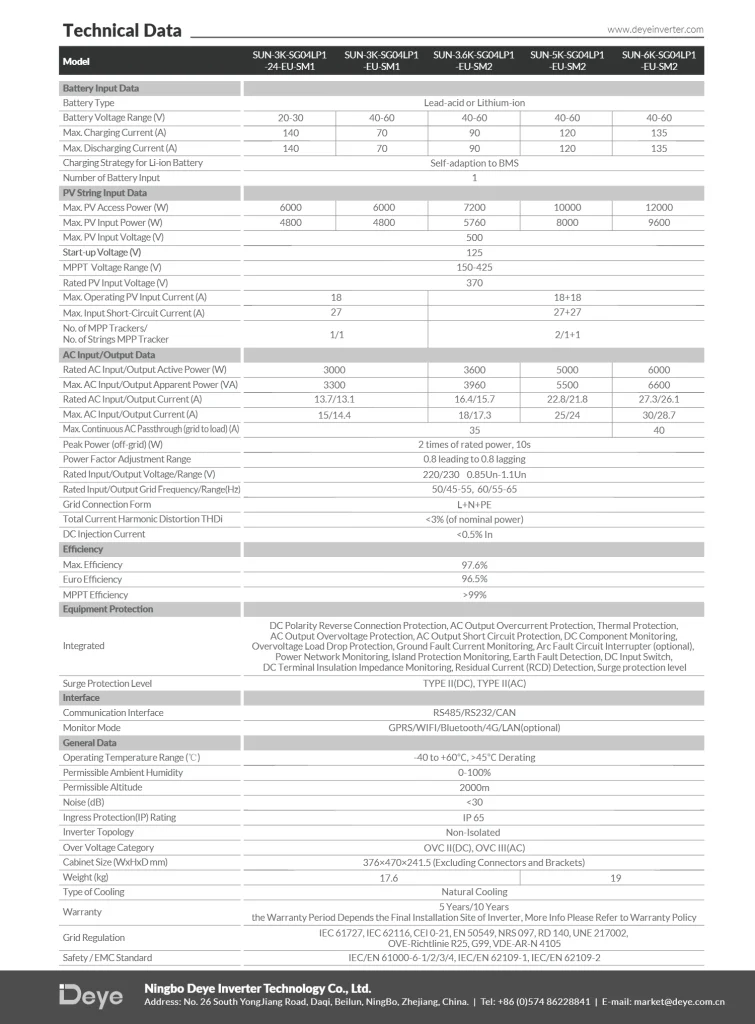

Technical Specifications

• Battery Input Voltage Range: 20-30V/40-60V
• Maximum Efficiency: Up to 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99%
• Total Current Harmonic Distortion (THDi): <3%
• DC Injection Current: <0.5% of nominal current

Protection and Safety

• Integrated DC polarity reverse connection protection
• AC output overcurrent, over-voltage, and short circuit protection
• Thermal protection and ground fault monitoring
• Surge protection: Type II for both DC and AC sides
• Compliance with international safety and EMC standards like IEC/EN 62109-1 and IEC/EN 62109-2 guarantees reliable and safe operation

Environmental and General Specifications

• Operating Temperature Range: -40°C to +60°C, with derating above 45°C
• Permissible Humidity: 0-100%
• Maximum Operating Altitude: 2000m
• Noise Levels: <30 dB, ensuring quiet operation
• Ingress Protection Rating: IP65, making them robust against environmental challenges
• Overvoltage Categories: OVC II (DC) and OVC III (AC)
• Dimensions: 376×470×241.5 mm (excluding connectors and brackets)
• Cooling: Natural cooling to maintain optimal operating temperatures
• Warranty: Five to ten years, depending on the installation site and adherence to the warranty policy

Additional Features

• Diverse monitoring modes including GPRS, WIFI, Bluetooth, 4G, and optional LAN connectivity
• Communication Interfaces: RS485, RS232, and CAN, allowing seamless integration with existing systems

Applications

These inverters are ideally suited for residential, commercial, and industrial applications. By harnessing advanced technology and flexible configurations, Deye ensures a robust and future-proof investment in renewable energy. Whether for new installations or retrofitting existing solar systems, the Deye Single Phase Hybrid Inverter series offers a comprehensive, user-friendly, and highly efficient solution to meet the growing demands of the renewable energy sector.
