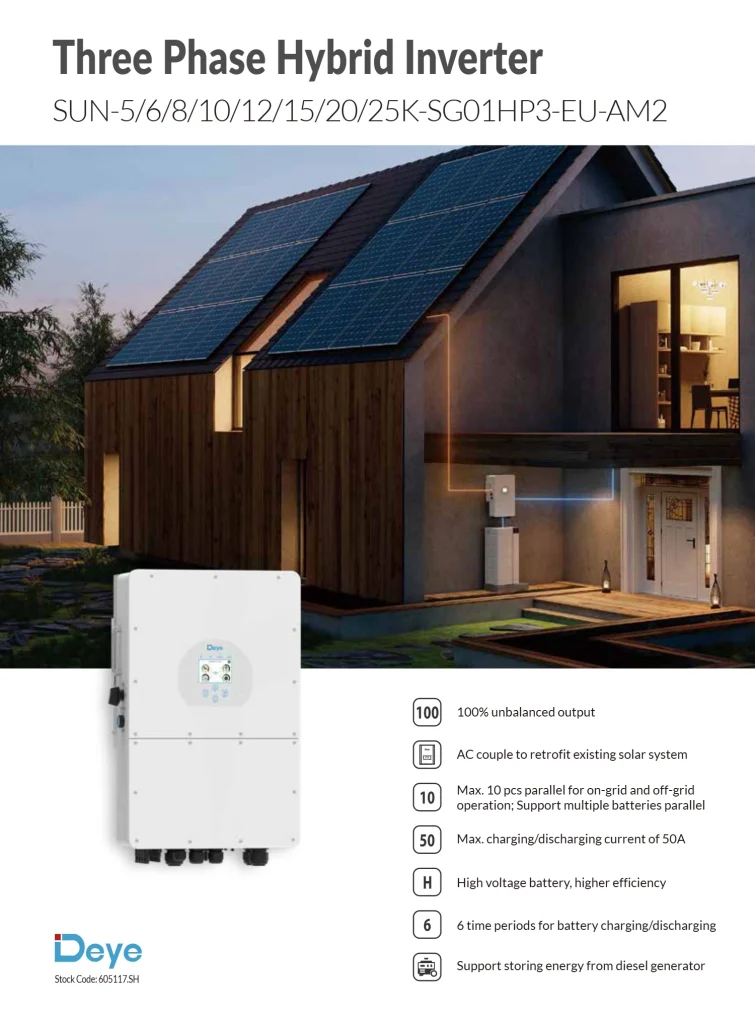

Three Phase Hybrid Inverter | 5-25kW | 2 MPPT | HV Battery Supported

Key Features

1. High Charging/Discharging Efficiency:
   • The Deye SUN series inverters boast a maximum charging/discharging current of 50A, allowing for rapid and efficient energy storage and retrieval. This feature supports users in harnessing the maximum benefit from their solar energy systems by effectively managing power storage.
2. Diesel Generator Support:
   • Another standout capability is the support for storing energy from diesel generators. This feature provides a versatile option for backup power, ensuring that excess energy generated from diesel can be effectively saved and managed.
3. Parallel Operation:
   • The inverters support parallel operations, enabling the connection of up to 10 units. This scalability is crucial for expanding power systems in both on-grid and off-grid applications, catering to growing energy demands.
4. Optimal Battery Compatibility:
   • Engineered for high voltage lithium-ion batteries, the Deye SUN inverters support a voltage range of 160-700V. This broad compatibility range ensures higher efficiency and allows the system to adapt to various battery specifications.
5. AC Coupling for Retrofit Applications:
   • Designed with flexibility in mind, these inverters can be AC coupled to retrofit existing solar systems. This capability provides a seamless upgrade path for systems looking to enhance their solar power setups with hybrid inverter technology.
6. Advanced Energy Management:
   • The inverter series comes with the capability to set up to 6 different time periods for battery charging and discharging. This advanced feature allows for optimal energy usage based on the specific demands and availability of power, providing cost savings and efficiency.

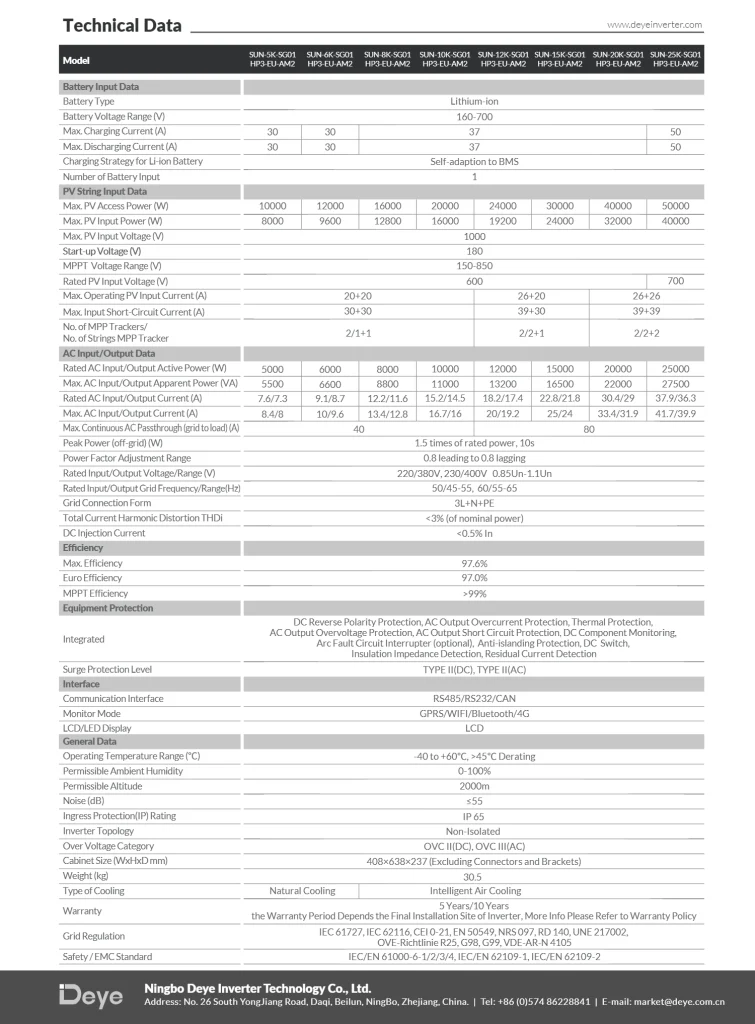

Technical Highlights

Battery Input:

• Type: Lithium-ion
• Voltage Range: 160-700V
• Max. Charging/Discharging Current: 50A

PV String Input:

• Max. PV Input Power: Up to 32500W
• Max. PV Input Voltage: 1000V
• MPPT Voltage Range: 150-850V

AC Input/Output:

• Rated Power: 5000W to 25000W
• Apparent Power: Up to 27500VA
• Voltage Range: 220/380V, 230/400V
• Frequency Range: 50/60Hz

Efficiency:

• Max. Efficiency: 97.6%
• Euro Efficiency: 97.0%
• MPPT Efficiency: >99%

Protection Features:

• Includes integrated protections such as DC polarity reverse connection, AC overcurrent, AC overvoltage, short circuit, thermal, and more.

Environmental and Safety Standards:

• Temperature Range: -40 to +60°C
• Ingress Protection Rating: IP65
• Altitude: 0-2000m

Compliance:

• Meets IEC/EN standards including 61000-6-1/2/3/4 and 62109-1/2.

Monitoring and Communication:

• Optional Monitoring: GPRS, WIFI, Bluetooth, 4G, LAN
• Interfaces: RS485, RS232, CAN

General Data:

• Dimensions: 408x638x237mm (excluding connectors and brackets)
• Weight: 30.5kg
• Cooling: Natural cooling/Intelligent air cooling
• Warranty: 5 Years standard, 10 Years optional based on installation site

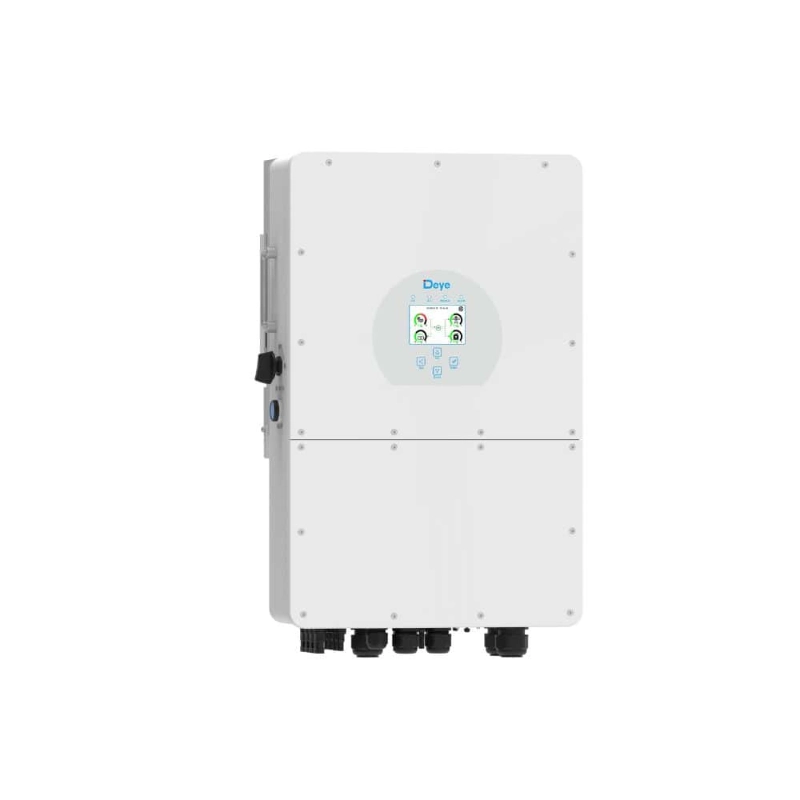

The Deye SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters are a robust, efficient, and versatile solution designed to meet the evolving demands of modern solar power systems.

The combination of advanced features, high efficiency, and scalability makes them an exceptional choice for maximizing solar energy utilization and enhancing overall system performance.
