    HomeProductsSolar InvertersDEYE SUN-60/70/75/80K-SG02HP3-EU-EM6 EU Version 60K-80KW High-voltage three-phase Hybrid Inverter

    Data Sheet

    Solar Inverters

    DEYE SUN-60/70/75/80K-SG02HP3-EU-EM6 EU Version 60K-80KW High-voltage three-phase Hybrid Inverter

    60kw
    70kw
    75kw
    80kw

    Description:



    • 100% unbalanced output
    • AC couple to retrofit existing solar system
    • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
    • Max. charging/discharging current of 160A
    • High voltage battery, higher efficiency
    • 6 time periods for battery charging/discharging
    • Support storing energy from diesel generator

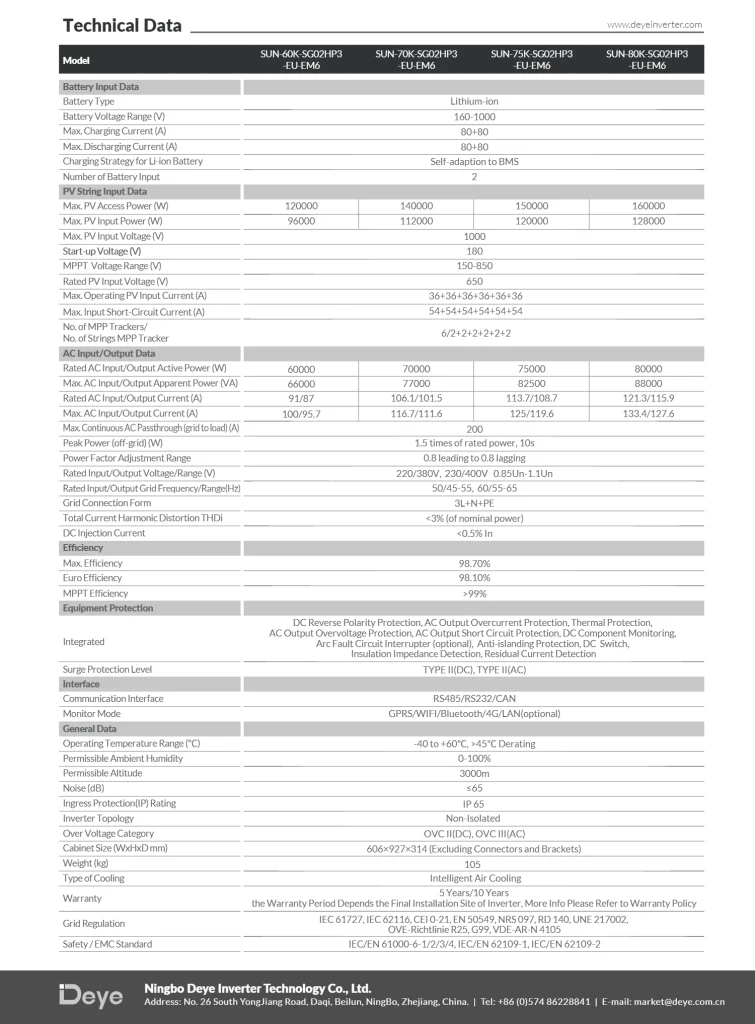

    Product parameters:

    Model

    SUN-60/70/75/80K-SG02HP3-EU-EM6

    MPPT Voltage Range (V)

    150-850

    No. of MPP Trackers/No. of Strings MPP Tracker

    6/2+2+2+2+2+2

    Rated Input/Output Voltage/Range (V)

    220/380V, 230/400V 0.85Un-1.1Un

    Rated Input/Output Grid Frequency/Range(Hz)

    50/45-55, 60/55-65

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Three Phase Hybrid Inverter | 60-80kW | 6 MPPT | HV Battery Supported

    production process

    Packaging And Delivery

    Products Center

    Tags:

    60kw 70kw 75kw 80kw High-voltage HV Battery Supported Hybrid Inverter Three Phase
