DEYE SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3 EU Version 7K-12KW Single Phase Low-voltage Hybrid Inverter
7.6KW
8KW
10kw
12kw
Description:
The Deye Single Phase Hybrid Inverter series, including models such as SUN-7.6/8K-SG02LP1-EU-AM2 and SUN-10/12K-SG02LP1-EU-AM3, is engineered to deliver exceptional performance and versatility, making it ideal for both residential and commercial solar energy applications. These inverters are designed to support both on-grid and off-grid functionalities, making them suitable for various installation scenarios, including new setups and retrofitting existing systems. With an array of advanced features and robust protections, the Deye Hybrid Inverter series ensures reliable and efficient energy management.

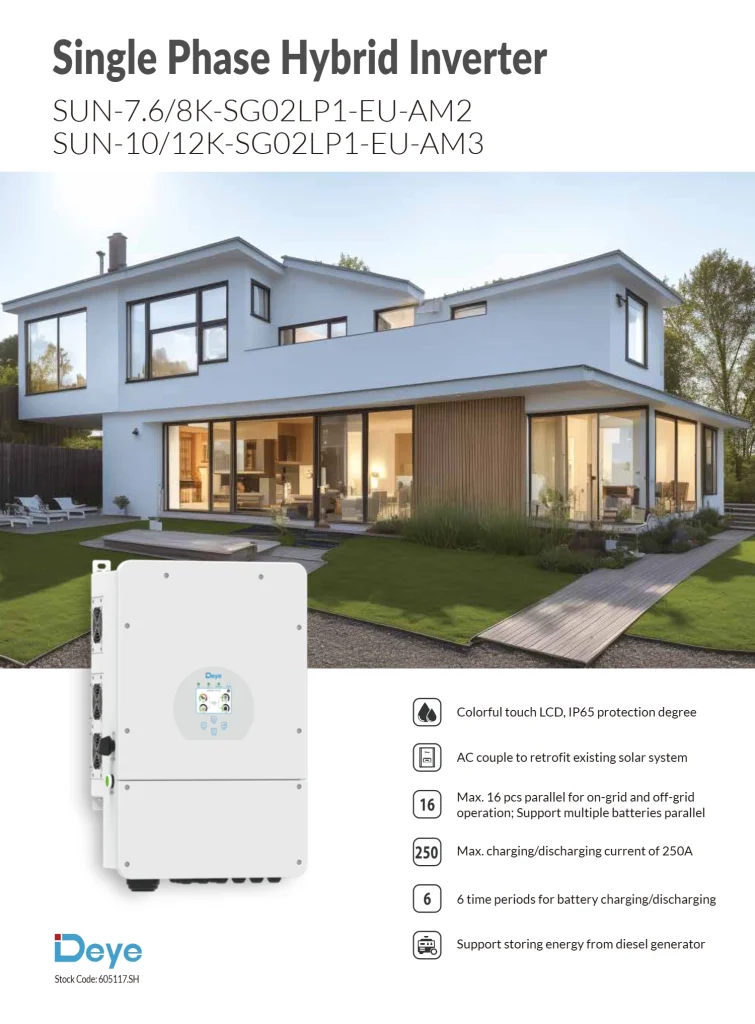

Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
The Deye Hybrid Inverter series can handle a maximum charging/discharging current of 250A, facilitating efficient energy transfer and rapid battery charging.
Diesel Generator Compatibility
These inverters are compatible with diesel generators, allowing for seamless integration and energy storage from multiple energy sources, offering greater flexibility and reliability.
Scalability
The series supports up to 16 units in parallel, making it highly scalable for both on-grid and off-grid operations. This makes it a suitable choice for expanding solar energy systems over time.
Battery Versatility
Compatible with both Lead-acid and Lithium-ion batteries, the inverter supports multiple batteries in parallel, providing flexibility in choosing and configuring the energy storage system.
Intelligent Energy Management
With the capability to set up to 6 different time periods for battery charging and discharging, the inverter helps in optimizing energy use according to varying demands and maximizing efficiency.
User-Friendly Interface

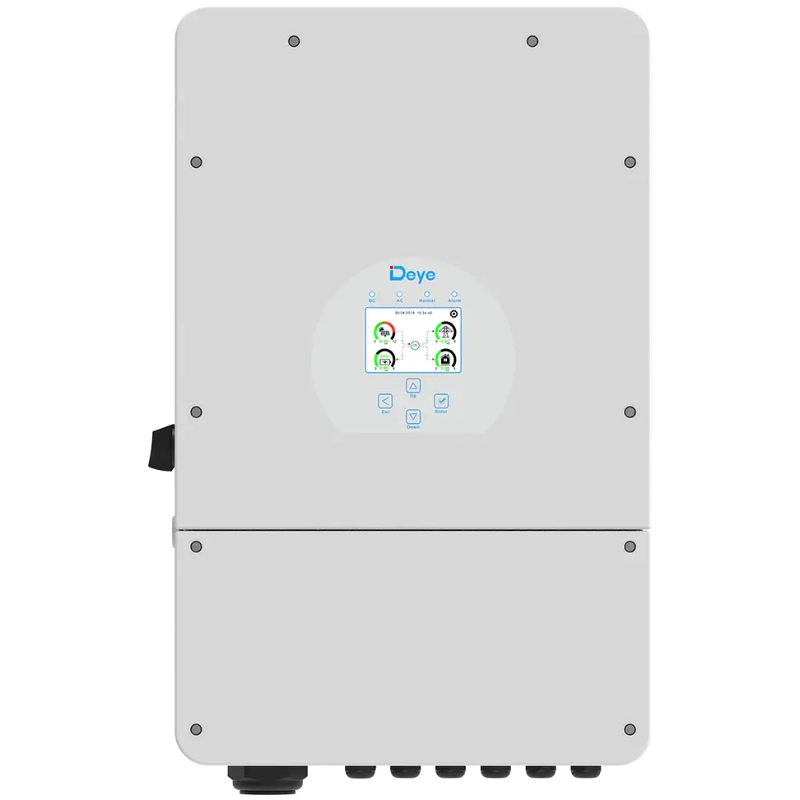

Featuring a colorful touch LCD screen, the inverter makes monitoring and controlling the system straightforward, accessible, and intuitive for users.
Robust Durability
Boasting an IP65 protection rating, the Deye Hybrid Inverter is designed to withstand harsh environmental conditions, ensuring longevity and reliable performance in diverse climates.

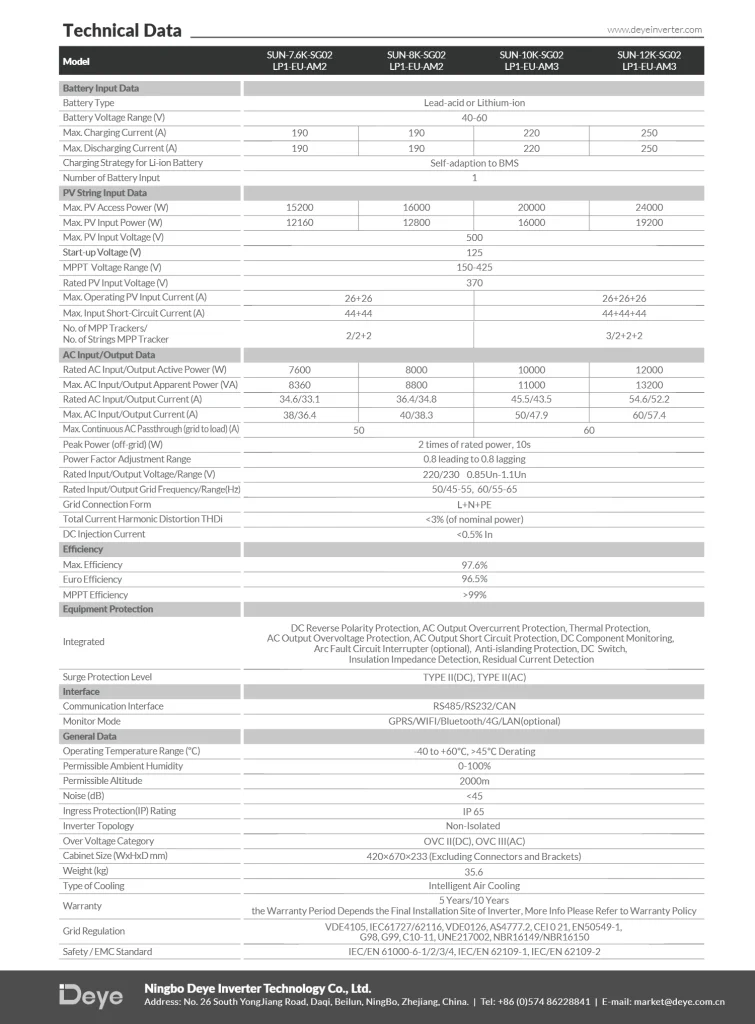

Technical Specifications
Battery Input Data
Battery Types: Lead-acid or Lithium-ion
Voltage Range: 40-60V
Max Charging/Discharging Current: 250A
Charging Strategy: Self-adapting to Battery Management System (BMS)
Number of Battery Inputs: 1
PV String Input Data
Max PV Input Power: Up to 15600W (depending on the model)
Max Continuous AC Passthrough (grid to load): 2 times of rated power for 10s
Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Efficiency and Protection
Max Efficiency: 97.6%
Euro Efficiency: 96.5%
MPPT Efficiency: >99%
Total Current Harmonic Distortion (THDi): <3% (of nominal power)
DC Injection Current: <0.5% In
Equipment Protection: Comprehensive protection features include DC polarity reverse connection protection, AC output overcurrent protection, overvoltage protection, short circuit protection, thermal protection, and more.
Environmental and Physical Data
Operating Temperature Range: -40 to +60 ℃ (Derating above 45 ℃)
Permissible Ambient Humidity: 0-100%
Permissible Altitude: 2000m
Noise Level: <45 dB
Ingress Protection (IP) Rating: IP65

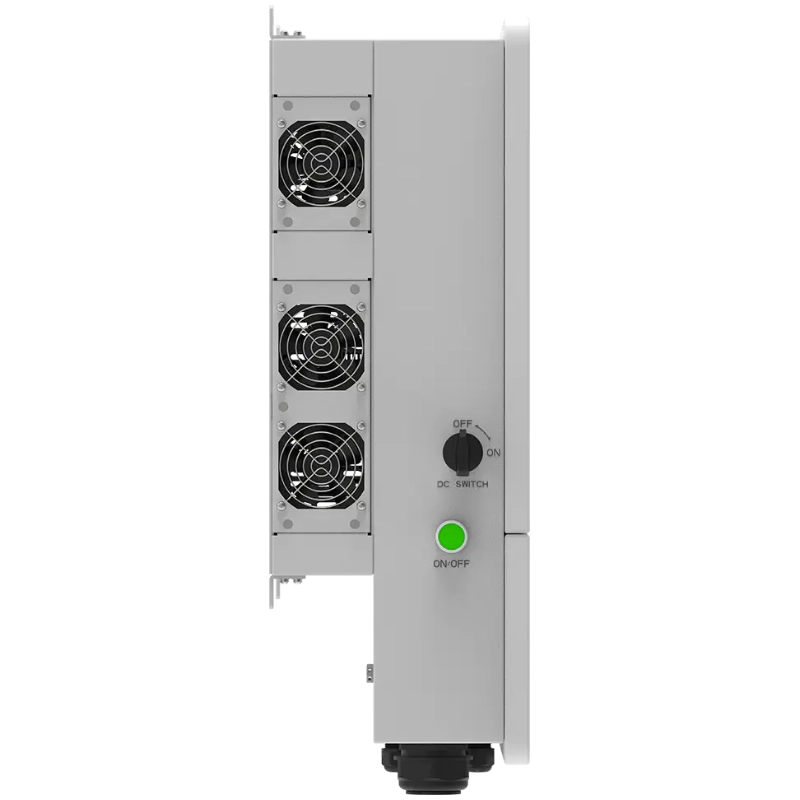

Cooling Method: Intelligent air cooling
Dimensions: 420×670×233 mm (excluding connectors and brackets)
Weight: 35.6 kg
Warranty: 5 Years/10 Years, depending on the final installation site of the inverter (for detailed information refer to the warranty policy)
The Deye Single Phase Hybrid Inverter series provides an innovative solution for managing solar energy efficiently and reliably, making it an excellent choice for various solar installation needs.addition to any residential or commercial solar installation.
