Home Products Solar Inverters DEYE SUN-8/10/12/15K-SG01HP3-US-AM2 US Version 8K-15KW Three-phase High-voltage Hybrid Inverter

Data Sheet

Solar Inverters

DEYE SUN-8/10/12/15K-SG01HP3-US-AM2 US Version 8K-15KW Three-phase High-voltage Hybrid Inverter

8KW
10KW
12KW
15KW

Description:

100% unbalanced output
AC couple to retroﬁt existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Max. charging/discharging current of 50A
High voltage battery, higher efﬁciency
6 time periods for battery charging/discharging
Support storing energy from diesel generator

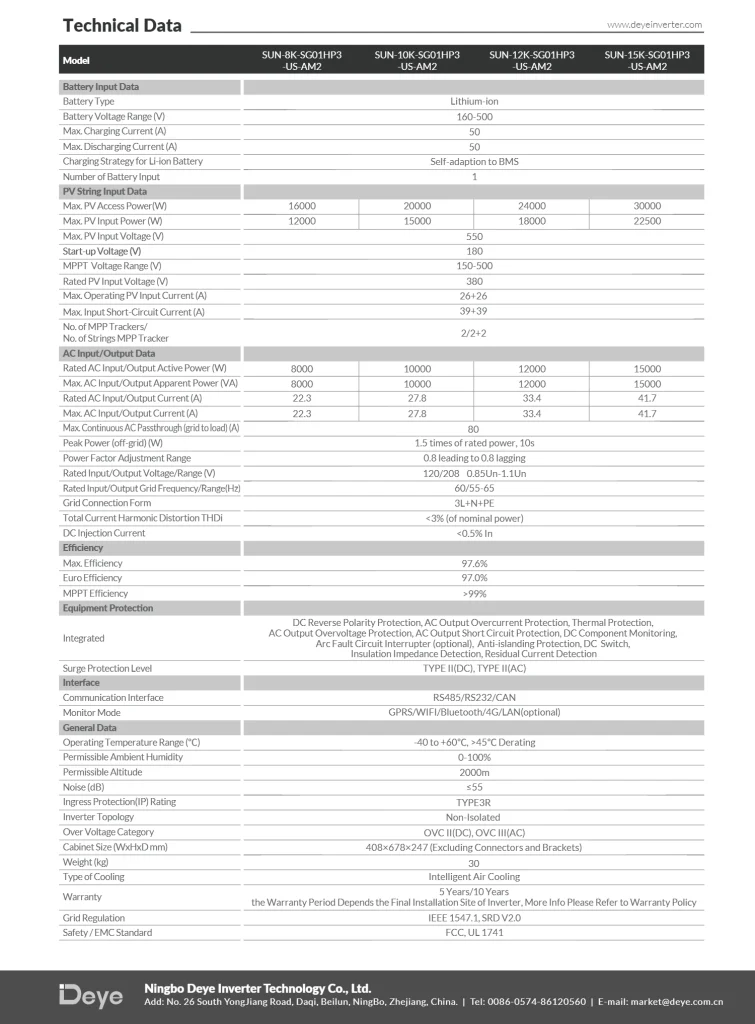

Product parameters:

Model	SUN-8/10/12/15K-SG01HP3-US-AM2
Battery Voltage Range (V)	160-500
MPPT Voltage Range (V)	150-500
No. of MPP Trackers/No. of Strings MPP Tracker	2/2+2
Rated Input/Output Voltage/Range (V)	120/208 0.85Un-1.1Un

Inquire Now

WhatsApp

Share:

description
production process
Packaging And Delivery

description

Three Phase Hybrid Inverter | 8-15kW | 2 MPPT | HV Battery Supported

The Deye Three Phase Hybrid Inverter series is designed for robust performance and efficient energy management in both residential and commercial settings. With a focus on high efficiency, seamless integration, and advanced protection features, these inverters offer a versatile solution for modern energy needs.

Description
Models
SUN-8K-SG01HP3-US-BM2
SUN-10K-SG01HP3-US-BM2
SUN-12K-SG01HP3-US-BM2
SUN-15K-SG01HP3-US-BM2
