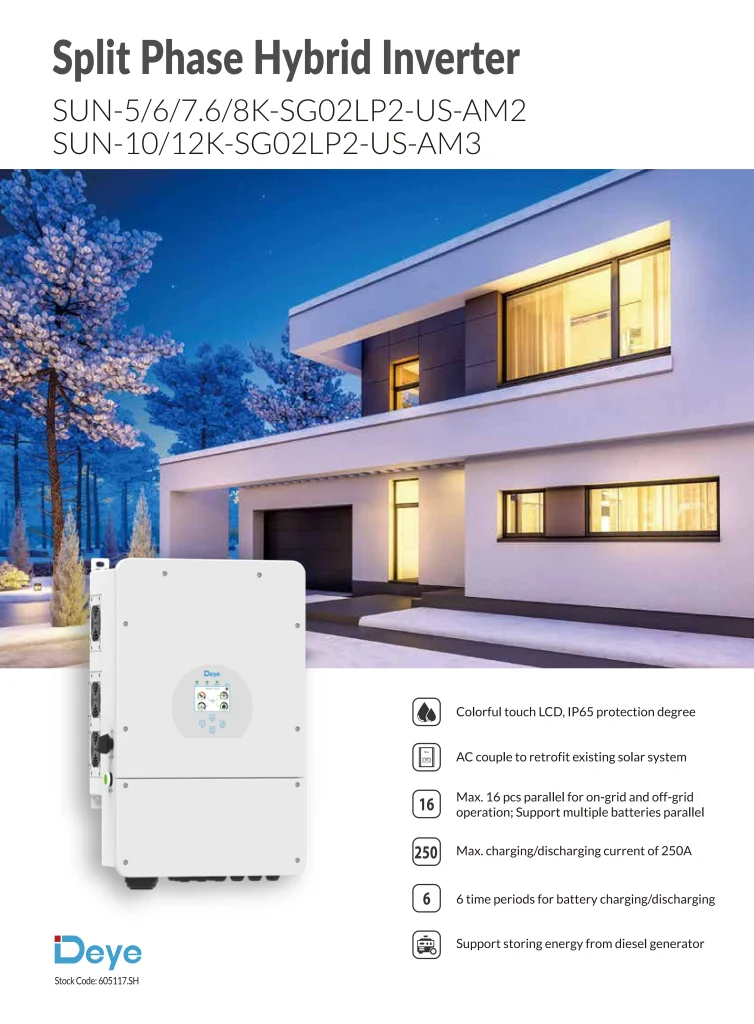

-Colorful touch LCD, IP65 protection degree
-AC couple to retrofit existing solar system
-Max. 16 pcs parallel for on-grid and off-grid
-operation; Support multiple batteries parallel
-Max. charging/discharging current of 250A
-6 time periods for battery charging/discharging
-Support storing energy from diesel generator

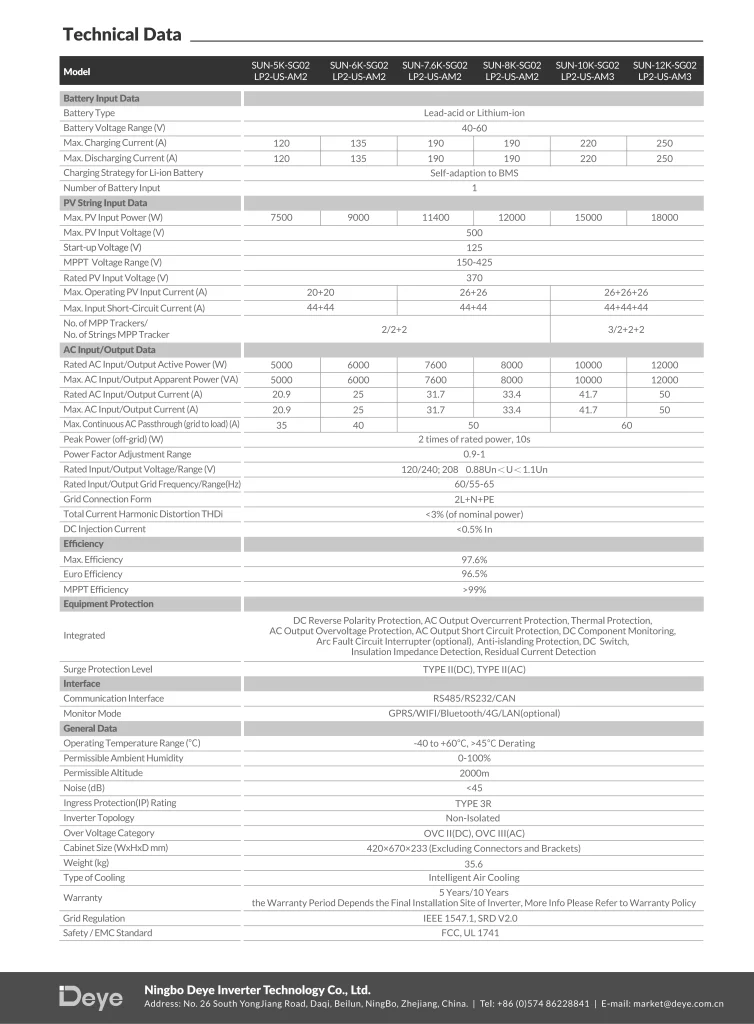

| Model | SUN-10K-SG02LP2-US-AM3 | SUN-12K-SG02LP2-US-AM3 |
|
MPPT Voltage Range (V) |
150-425 |
|
|
Battery Voltage Range (V) |
40-60 | |
|
No. of MPP Trackers/ No. of Strings MPP Tracker |
3/2+2+2 |
|
|
Rated Input/Output Voltage/Range (V) |
120/240; 208 0.88Un＜U＜1.1Un |
|
description

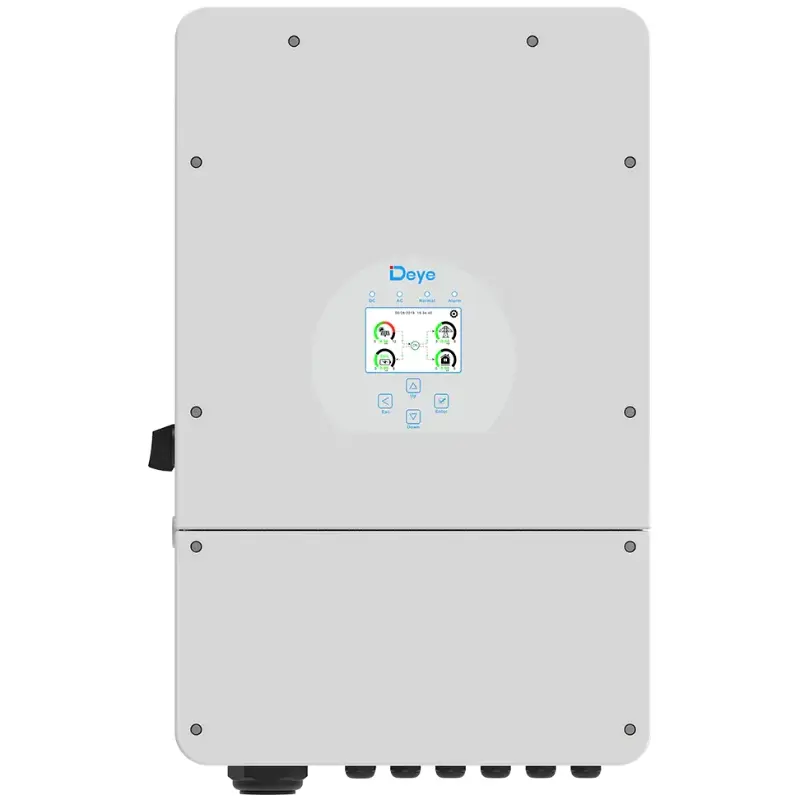

Single Phase Hybrid Inverter | 5-12kW | 2 MPPT | LV Battery Supported
The 5kW/12kW US Standard Hybrid Solar Storage Inverter (110V/220V Split Phase) offers cutting-edge technology and unmatched performance for residential and commercial solar energy systems. Equipped with advanced MPPT technology delivering up to 99.9% efficiency, this inverter ensures maximum energy harvest and optimal solar power utilization. Its robust design features an IP65 protection rating, making it durable and weather-resistant for a variety of installations.
With built-in software and hardware security measures, it provides reliable and safe operation. Supporting seamless Li-ion battery BMS communication, this hybrid inverter includes a time-slot function to reduce energy costs by taking advantage of peak-valley pricing. Easy to install and user-friendly, the 10kW/12kW Hybrid Solar Storage Inverter is the ideal solution for efficient and cost-effective energy management.
production process

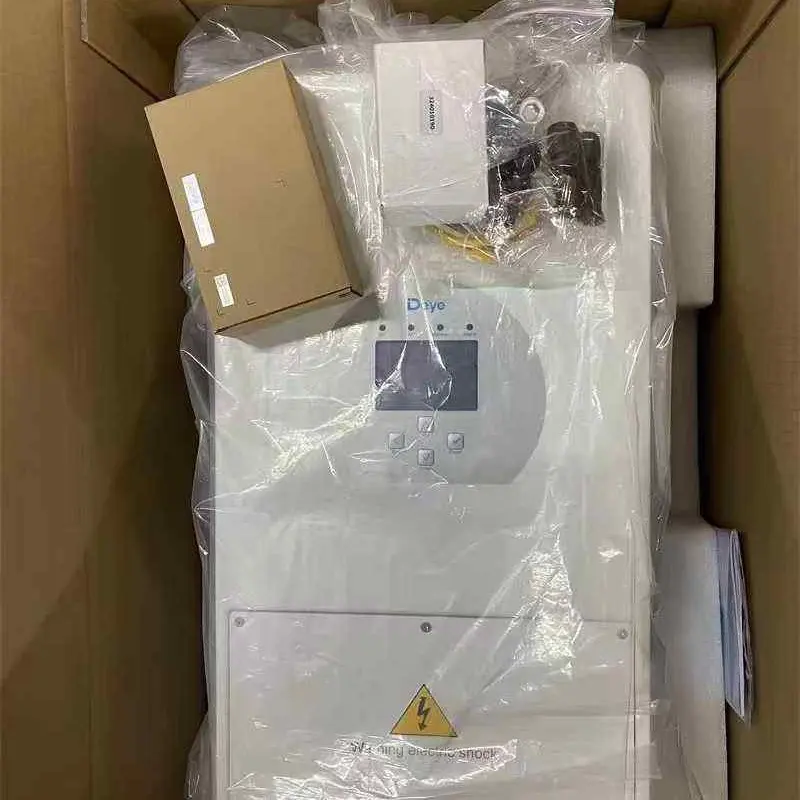

Packaging And Delivery
