    HomeProductsSolar InvertersGrowatt MAC 50-70KTL3-X LV/MV High-voltage Three-Phase On-grid inverter

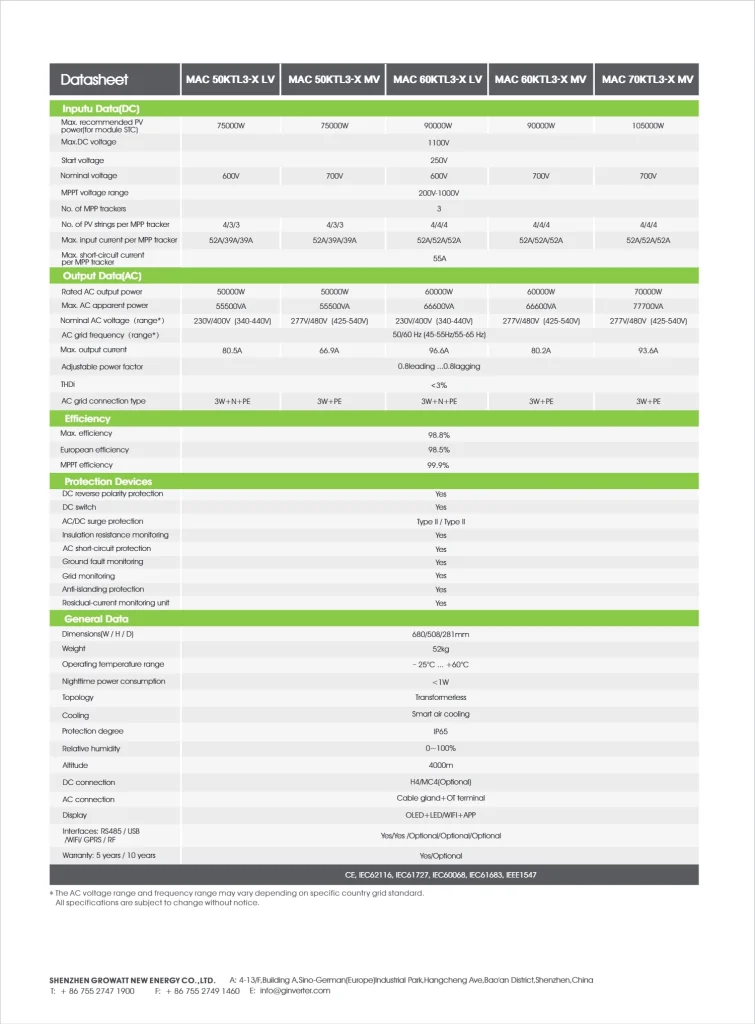

    Data Sheet

    Solar Inverters

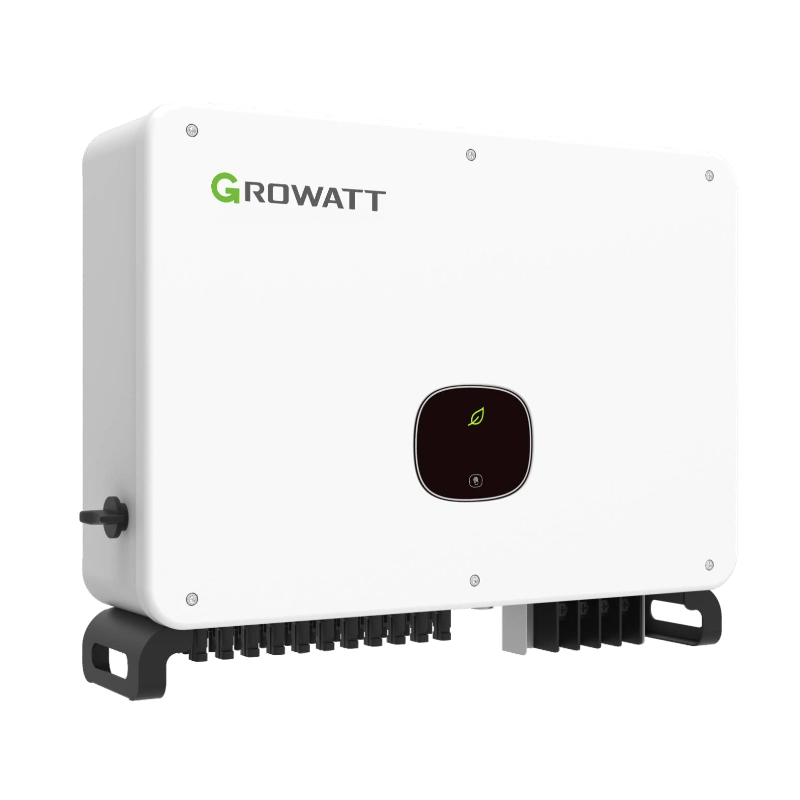

    Growatt MAC 50-70KTL3-X LV/MV High-voltage Three-Phase On-grid inverter

    50kw
    60kw
    70kw

    Description:

    • 3 MPPTs
    • Smart diagnosis
    • High efficiency up to 98.8%
    • OLED display and touch button
    • AC&DC type II SPD

    Product parameters:

    Model

    MAC 50-70KTL3-X LV/MV

    MPPT voltage range

    200V-1000V

    No. of MPP trackers/No. of PV strings per MPP tracker

    3/4/3/3    3/4/3/3    3/4/4/4    3/4/4/4    3/4/4/4

    Nominal AC voltage（range*）

    230V/480V

    AC grid frequency（range*）

    50/60 Hz (45-55Hz/55-65 Hz)

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

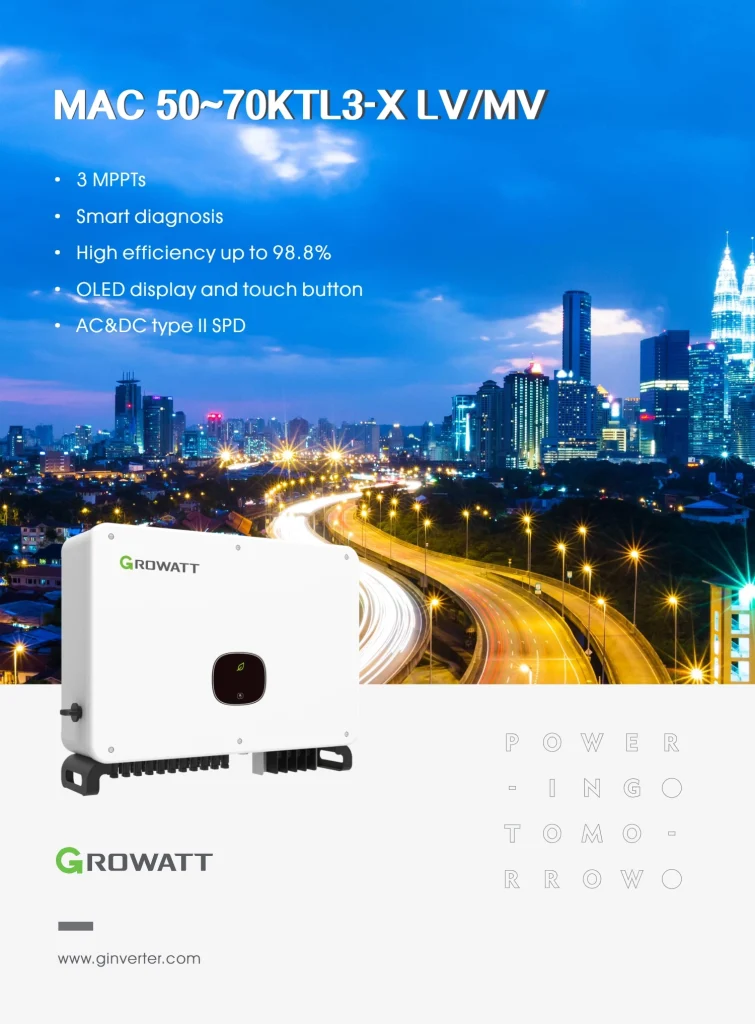

    Three Phase On-grid inverter | 50~70kW | 3 MPPTs

    High Yields

    – 3 MPPTs

    – Max. efficiency up to 98.8%

    – Compatible with high power modules

    Safety and Reliability

    – Type II SPD on DC and AC sides

    – IP65 protection degree

    Smart O&M

    – Local APP configuration

    – Online smart service

    production process

    Packaging And Delivery
