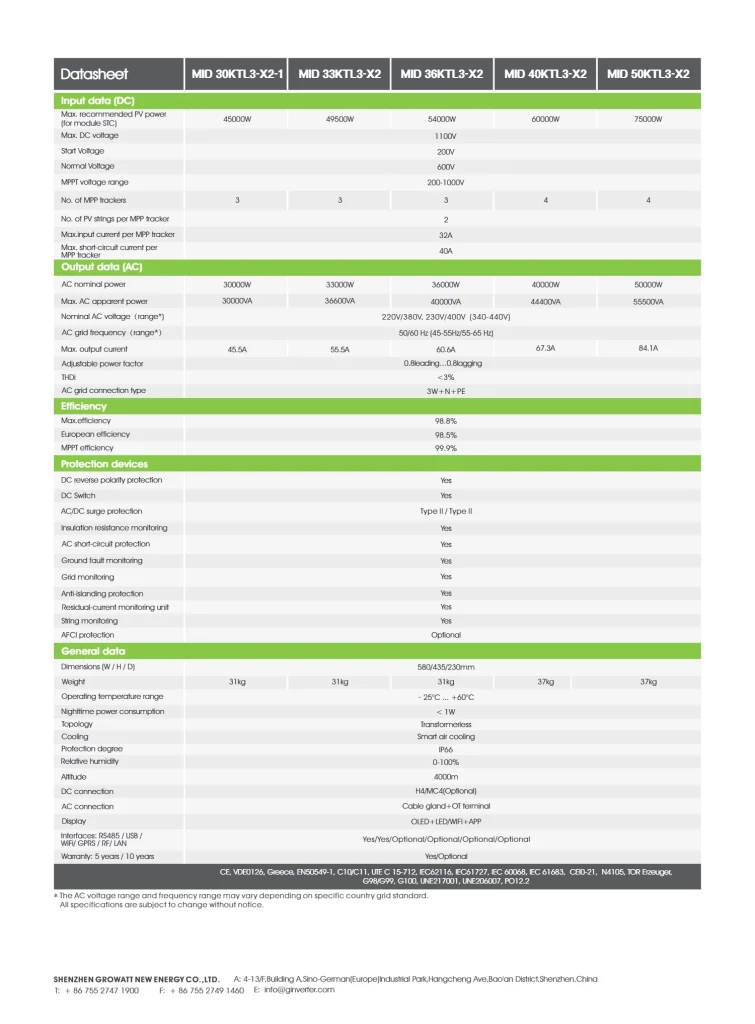

    Data Sheet

    Solar Inverters

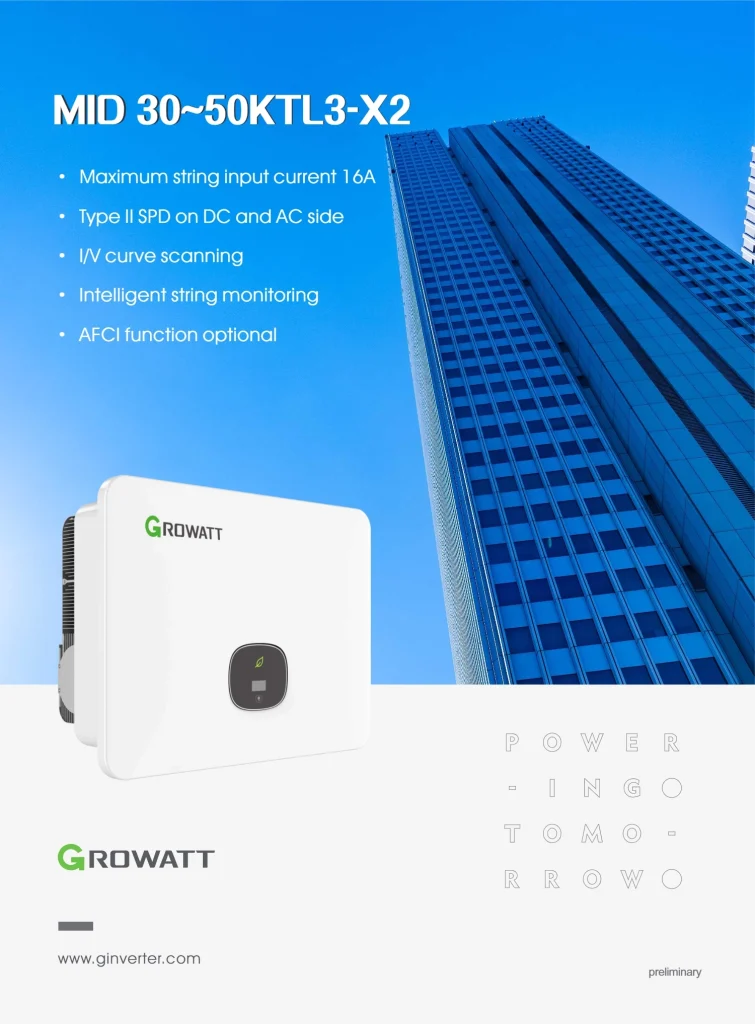

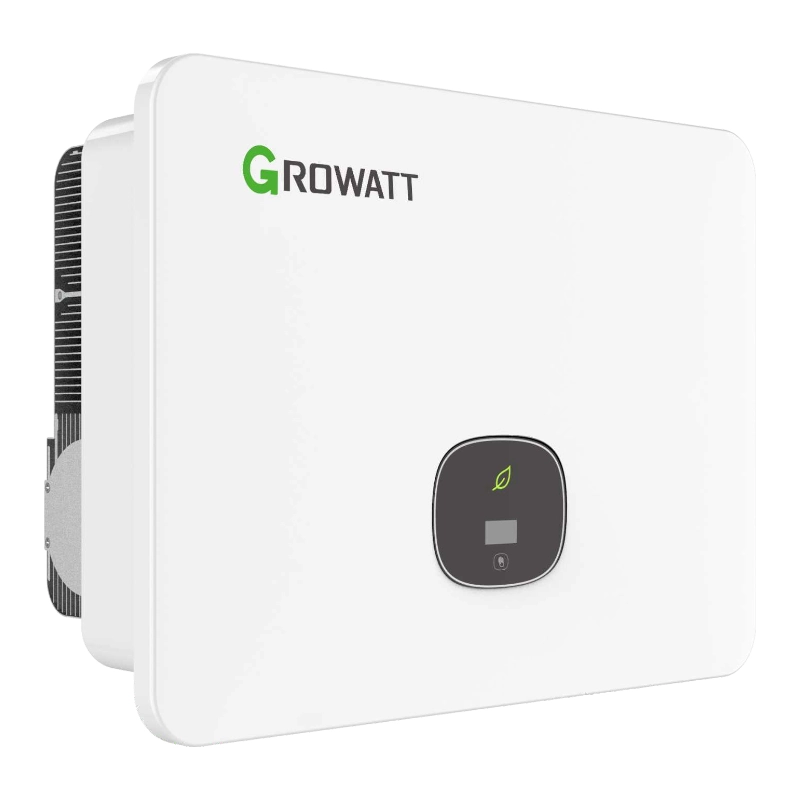

    Growatt MID 30-50KTL3-X2 High-voltage Three-Phase On-grid inverter

    30kw
    33kw
    36kw
    40kw
    50kw

    Description:

    • Maximum string input current 16A
    • Type II SPD on DC and AC side
    • I/V curve scanning
    • Intelligent string monitoring
    • AFCI function ready

    Product parameters:

    Model

    MID 30-50KTL3-X2

    MPPT voltage range

    200V-1000V

    No. of MPP trackers/No. of PV strings per MPP tracker

    2/2/3      3/2      3/2      4/2      4/2

    Nominal AC voltage（range*）

    220V/380V, 230V/400V (340-440V)

    AC grid frequency（range*）

    50/60 Hz (45-55Hz/55-65 Hz)

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Three Phase On-grid inverter | 30~50kW | 3/4 MPPTs

    High Yields

    – Max effiecency up to 98.8%

    – Max. string current up to 16A

    – 3/4MPPTs

    Safety and Reliability

    – AFCI protection optional

    – Type II SPD on DC and AC sides

    – IP 66 protection degree

    Online Smart Service

    – Intelligent string monitoring

    – Online operation & maintenance
