    Data Sheet

    Solar Inverters

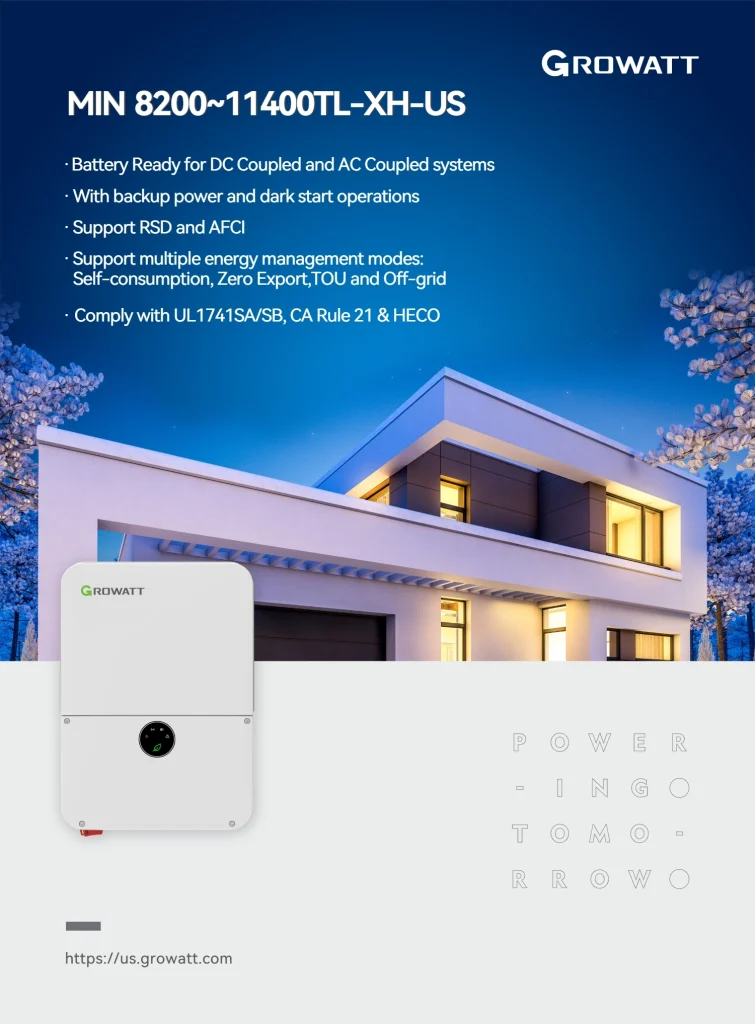

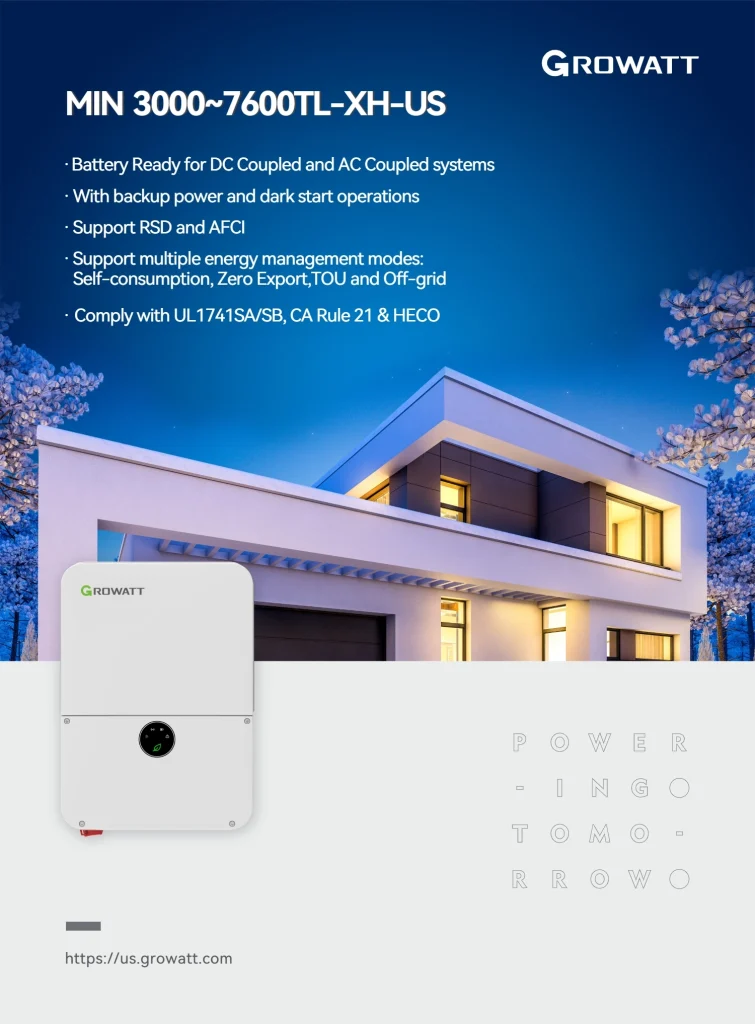

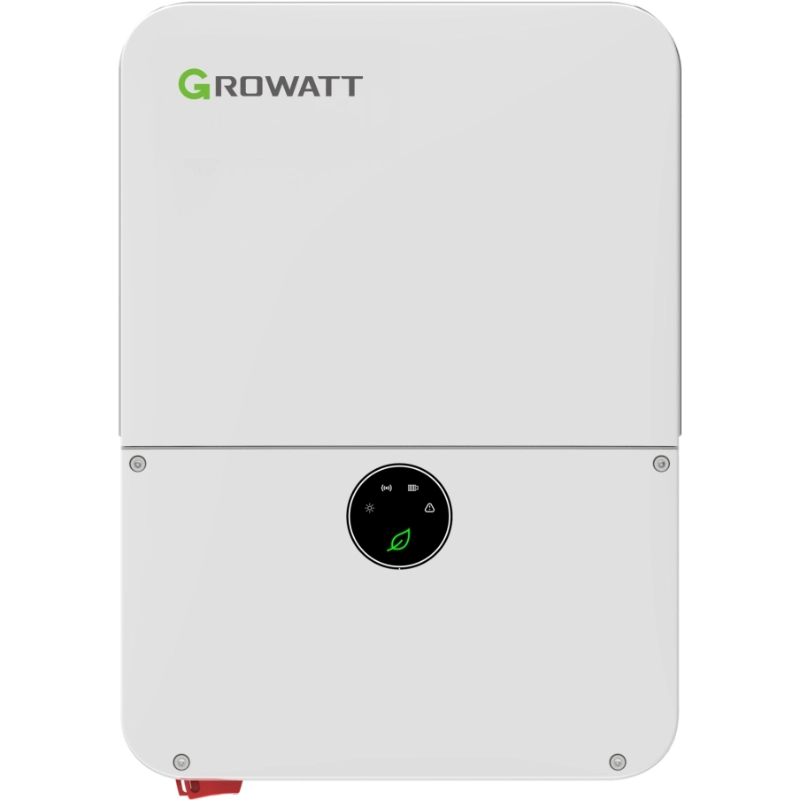

    Growatt MIN 3000-11400TL-XH-US High-voltage split-phase Hybrid inverter

    3kw
    3.6kw
    5kw
    6kw
    7.6kw
    8.2kw
    9kw
    10kw
    11.4kw

    Description:

    • Battery Ready for DC Coupled and AC Coupled systems
    • With backup power and dark start operations
    • Support RSD and AFCI
    • Support multiple energy management modes:
    • Self-consumption, Zero Export,TOU and Off-grid
    • Comply with UL1741SA/SB, CA Rule 21 & HECO

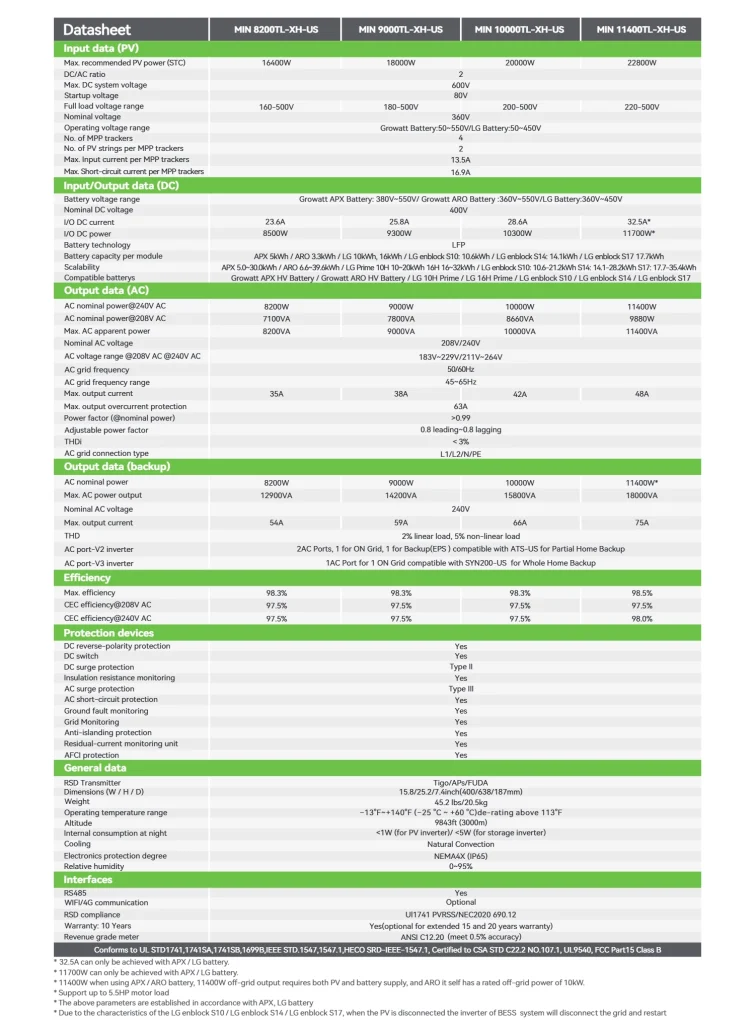

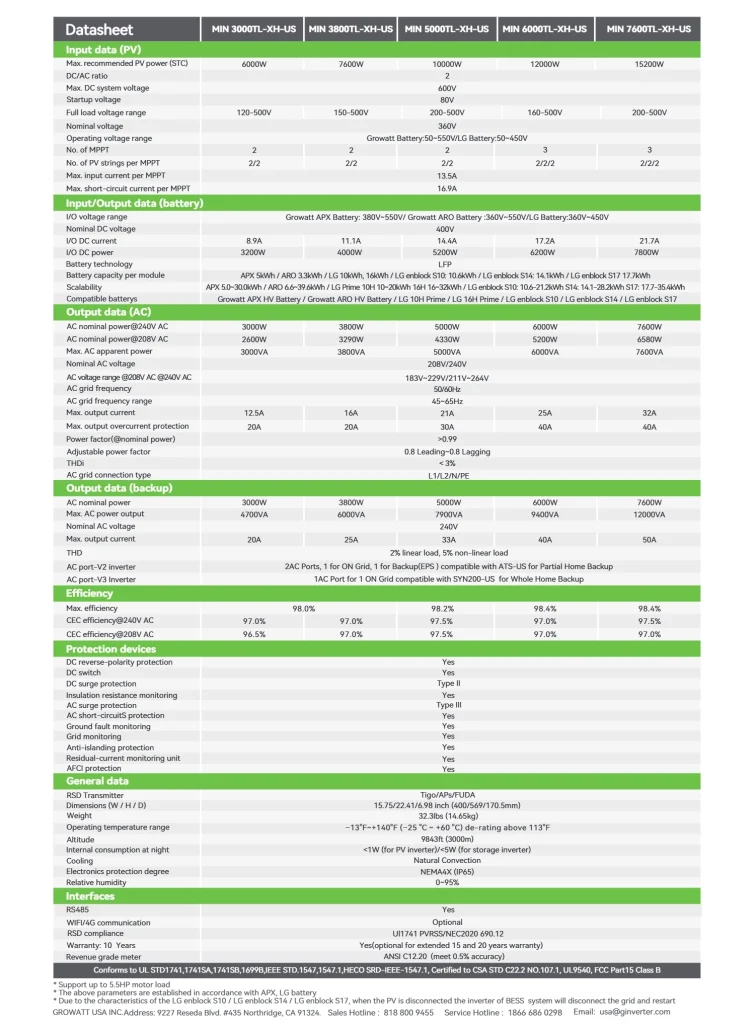

    Product parameters:

    Model

    MIN 3000-11400TL-XH-US

    Nominal AC voltage

    208V/240V

    AC grid frequency

    50/60Hz

    No. of MPPT/No. of PV strings per MPPT

    2/2/2      2/2/2      2/2/2      3/2/2/2      3/2/2/2

    Max. DC system voltage

    600V

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Split-phase Hybrid inverter | 3~11.4 kW | HV Battery Supported

    Leading Functions

    – Whole home backup

    – Dark start operation

    – Support RSD, AFCI and RGM meter

    High Yields

    – DC/AC Ratio up to 2.0

    – MPP trackers up to 4

    – Max. efficiency 98.5%

    System Compatibility

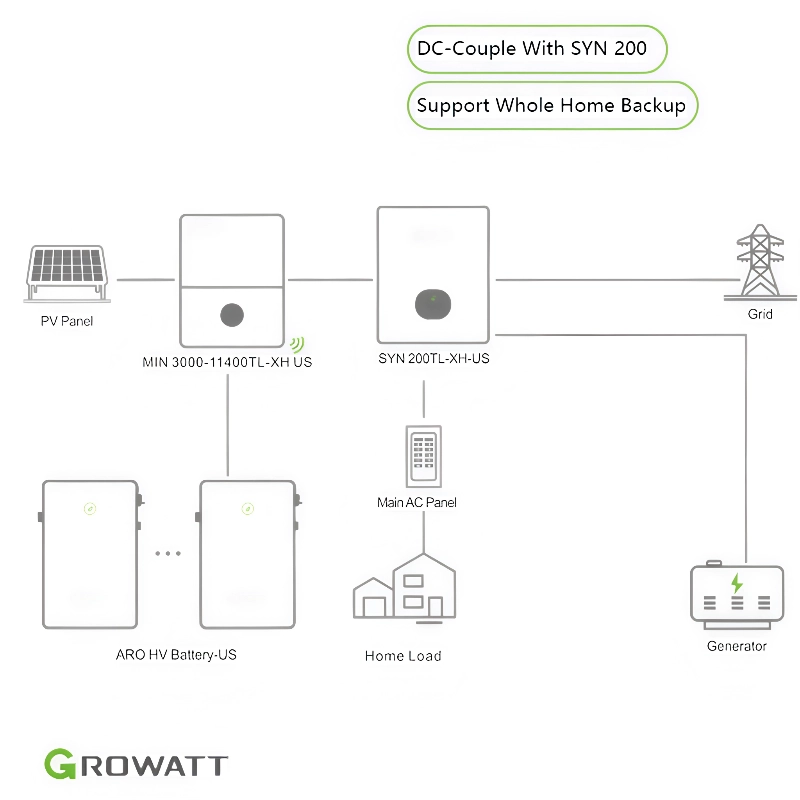

    – DC Coupled and AC Coupled systems

    – Self-consumption, Zero Export, ToU and Off-grid

    – UL1741SA/SB, CA Rule 21 & HECO

    production process

    Packaging And Delivery
