    HomeProductsSolar InvertersGrowatt MIN 7000~10000 TL-X2 Low-voltage Single-Phase On-grid inverter

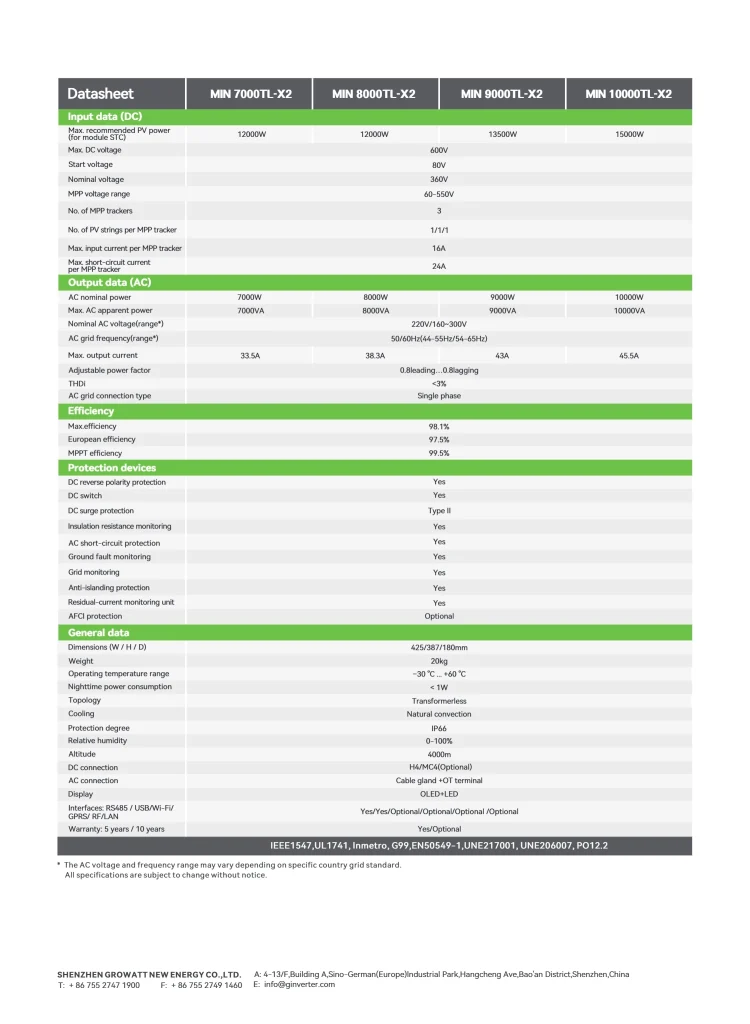

    Data Sheet

    Solar Inverters

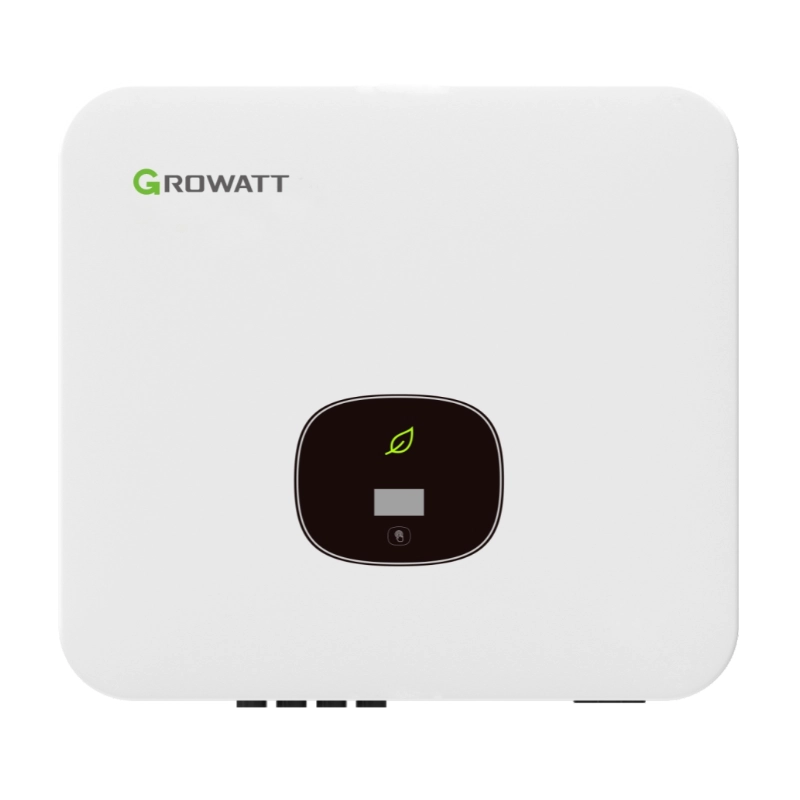

    Growatt MIN 7000~10000 TL-X2 Low-voltage Single-Phase On-grid inverter

    7kw
    8kw
    9kw
    10kw

    Description:

    • Maximum efficiency 98.1%
    • 3 MPP trackers
    • Type II SPD on DC side
    • Supports export control
    • String current up to 16A

    Product parameters:

    Model

    MIN 7000~10000 TL-X2

    MPP voltage range

    60-550V

    No. of MPP trackers/No. of PV strings per MPP tracker

    3/1/1/1

    Nominal AC voltage(range*)

    220V/160~300V

    AC grid frequency(range*)

    50/60Hz(44-55Hz/54-65Hz)

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Single-Phase On-grid inverter | 7~10 kW | LV Battery Supported

    Safety and Reliability

    – Type II SPD on DC side

    – Support export limitation

    – AFCI function optional

    High Yields

    – Max. efficiency 98.1%

    – Dual/Three MPPTs

    – Wide MPPT voltage range

    User Friendly

    – Touch key and OLED display

    – Compact design for one person installation

    production process

    Packaging And Delivery
