    HomeProductsSolar InvertersGrowatt MOD-3000~9000TL3-X High-voltage Three-Phase On-grid inverter

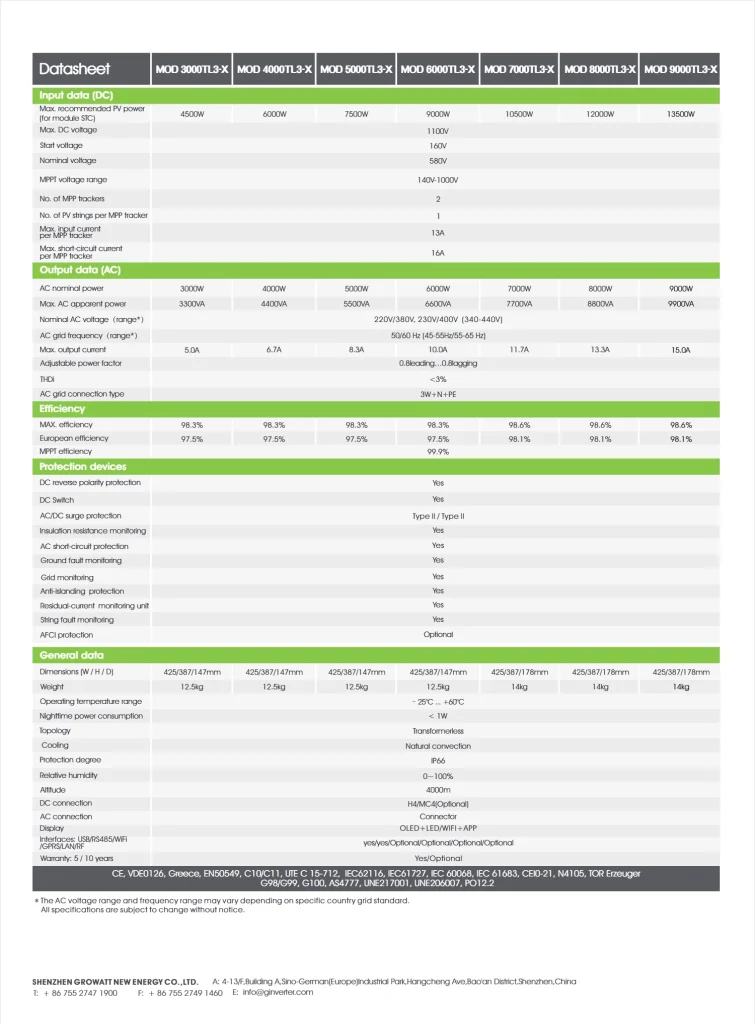

    Data Sheet

    Solar Inverters

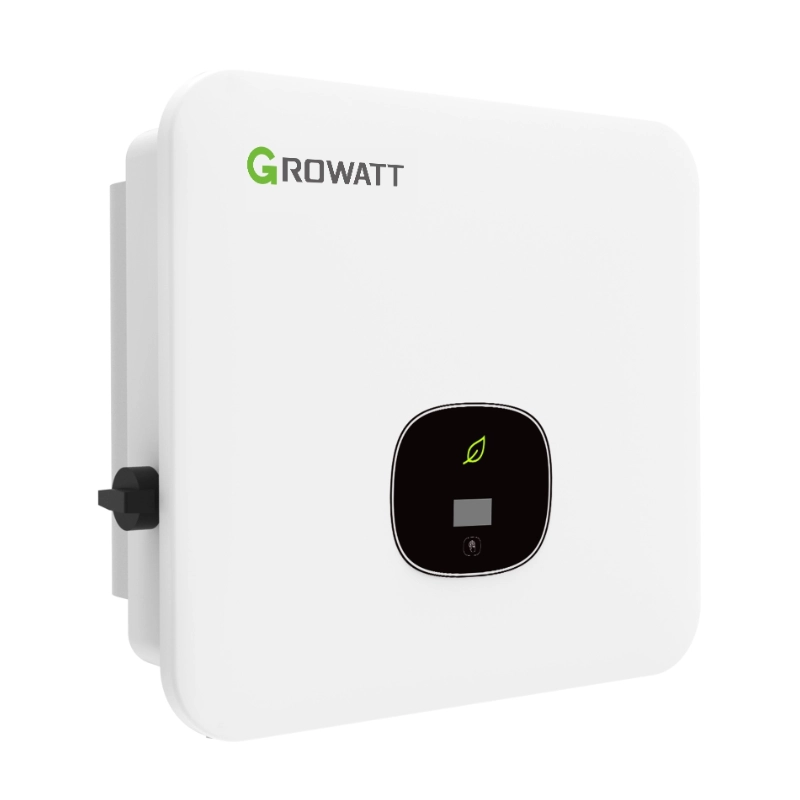

    Growatt MOD-3000~9000TL3-X High-voltage Three-Phase On-grid inverter

    7kw
    8kw
    9kw
    10kw
    3kw
    4kw
    5kw
    6kw

    Description:

    • Max. efficiency 98.6%
    •  OLED and Touch button
    • Type II SPD on DC and AC side
    • String Monitoring
    • AFCI optional

    Product parameters:

    Model

    MOD-3000~9000TL3-X

    MPPT voltage range

    140V-1000V

    No. of MPP trackers/No. of PV strings per MPP tracker

    2/1

    Nominal AC voltage（range*）

    220V/380V, 230V/400V (340-440V)

    AC grid frequency（range*）

    50/60 Hz (45-55Hz/55-65 Hz)

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Three Phase On-grid inverter | 3~9 kW | 2 MPPTs

    Easy and User Friendly

    – Future proof Battery Ready

    – Touch key and OLED display

    High Yields

    – Max. efficiency 98.6%

    – Dual MPPTs

    – DC/AC up to 2.0

    Safety and Reliability

    – Type II SPD on AC&DC side

    – Support export limitation

    – AFCI function optional

    production process

    Packaging And Delivery
