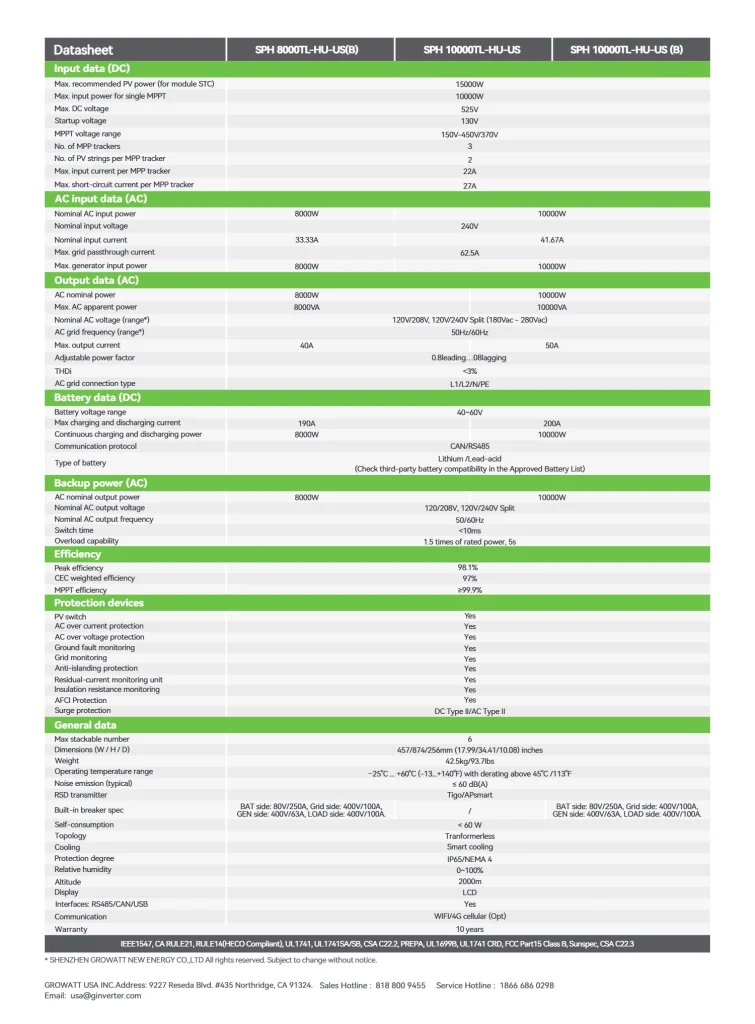

    Data Sheet

    Solar Inverters

    Growatt SPH 8000-10000TL-HU-US Low-voltage Split Phase Hybrid inverter

    8kw
    10kw

    Description:

    • UPS function, 10ms transition
    • 1.5DC/ACRatiowith3MPPTs
    • Up to 200A charging/discharging current
    • Support DC-coupled, AC-coupled, AC-retrofit applications
    • Type II Surge protection for DC and AC sides
    • Support charge from diesel generator
    • Support up to 6 units in parallel
    • Supportforma220Vor208Vthree-phasesystem

    Product parameters:

    Model

    SPH 8000-10000TL-HU-US

    Nominal AC voltage (range*)

    120V/208V, 120V/240V

    AC grid frequency (range*)

    50Hz/60Hz

    No. of MPP trackers/No. of PV strings per MPP tracker

    3/2

    MPPT voltage range

    150V-450V/370V

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Split-phase Hybrid inverter | 8~10 kW | LV Battery Supported

    Leading Functions

    – UPS function, 10ms transition

    – Scalable system available

    – Up to 200A charging/discharging current

    High Yields

    – DC/AC ratio up to 1.5

    – MPP trackers up to 3

    – Max.efficiency 97.5%

    System Compatibility

    – Support DC-coupled AC-coupled system

    – Support diesel and gas generator

    – Support lithium battery and lead-acid battery
