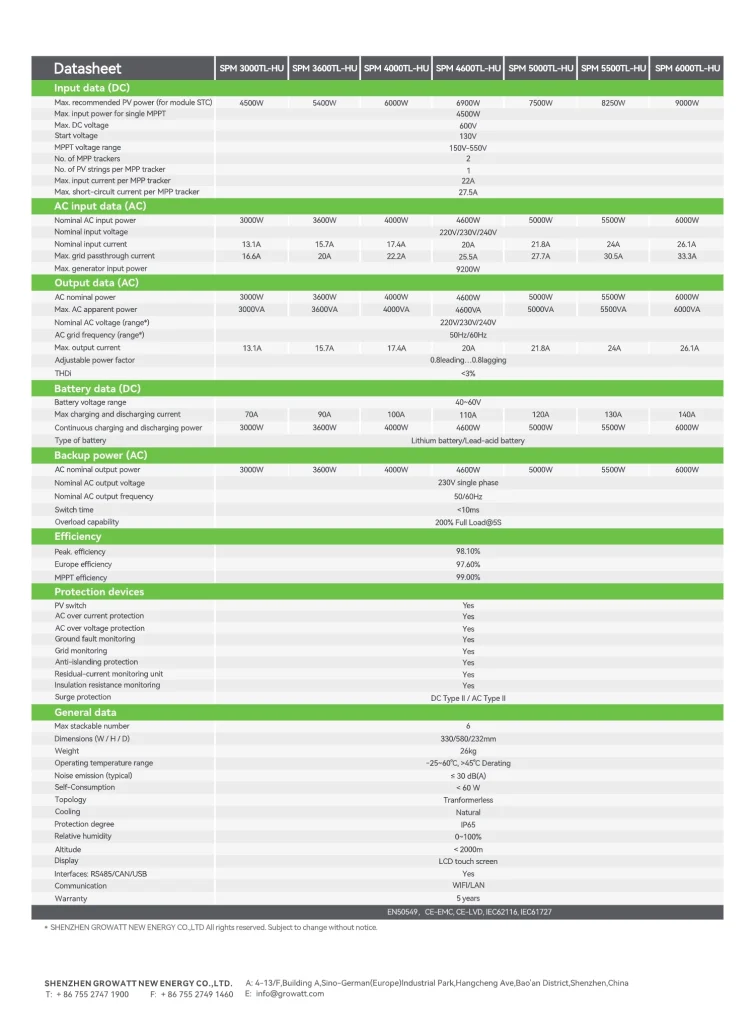

    Data Sheet

    Solar Inverters

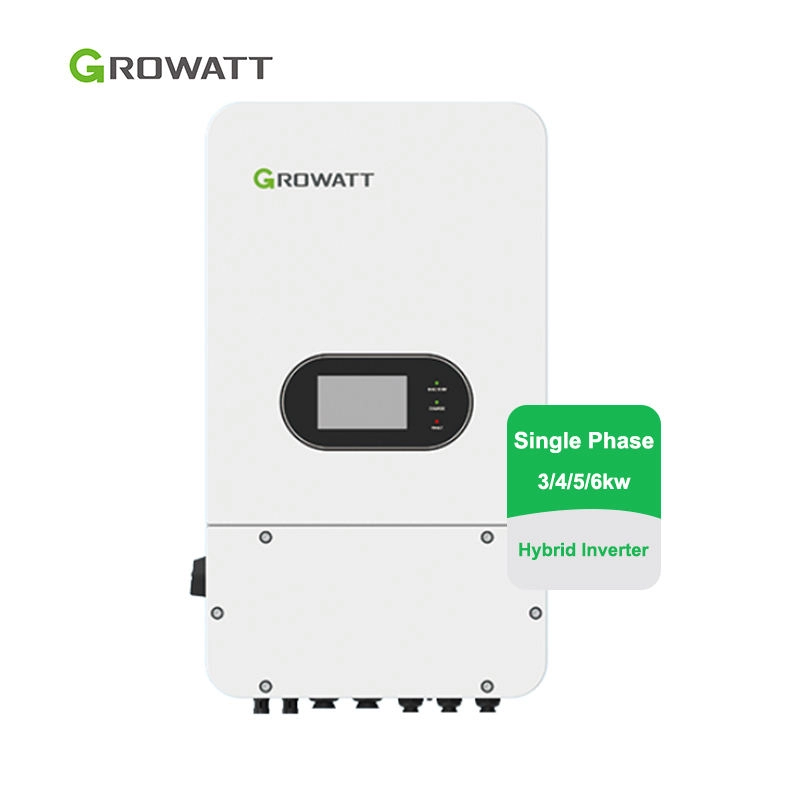

    Growatt SPM 3000-6000TL-HU Low-voltage Single Phase Hybrid inverter

    3kw
    3.6kw
    4kw
    4.6kw
    5kw
    5.5kw
    6kw

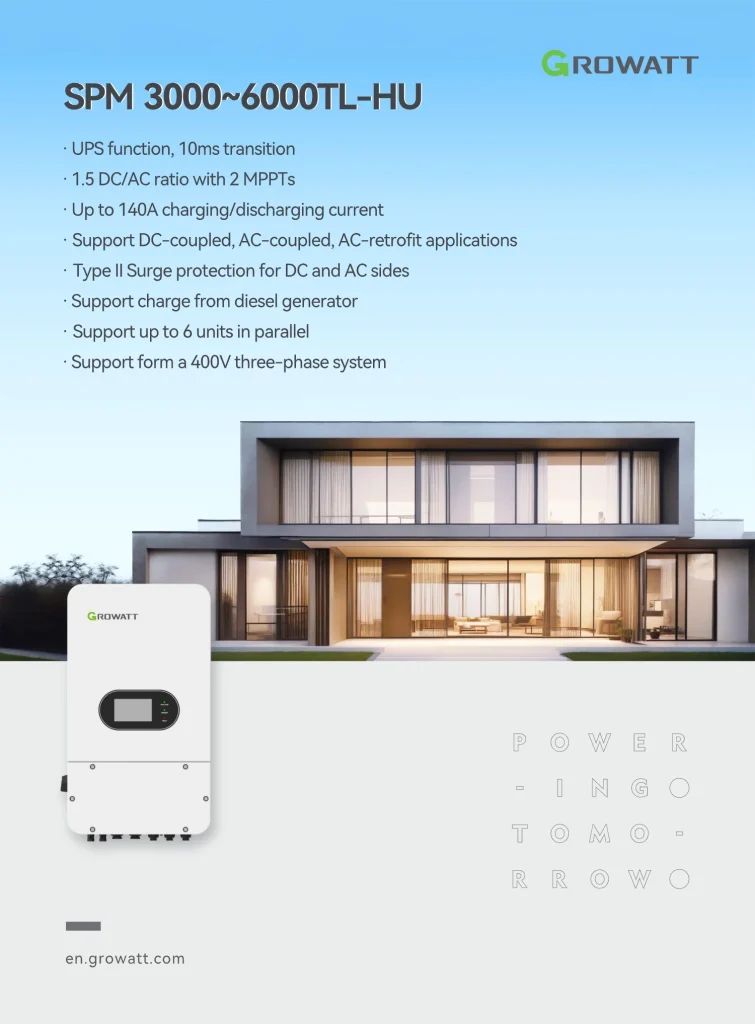

    Description:

    • UPS function, 10ms transition1
    • 5 DC/AC ratio with 2 MPPTS
    • Up to 140A charging/discharging current
    • Support DC-coupled,AC-coupled, AC-retrofit applications
    • Type ll Surge protection for DC and AC sides
    • Support charge from diesel generator
    • Support up to 6 units in parallel
    • Support form a 400V three-phase system

    Product parameters:

    Model

    SPM 3000-6000TL-HU

    MPPT voltage range

    150V-550V

    Nominal input voltage

    220V/230V/240V

    AC grid frequency (range*)

    50Hz/60Hz

    No. of MPP trackers/No. of PV strings per MPP tracker

    2/1

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Single Phase Hybrid inverter | 3~6 kW | LV Battery Supported

    Leading Functions

    – UPS function, 10ms transition

    – Scalable system available

    – Support smart load function

    High Yields

    – MPP trackers up to 2

    – Max.efficiency 98.1%

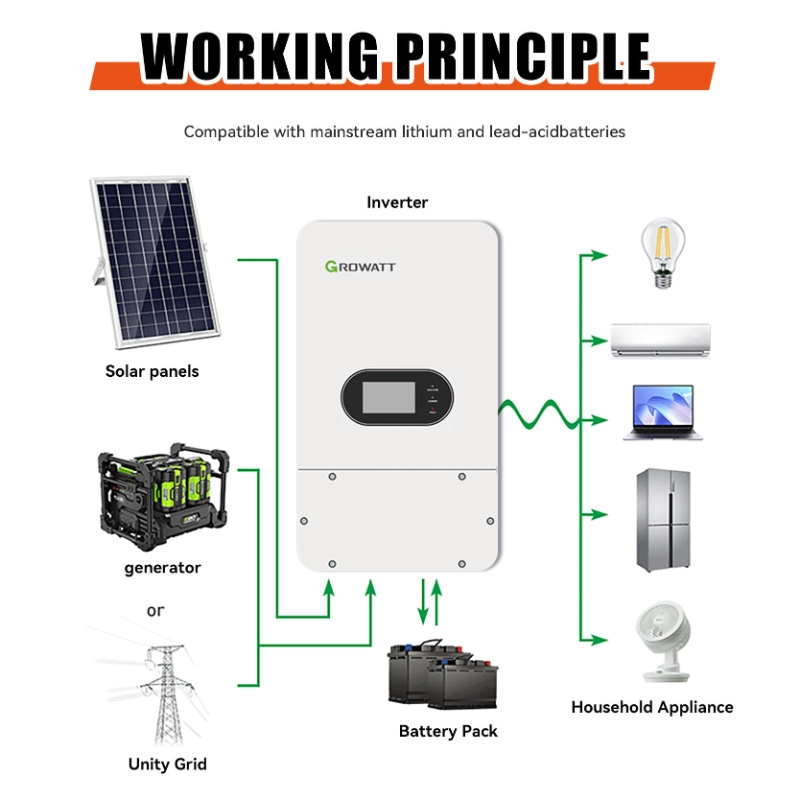

    System Compatibility

    – Support DC-coupled AC-coupled system

    – Support diesel and gas generator

    – Support lithium battery and lead-acid battery

    production process

    Packaging And Delivery

    Products Center

    Tags:

    3.6kw 3kw 4.6kw 4kw 5.5KW 6kw Hybrid Inverter Low-voltage LV Battery Supported single phase
