    HomeProductsSolar InvertersGrowatt SPM 8000~10000TL-HU Low-voltage Single Phase Hybrid inverter

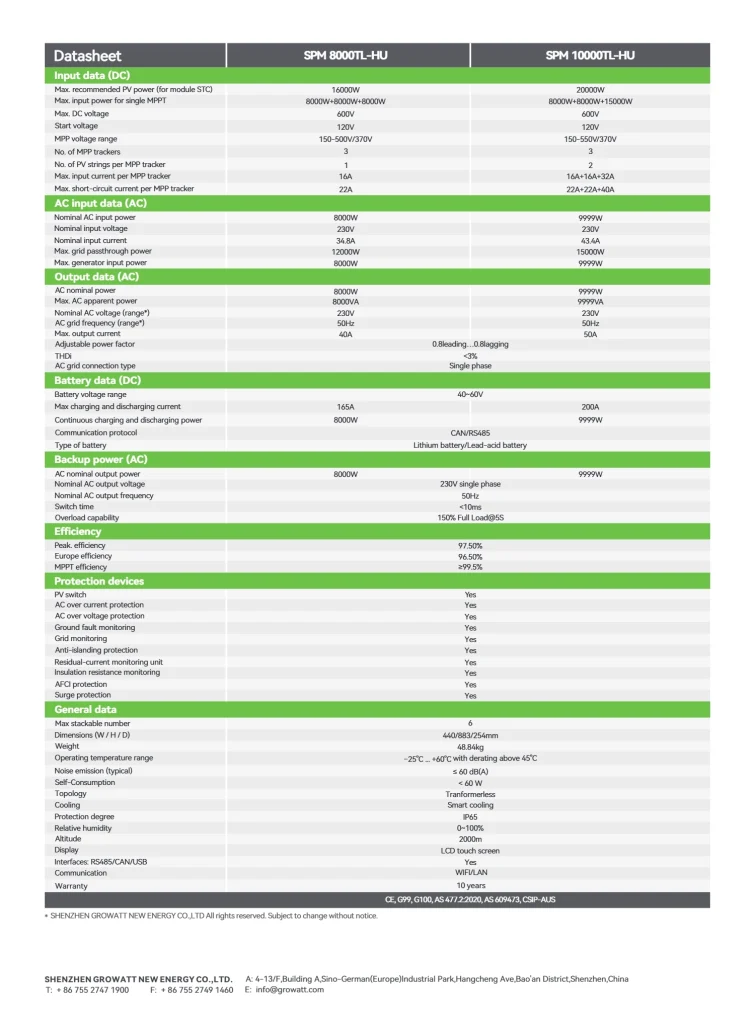

    Data Sheet

    Solar Inverters

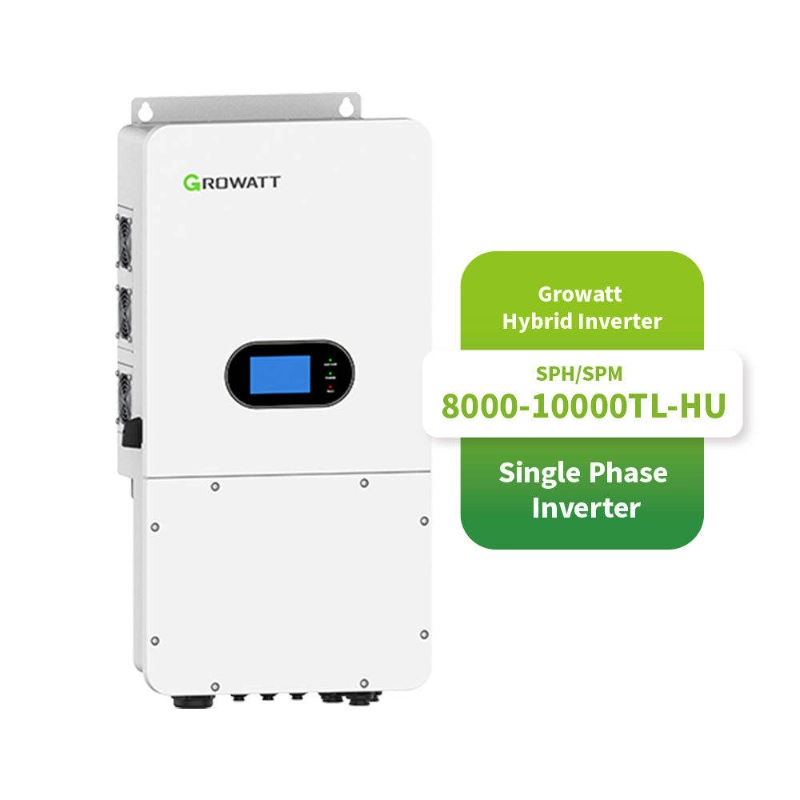

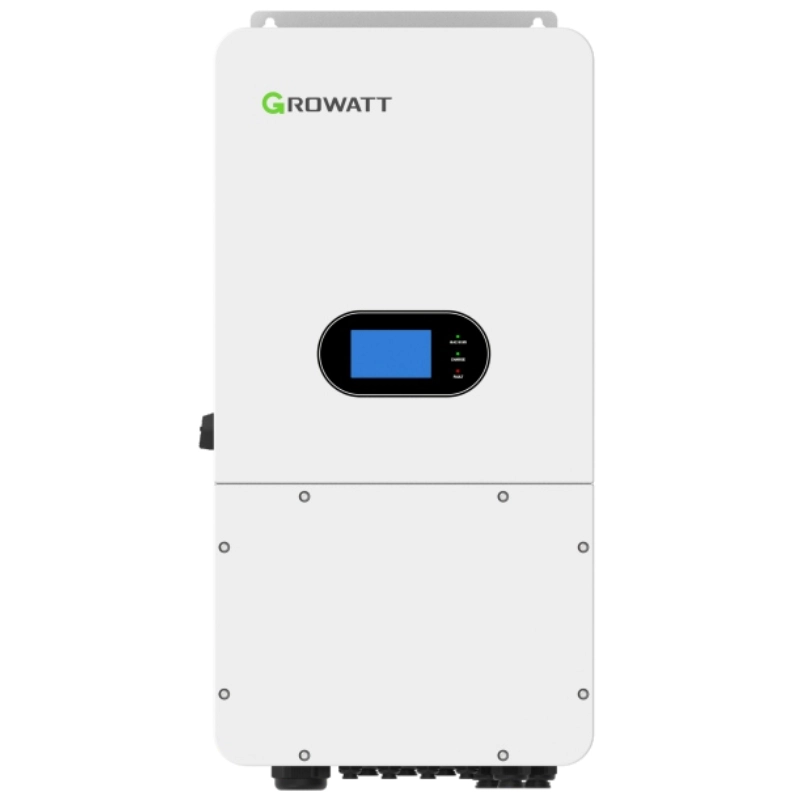

    Growatt SPM 8000~10000TL-HU Low-voltage Single Phase Hybrid inverter

    8kw
    10kw

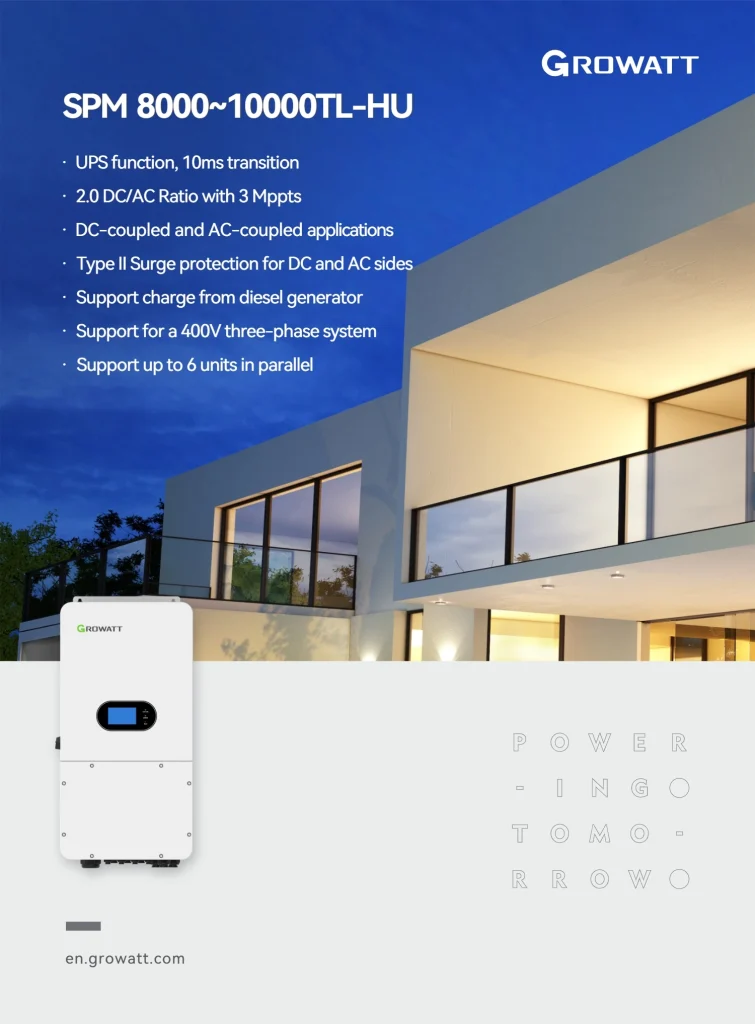

    Description:

    • UPS function, 10ms transition
    • 2.0 DC/AC Ratio with 3 Mppts
    • DC-coupled and AC-coupled applications
    • Type II Surge protection for DC and AC sides
    • Support charge from diesel generator
    • Support for a 400V three-phase system
    • Support up to 6 units in parallel

    Product parameters:

    Model

    SPM 8000-10000TL-HU

    MPP voltage range

    150-500V/370V                          150-550V/370V

    Nominal AC output voltage

    230V single phase

    Nominal AC output frequency

    50Hz

    No. of MPP trackers/No. of PV strings per MPP tracker

    3/1                           3/2

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Single Phase Hybrid inverter | 8~10 kW | LV Battery Supported

    Leading Functions

    – UPS function, 10ms transition

    – Scalable system available

    – Support smart load function

    High Yields

    – MPP trackers up to 3

    – Max.efficiency 97.5%

    System Compatibility

    – Support DC-coupled AC-coupled system

    – Support diesel and gas generator

    – Support lithium battery and lead-acid battery
