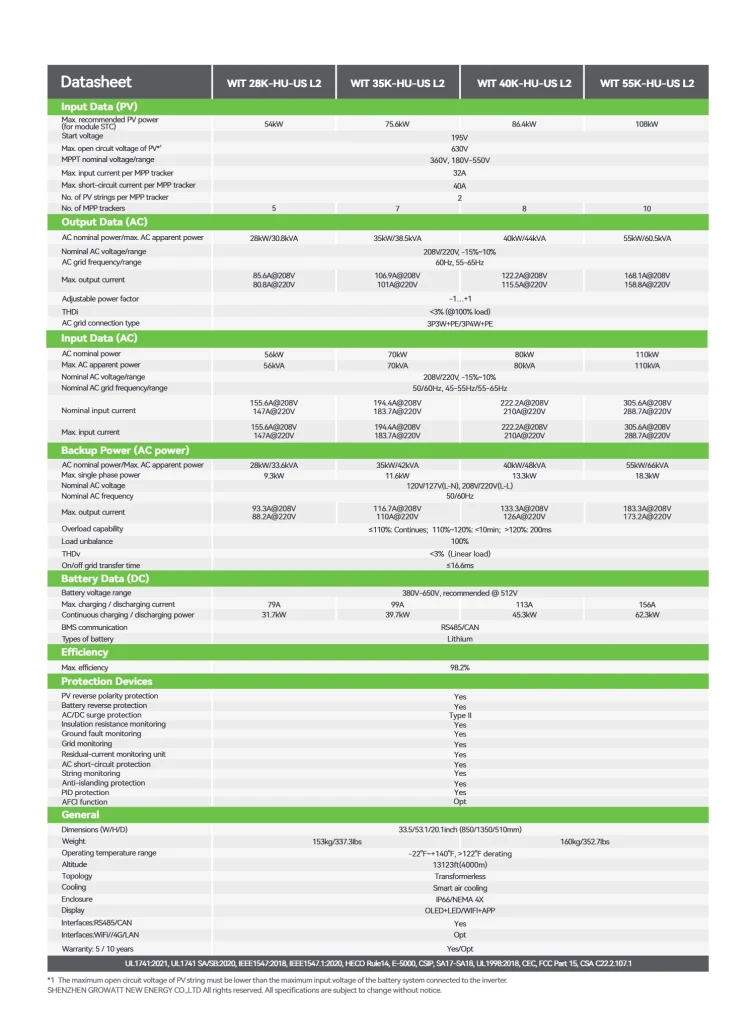

    Data Sheet

    Solar Inverters

    Growatt WIT 28-55K-HU/AU-US L2 High-voltage Three Phase split-phase Hybrid inverter

    28kw
    35kw
    40kw
    55kw

    Description:

    • Scalable system configuration, extend to 165kW
    • Support UPS function and black start
    • 100% unbalanced load when backup
    • 110% continuous AC overloading capacity
    • Support remote control of DG
    • Grid-support functions

    Product parameters:

    Model

    WIT 28-55K-HU/AU-US L2

    MPPT nominal voltage/range

    360V, 180V-550V

    Nominal AC voltage/range

    208V/220V, -15%~10%

    No. of PV strings per MPP tracker/No. of MPP trackers

    2/5      2/7      2/8      2/10

    Nominal AC grid frequency/range

    50/60Hz , 45-55Hz/55-65Hz

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Three Phase split-phase Hybrid inverter | 28~55 kW | HV Battery Supported

    Leading Functions

    – Built-in UPS and black start

    – 100% unbalanced output

    – 110% continuous AC overloading

    – Type II SPD on DC and AC side

    High Yields

    – Multiple MPPTs input

    – DC/AC Ratio up to 2.0

    – Max. efficiency up to 98%

    System Flexibility

    – Scalable up to 165kW

    – Support lithium and lead-acid battery

    – Remote control of DG

    production process

    Packaging And Delivery
