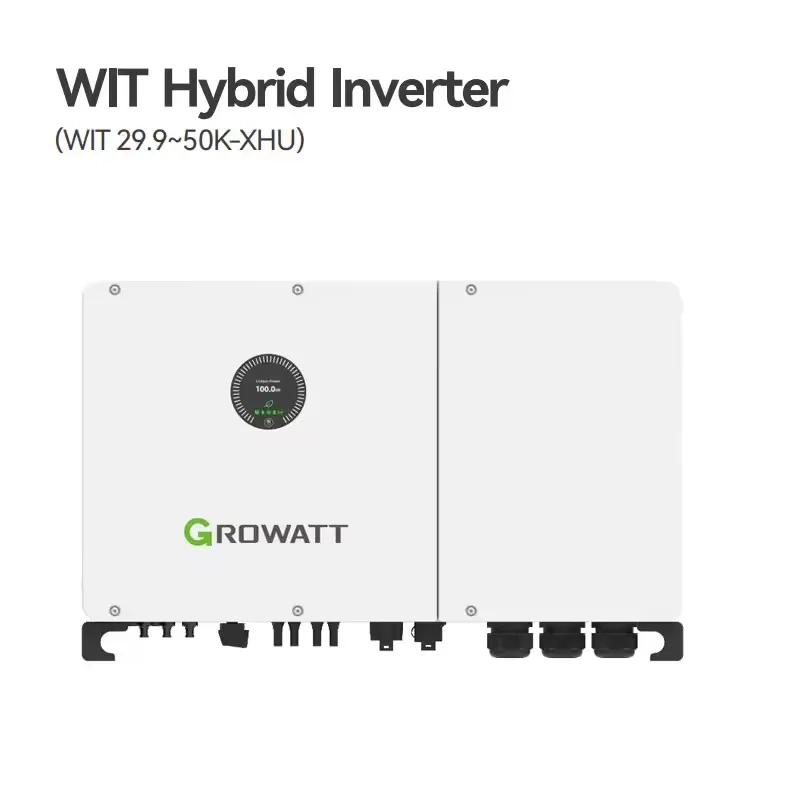

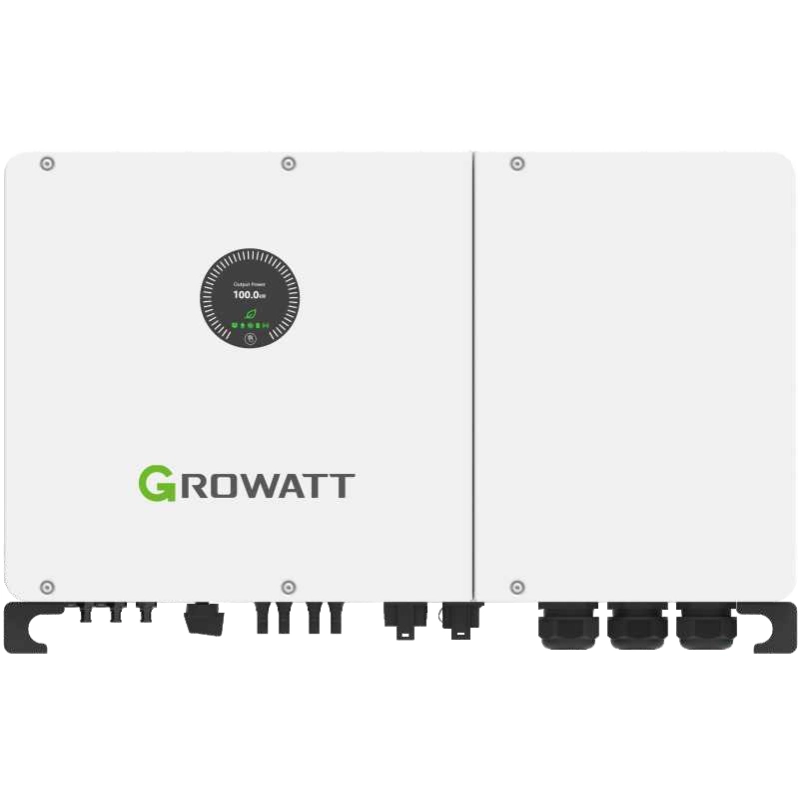

Growatt WIT 29.9~50K-XHU High-voltage Three Phase Hybrid inverter

29.9kw

30kw

36kw

40kw

50kw

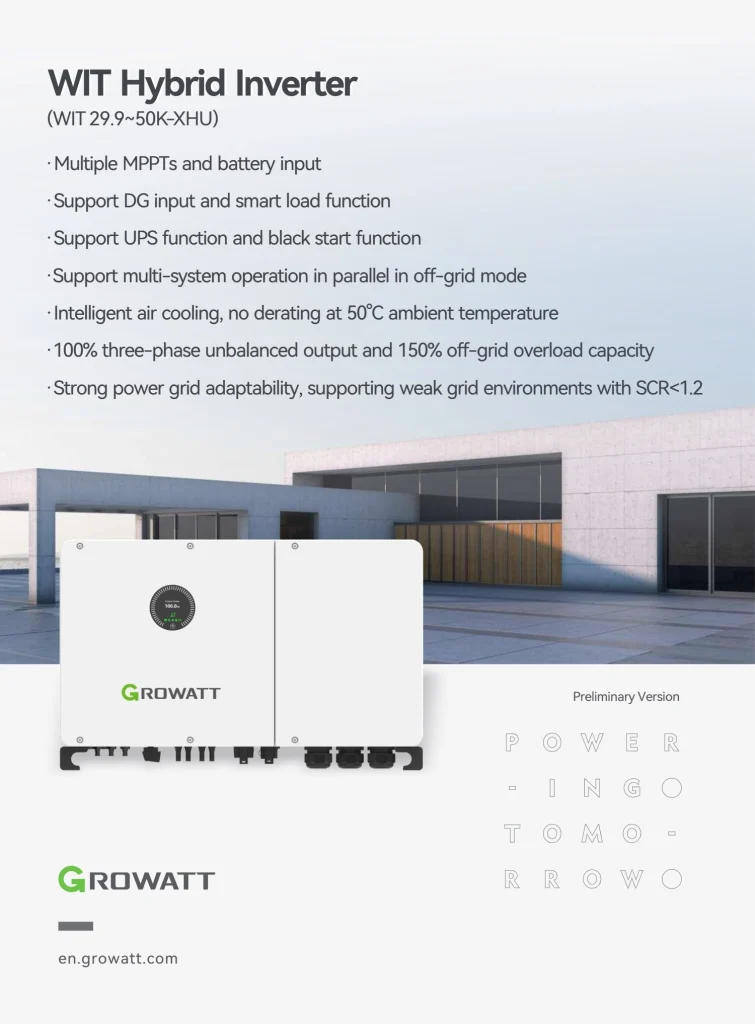

Description:

Multiple MPPTs and battery input
Support DG input and smart load function
Support UPS function and black start function
Support multi-system operation in parallel in off-grid mode
Intelligent air cooling, no derating at 50°C ambient temperature
100% three-phase unbalanced output and 150% off-grid overload capacity
Strong power grid adaptability, supporting weak grid environments with SCR<1.2

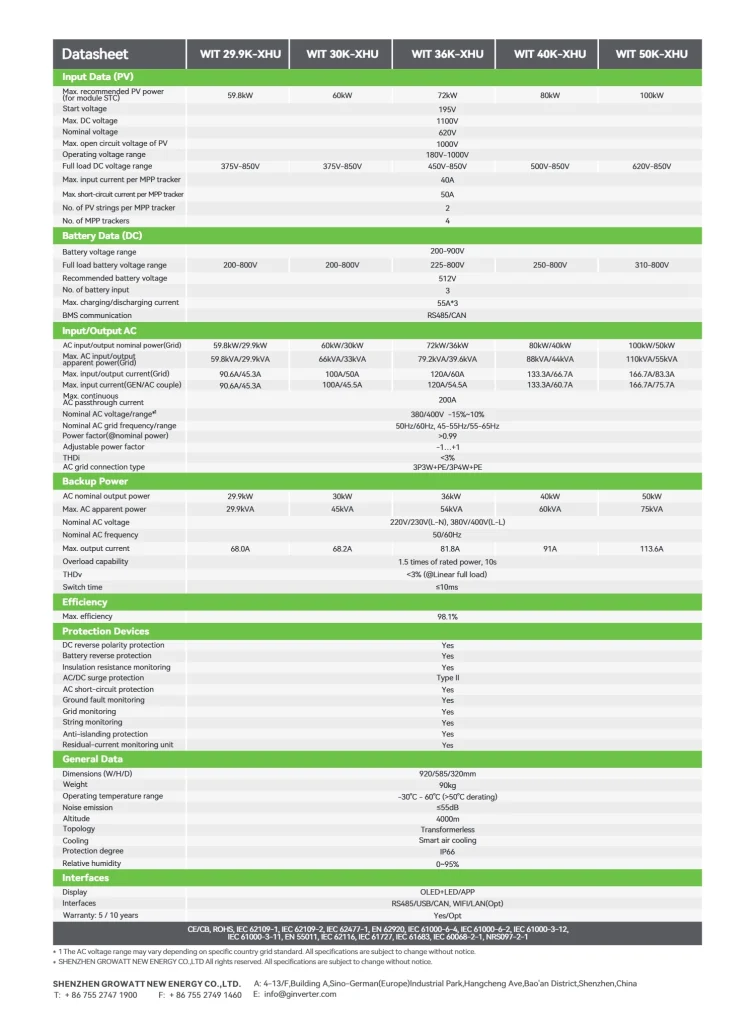

Product parameters:

Model	WIT 29.9~50K-XHU
Nominal AC voltage	220V/230V(L-N), 380V/400V (L-L)
Nominal AC grid frequency/range	50Hz/60Hz, 45-55Hz/55-65Hz
No. of PV strings per MPP tracker/No. of MPP trackers	2/4
Battery voltage range	200-900V

Three Phase Hybrid inverter | 29.9~50 kW | HV Battery Supported

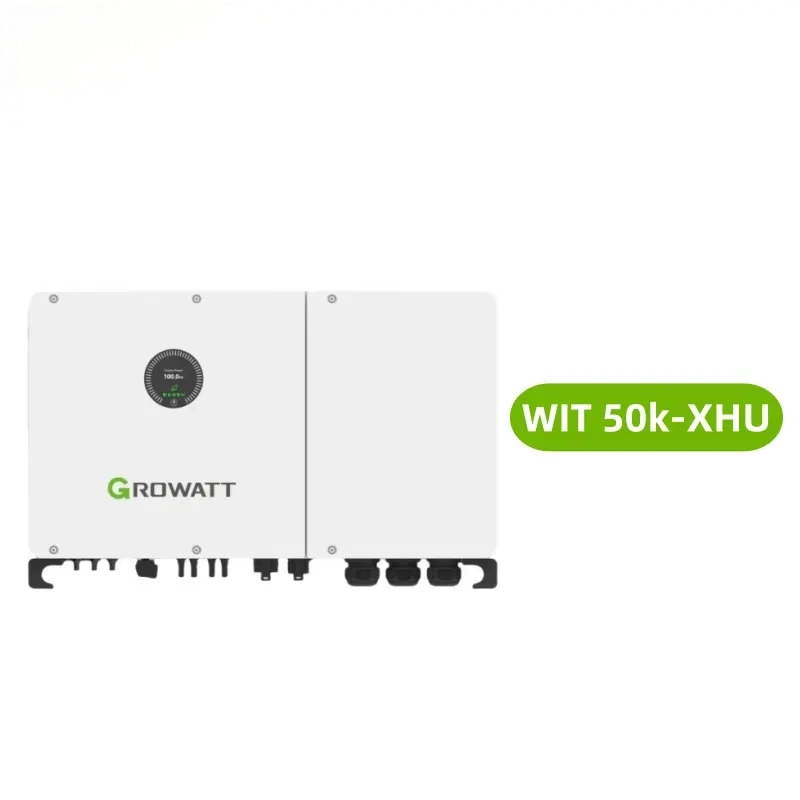

Growatt WIT 50K-XHU designed for industrial applications i.e. factories and warehouses. Inverter is also equipped with a range of advanced features that make it easy to install and use. It has a user-friendly interface that allows persons responsible for monitoring and installers to monitor system performance and adjust settings as needed. The inverter is also compatible with a range of monitoring systems, including WiFi, Ethernet, and RS485.

The hybrid inverter receives DC inputs from PV strings which go through the MPPT routes. The DC power is then converted into AC power through the inverter circuit to power the loads and feed power into the grid; The PV strings can supply power to charge the battery through the MPPT routes; Convert battery power to AC power supplies for the loads and feeding to the grid; Charge the battery from the grid through a rectifier circuit; When the GEN port is connected to the generator and set to the GEN mode, the generator can supply power to the loads or charge the battery. When the GEN port is connected to loads and set to “Smart Load” mode, during on-grid operation, it will supply grid power to the loads connected via the GEN port; during off-grid operation, the power supply to smart loads will be cut off. When the GEN port is connected to the on-grid inverter and set to “AC Couple” mode, during on-grid operation, the on-grid inverter will be connected to the grid and output power; during off-grid operation, the on-grid inverter will remain connected and generating power together with the WIT inverter.

GENERAL INFORMATION

Multiple MPPTs and battery input – 4 MPPTs, to each MPPT 2 strings
The option to connect Diesel generator, windmill or any other source of energy
Wide range of energy production settings i.e. charge times, discharge times, schedules, export limit
remote access to change settings of electric production and possibility to observe the work of devices
Support DG input and smart load function ·
Support UPS function and black start function ·
Support multi-system operation in parallel in off-grid mode ·
Intelligent air cooling, no derating at 50°C ambient temperature ·
100% three-phase unbalanced output and 150% off-grid overload capacity ·
Strong power grid adaptability, supporting weak grid environments with SCR<1.2
