- Max. string current up to 20A
- Max. charging/discharging current of 290A
- 100% unbalanced output: each phase up to 50% rated power
- 200% overload capability for 10 seconds
- Supports Max 6 pcs in parallel
- Integrated with generator input and
- smart load control
Solar Inverters
Growatt WIT 4-15K-HU Low-voltage Three Phase Hybrid inverter
- 4kw
- 5kw
- 6kw
- 8kw
- 10kw
- 12kw
- 15kw
Description:
Product parameters:
Model |
WIT 4-15K--HU |
MPPT voltage range |
150V-850V |
Nominal AC voltage/range |
220V/380V, 230V/400V, -15%~+10% |
Nominal AC grid frequency/range |
50/60Hz, 45~55Hz/55-65 Hz |
No. of PV strings per MPP tracker/No. of MPP trackers |
2/1 1/2 2/1/2 |
- description
- production process
- Packaging And Delivery
description
Three Phase Hybrid inverter | 8~10 kW | LV Battery Supported
The Growatt WIT 4~15kW-HU inverter is a three-phase hybrid inverter designed for residential and small industrial applications. It is known for its affordable price and high quality. The inverter is certified for the global market and is commonly used in pro-consumer installations. It comes in various capacities ranging from 4kW to 15kW.

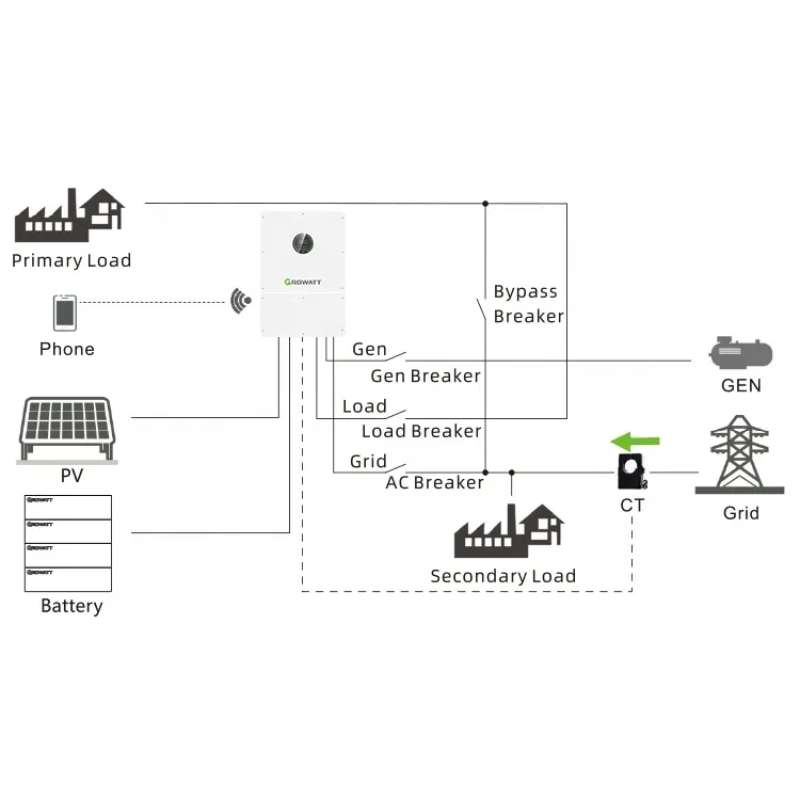

One of the key features of the WIT inverter is its backup output for EPS (Emergency Power Supply) circuits and possibility to work with LOW VOLTAGE (48V) batteries
This output can operate in two modes:
- Bypass mode, where power is constantly supplied to the EPS output,
- UPS (Uninterruptible Power Supply) mode, where power is available after a power outage, enabling off-grid operation.
To further enhance its functionality, Growatt offers the option to pair the WIT inverter with AXE energy storage systems. These energy storage solutions have capacities ranging from 5.1 kWh to 30,6 kWh. By combining the Growatt WIT inverter with AXE energy storage, users can maximize self-consumption of the energy generated. Instead of sending excess energy to the grid, it is stored in the batteries, reducing reliance on energy prices set by the distribution company. This setup promotes greater energy independence.
The Growatt WIT inverters are compatible with LiFePo4 batteries and backup power systems, providing flexibility for various energy storage configurations. Additionally, when combined with an energy meter, the WIT inverters can activate the export limit function, allowing users to regulate the amount of energy they export to the grid. This feature enables the generation of energy balances for the entire building, promoting efficient energy management.
Overall, the Growatt WIT 8kW-HU inverter offers a cost-effective and high-quality solution for residential and small industrial applications. Its hybrid capabilities, EPS backup output, compatibility with AXE energy storage, and ability to activate export limits make it a versatile choice for those seeking efficient energy management and greater energy independence.
GENERAL INFORMATION
- UPS function, 10 ms switching
- Compact design for easier installation
- 3-phase output 100% phase unbalanced
- Asymmetrical phase power flow management
- LCD display with four buttons
- Adjustable charging and discharging times
- Online smart service
- Battery management system for safe operation
- Battery charge status monitoring
- IP65 protection rating
- Growatt comprehensive warranty plan
- 10 year warranty
- Can work with low voltage 48V batteries

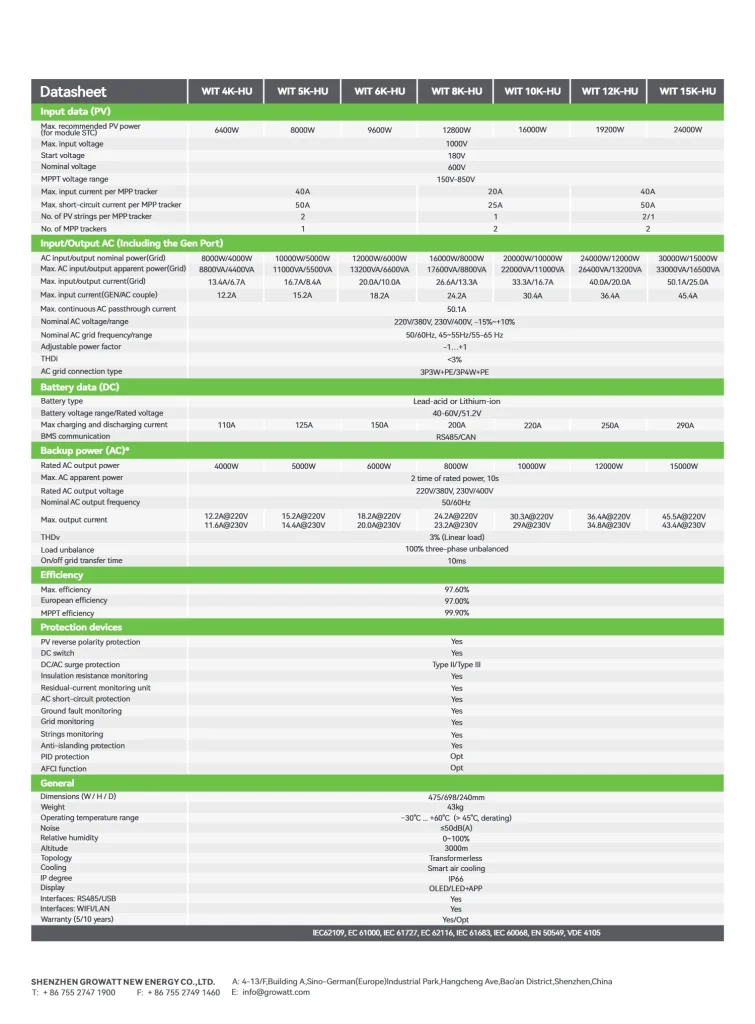

Basic specifications of hybrid inverter Growatt WIT 4~15kW-HU:
Max. recommended PV power (for module STC) [W] : 12800
Max. DC voltage : 1000
Max charging and discharging current [A]: 200A
AC nominal power [W] : 8000
Max. output current [A] : 25

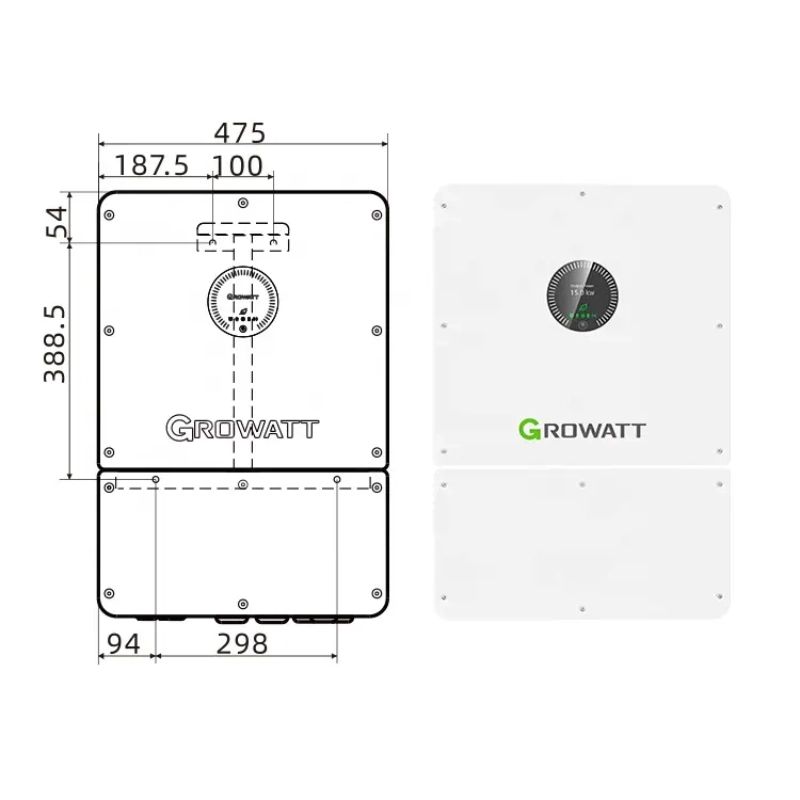

Dimensions (W / H / D) [mm] : 475/698/240
Weight [kg] : 43
MAX. efficiency [%] : 97,60
Protection degree: IP66
Interfaces: RS232/RS485/CAN/USB
Cooling : Natural convection with smart air cooling
Topology : Transformlessproduction process
