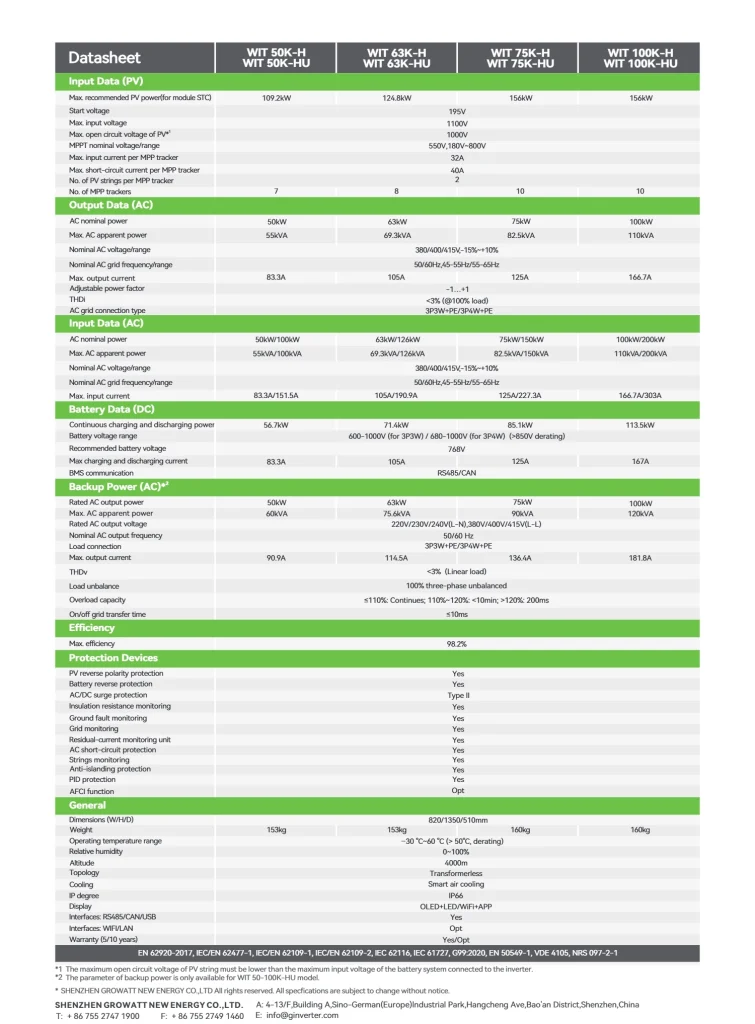

    Data Sheet

    Solar Inverters

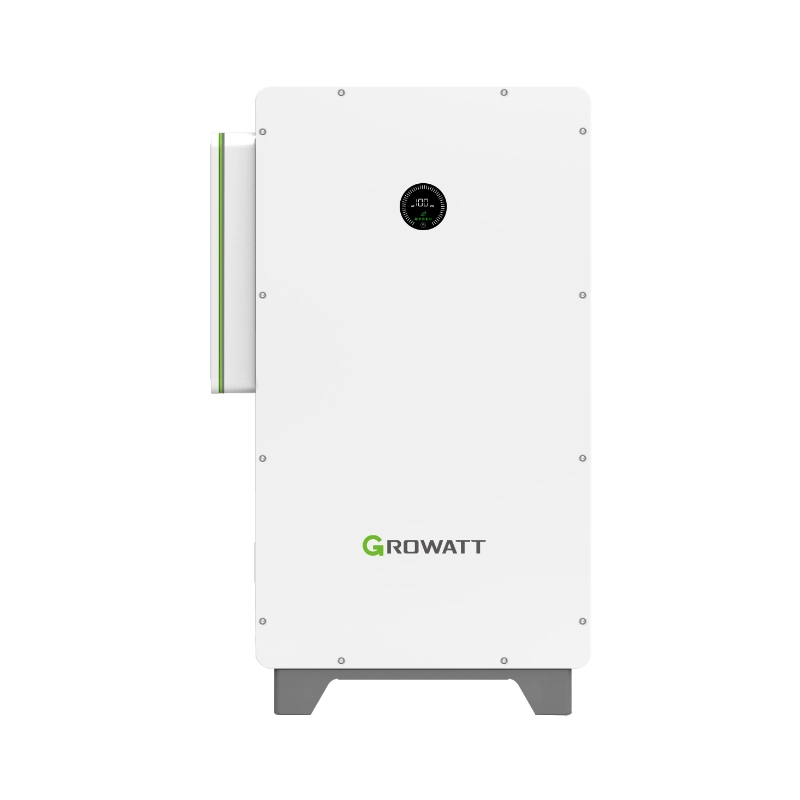

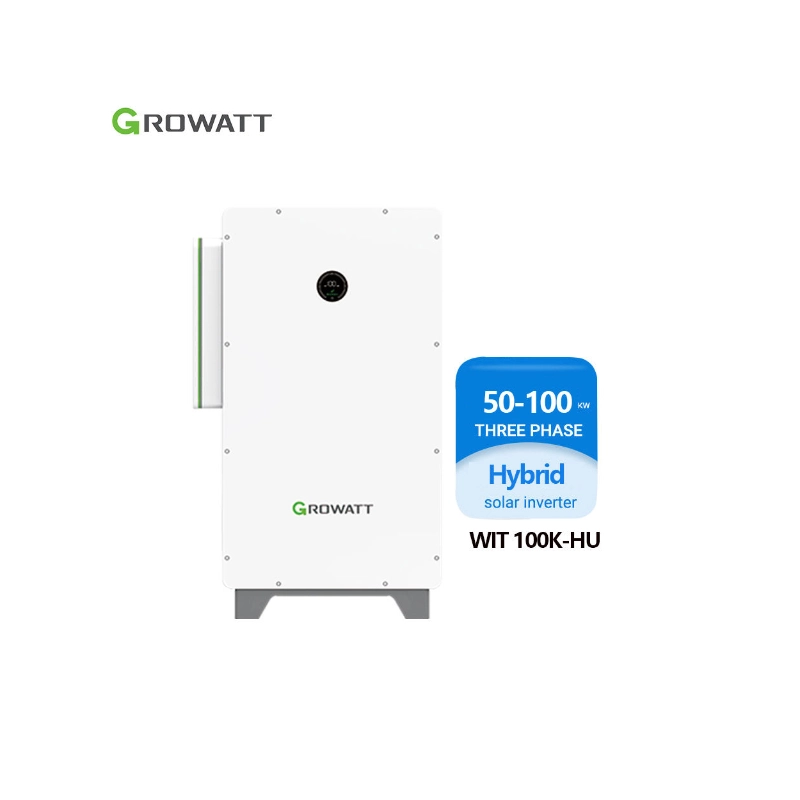

    Growatt WIT 50-100K-HU/AU High-voltage Three Phase Hybrid inverter

    50kw
    63kw
    75kw
    100kw

    Description:

    • ·Scalable system configuration, extend to 300kW
    • Support UPS function and black start
    • 100% unbalanced load when backup
    • 110% continuous AC overloading capacity
    • Support remote control of DG
    • Multiple MPPTs input
    • Grid-support functions

    Product parameters:

    Model

    WIT 50-100K-HU/AU

    MPPT nominal voltage/range

    550V,180V~800V

    Rated AC output voltage

    220V/230V/240V(L-N),380V/400V/415V(L-L)

    No. of PV strings per MPP tracker/No. of MPP trackers

    2/7      2/8      2/10      2/10

    Nominal AC grid frequency/range

    50/60Hz,45-55Hz/55-65Hz

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Three Phase Hybrid inverter | 50~100 kW | HV Battery Supported

    Leading Functions

    – Built-in UPS and black start

    – 100% unbalanced output

    – 110% continuous AC overloading

    – Type II SPD on DC and AC side

    High Yields

    – Multiple MPPTs input

    – DC/AC Ratio up to 2.0

    – Max. efficiency up to 98%

    System Flexibility

    – Scalable up to 300kW

    – Support lithium and lead-acid battery

    – Remote control of DG

    production process

    Packaging And Delivery
