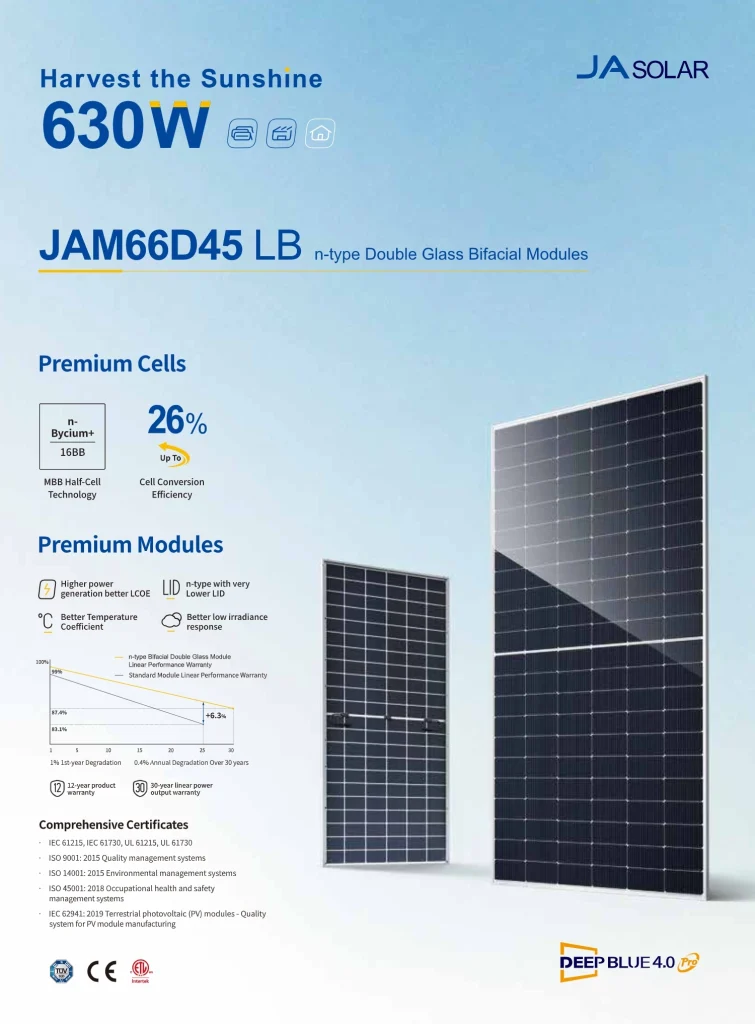

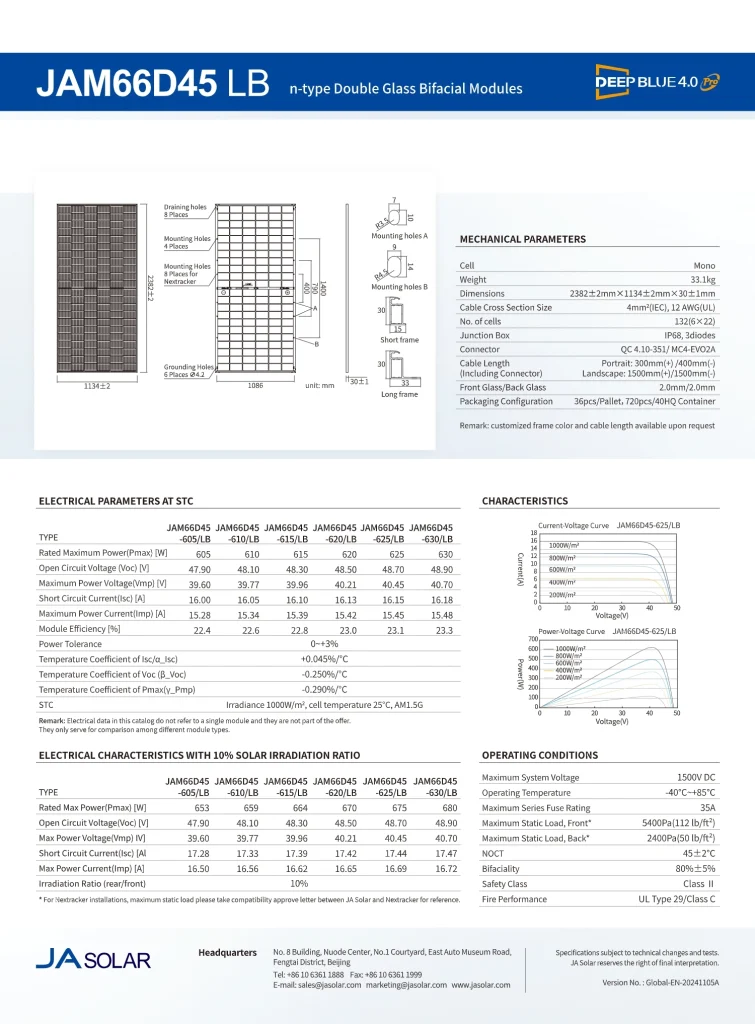

    Data Sheet

    Solar Panels

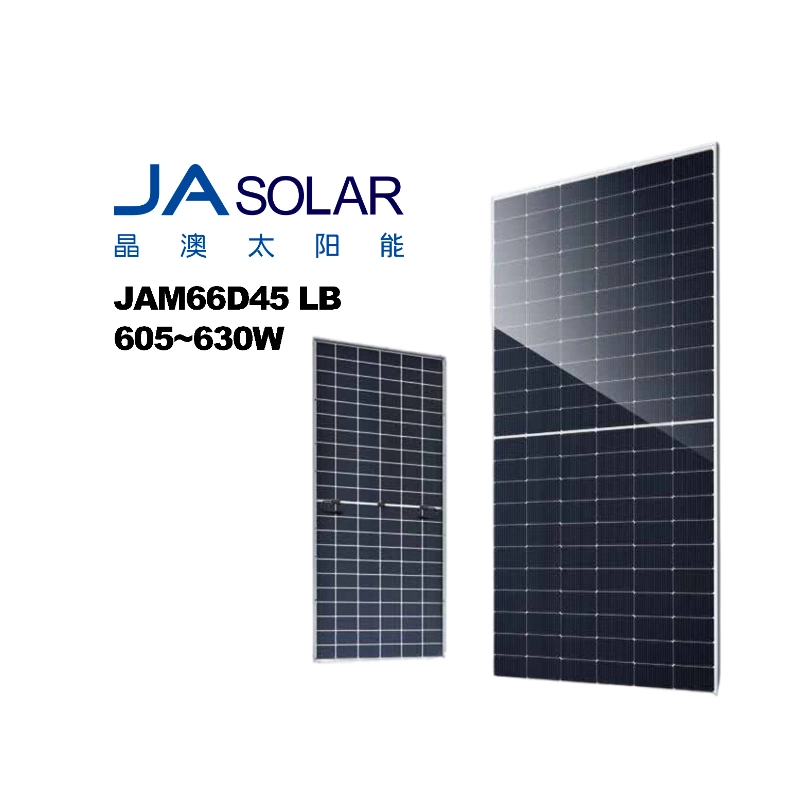

    JA SOLAR JAM66D45 LB 605~630W Dual glass solar panels

    605W
    610W
    615W
    620W
    625W
    630W

    Description:

    Premium Modules

    1. Higher power generation better LCOE
    2. LIDn-type with very Lower LID
    3. Better Temperature Coefficient
    4. Better low irradiance response

    Comprehensive Certificates

    1. IEC61215,IEC 61730,UL61215,UL61730
    2. ISO 9001:2015Quality management systems
    3. ISO 14001:2015 Environmental management systems
    4. ISO 45001:2018 Occupational health and safetymanagement systems
    5. IEC 62941:2019 Terrestrial photovoltaic(PV)modules-Qualitysystem for PV module manufacturing

    Product parameters:

    Cell Mono
    Weight 33.1kg

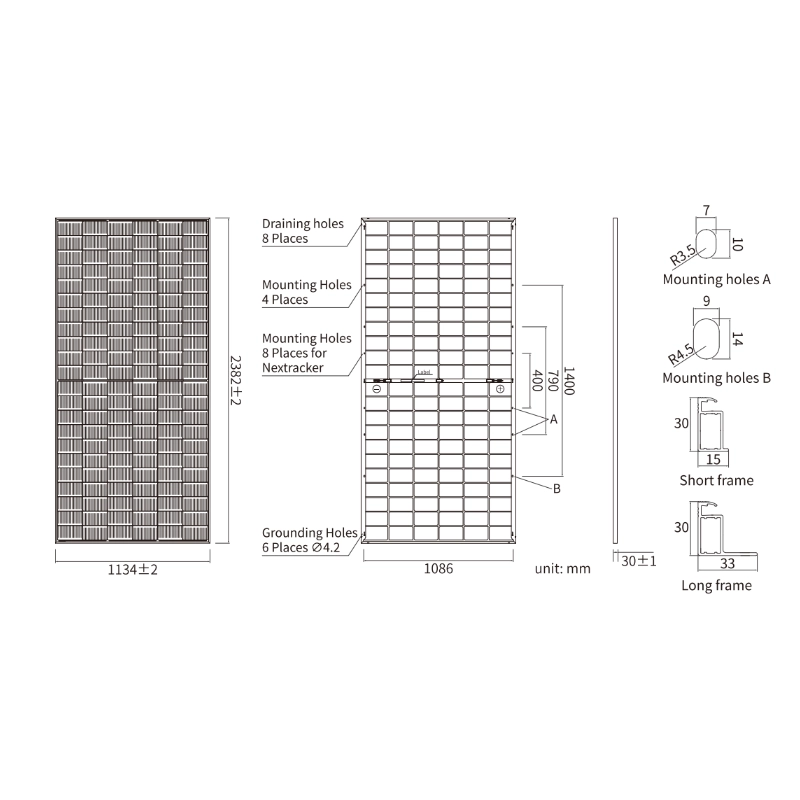

    Dimensions 2382±2mm×1134±2mm×30±1mm
    Cable Cross Section Size 4mm²(IEC),12  AWG(UL)
    No.of cells 132(6×22)
    Junction Box IP68,3diodes
    Connector QC4.10-351/MC4-EVO2A
    Cable Length
    (Including  Connector)    		 Portrait:300mm(+)/400mm(-)
    Landscape:1500mm(+)/1500mm(-)
    Front Glass/Back Glass 2.0mm/2.0mm
    Packaging Configuration 36pcs/Pallet,720pcs/40HQ Container

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    605~630W | Dual glass

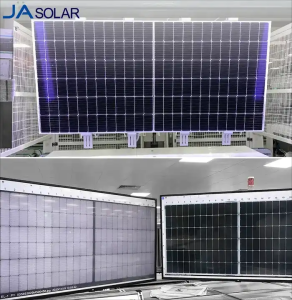

    production process

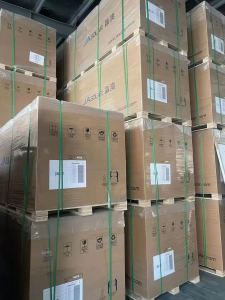

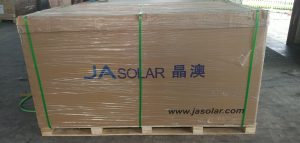

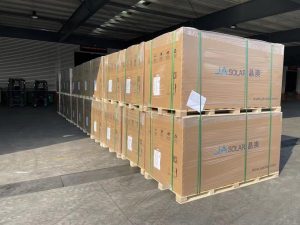

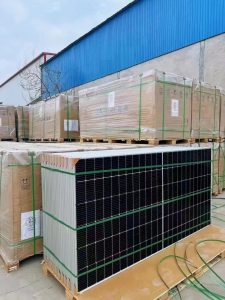

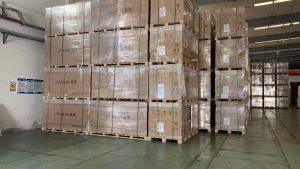

    Packaging And Delivery
