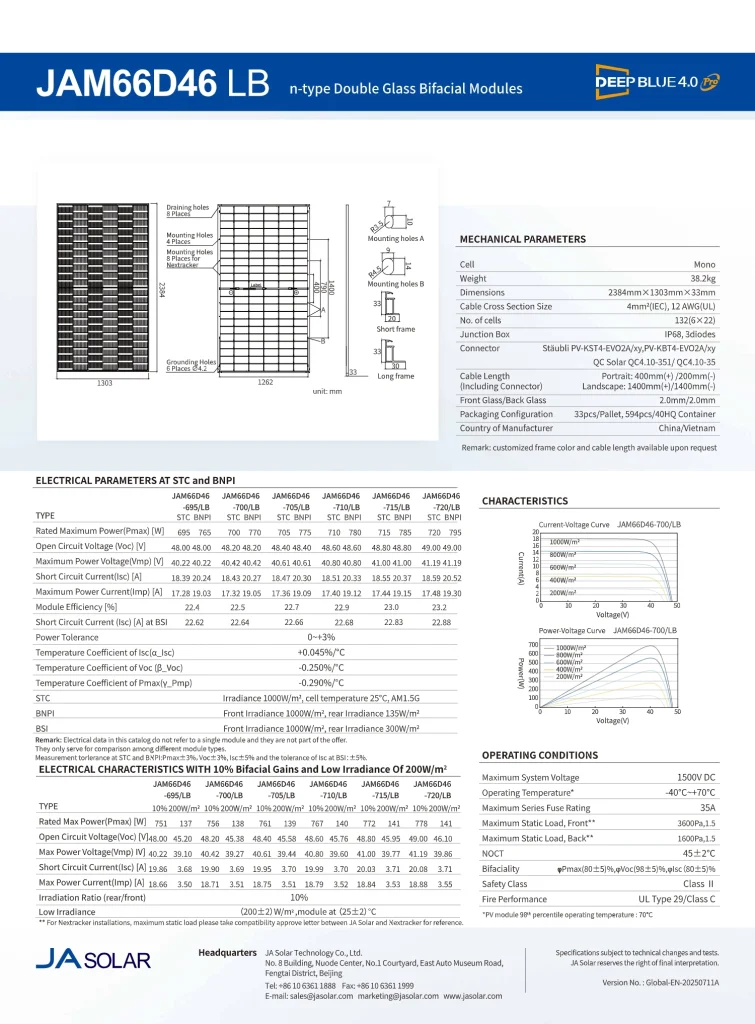

    Data Sheet

    Solar Panels

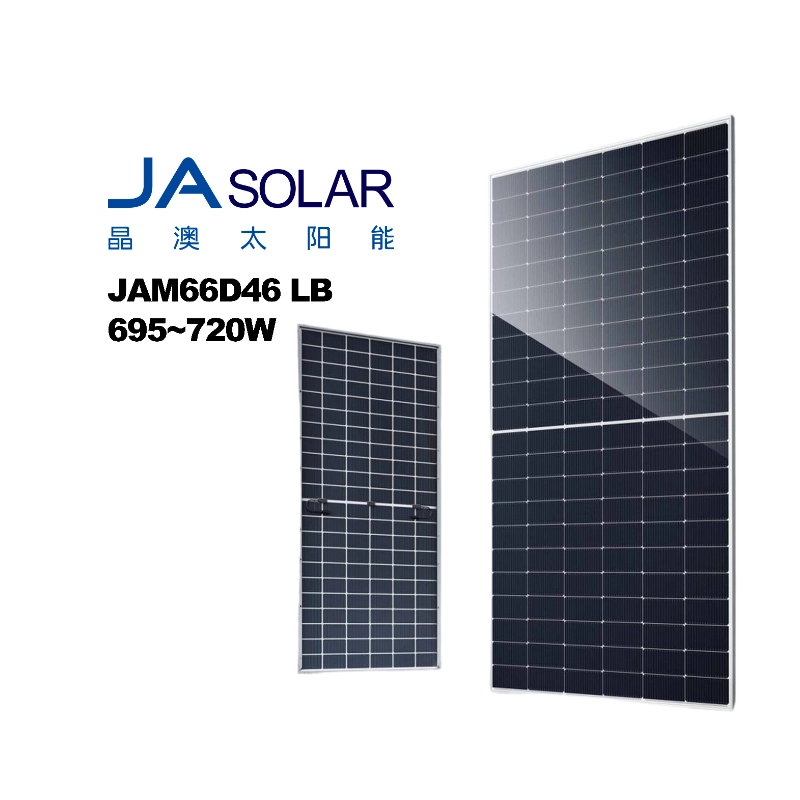

    JA SOLAR JAM66D46 LB 695~720W Dual glass solar panels

    695W
    700W
    705W
    710W
    715W
    720W

    Description:

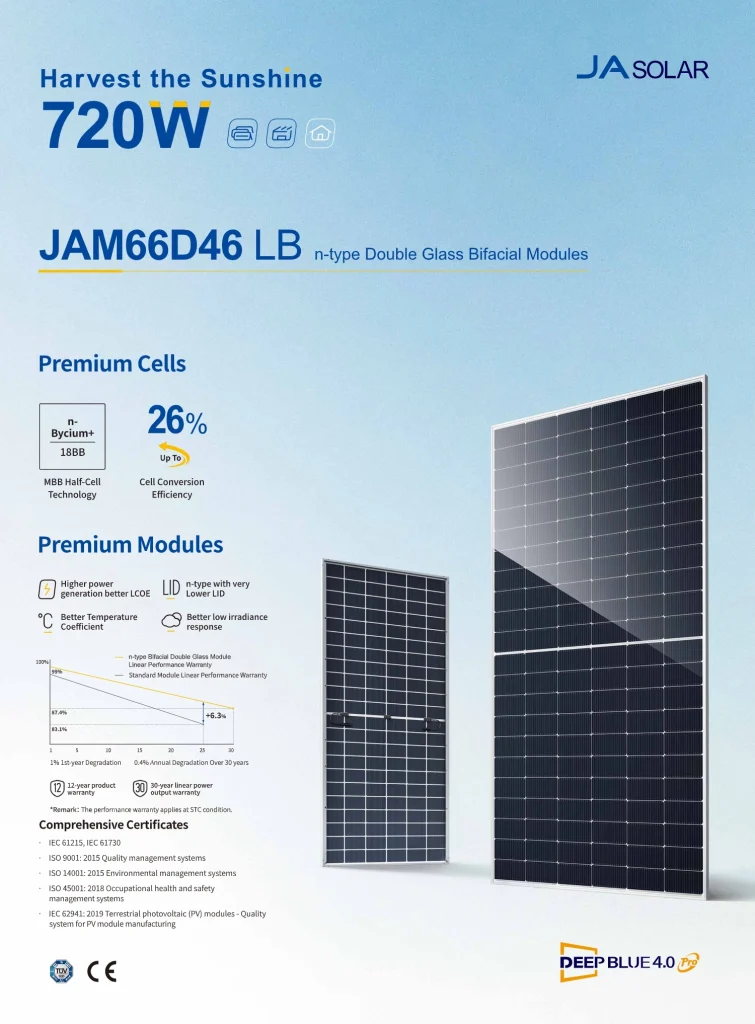

    Premium Modules

    1. Higher power generation better LCOE

    2. n-type with very Lower LID

    3. Better Temperature Coefficient

    4. Better low irradiance response

    Comprehensive Certificates

    1. IEC 61215,IEC 61730
    2. ISO 9001:2015Quality management systems
    3. ISO 14001:2015Environmental management systems
    4. ISO 45001:2018 Occupational health and safety management systems
    5. IEC 62941:2019 Terrestrial photovoltaic(PV)modules-Quality system for PV module manufacturing

    Product parameters:

    Cell Mono
    Weight 38.2kg

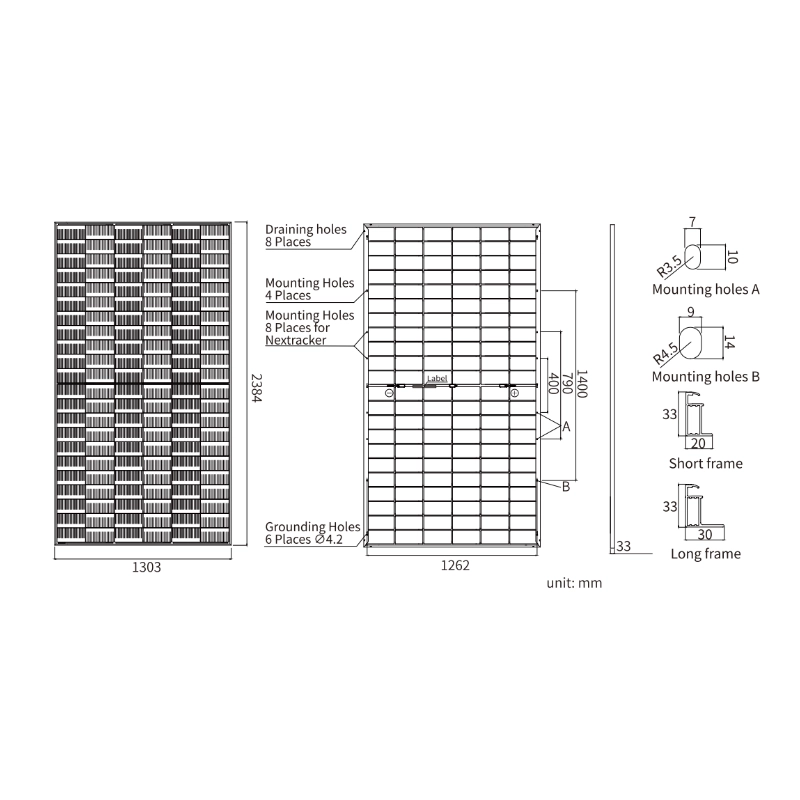

    Dimensions 2384mm×1303mm×33mm
    Cable Cross Section Size 4mm²(IEC),12  AWG(UL)
    No.of cells 132(6×22)
    Junction Box IP68,3diodes
    Connector         Stäubli PV-KST4-EVO2A/xy,PV-KBT4-EVO2A/xy
      QC SolarQC4.10-351/QC4.10-35
    Cable Length Portrait:400mm(+)/200mm(-)
    (Including Connector) Landscape:1400mm(+)/1400mm(-)
    Front Glass/Back Glass 2.0mm/2.0mm
    Packaging Configuration 33pcs/Pallet,594pcs/40HQ Container
    Country of Manufacturer China/Vietnam

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    695~720W | Dual glass

    production process

    Packaging And Delivery
