    HomeProductsSolar PanelsJA SOLAR JAM72D40 LB 590~615W Dual glass solar panels

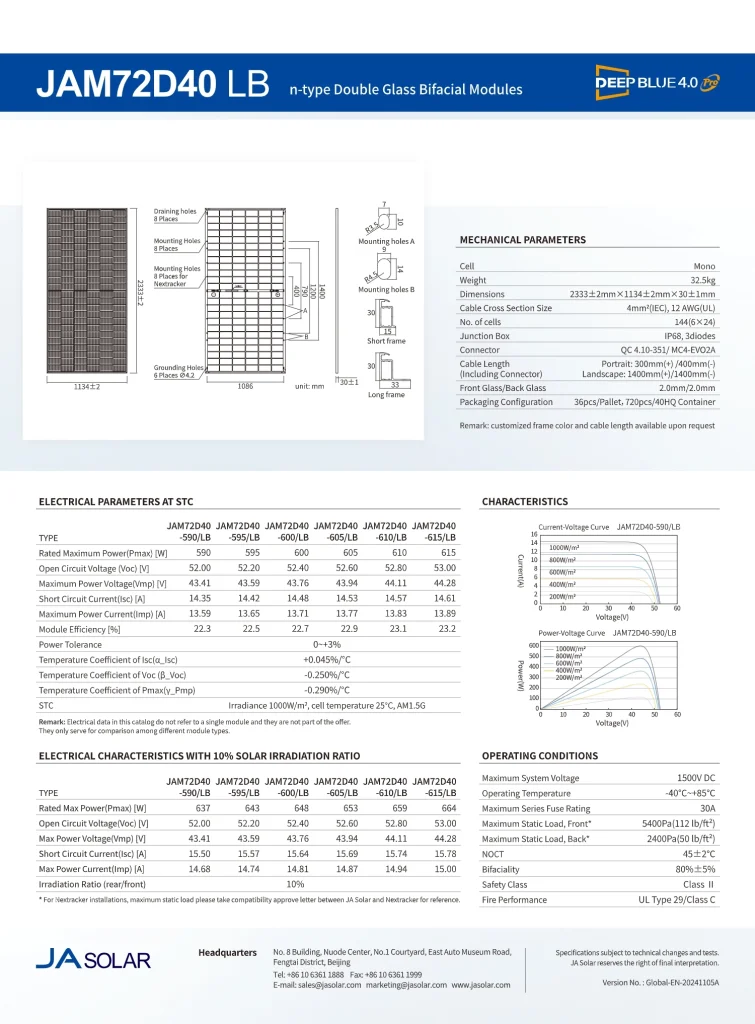

    Data Sheet

    Solar Panels

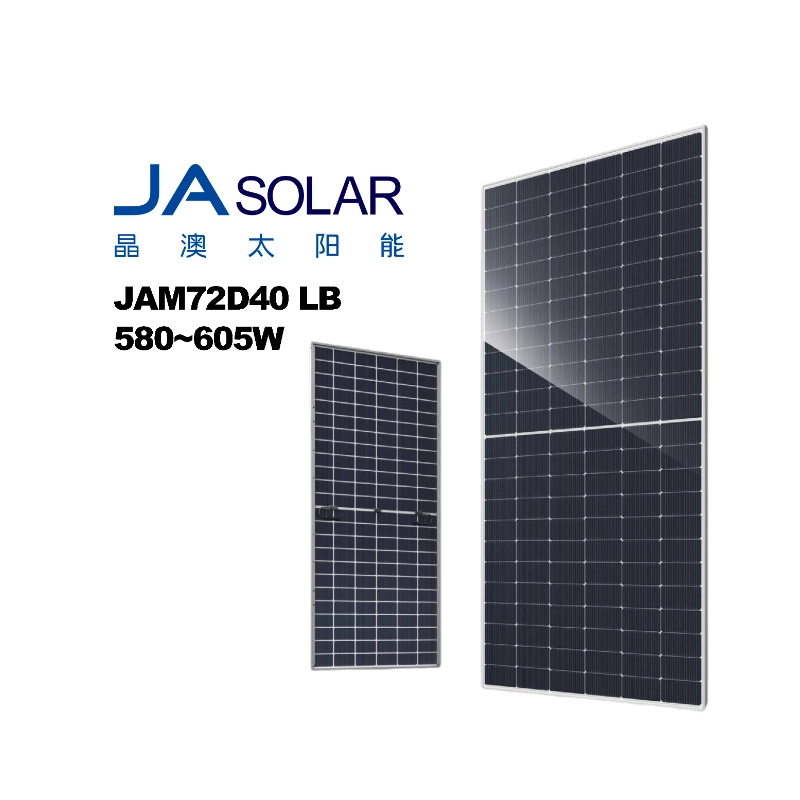

    JA SOLAR JAM72D40 LB 590~615W Dual glass solar panels

    590W
    595W
    600W
    605W
    615W

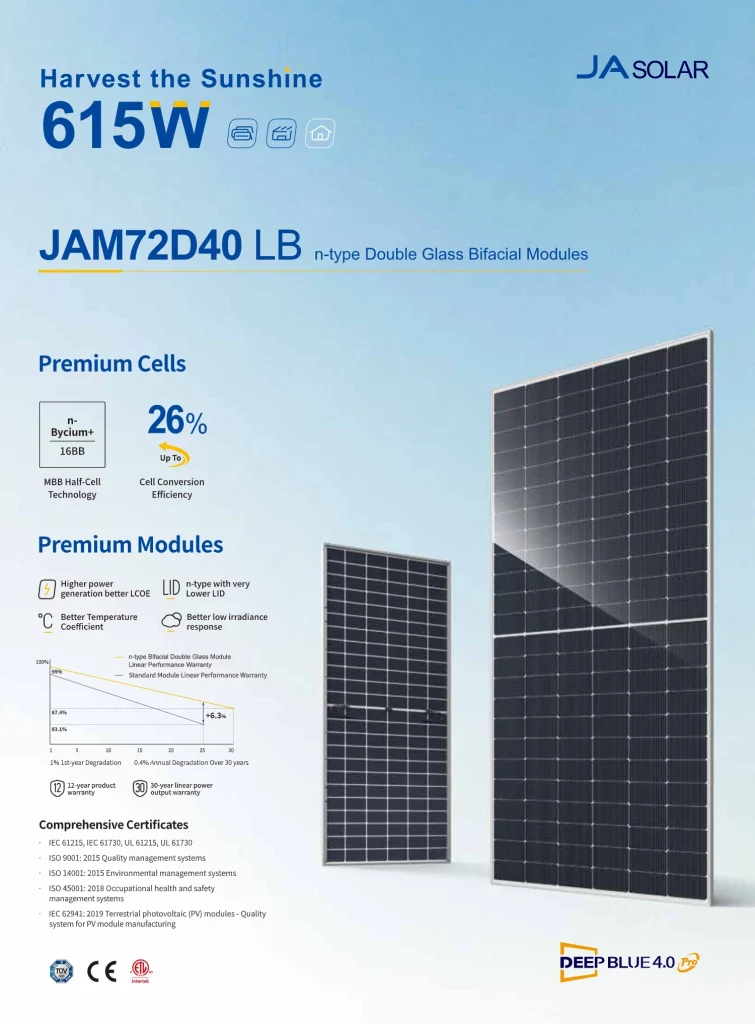

    Description:

    Premium Modules

    1. Higher power generation better LCOE
    2. n-type with very Lower LID
    3. Better Temperature Coefficient
    4. Better low irradiance response

    Comprehensive Certificates

    1. IEC 61215,IEC 61730,UL61215,UL61730



    2. ISO 9001:2015Quality management systems



    3. ISO 14001:2015 Environmental management systems



    4. ISO 45001:2018 Occupational health and safety management systems

    5. IEC 62941:2019 Terrestrial photovoltaic(PV)modules-Quality system for PV module manufacturing

    Product parameters:

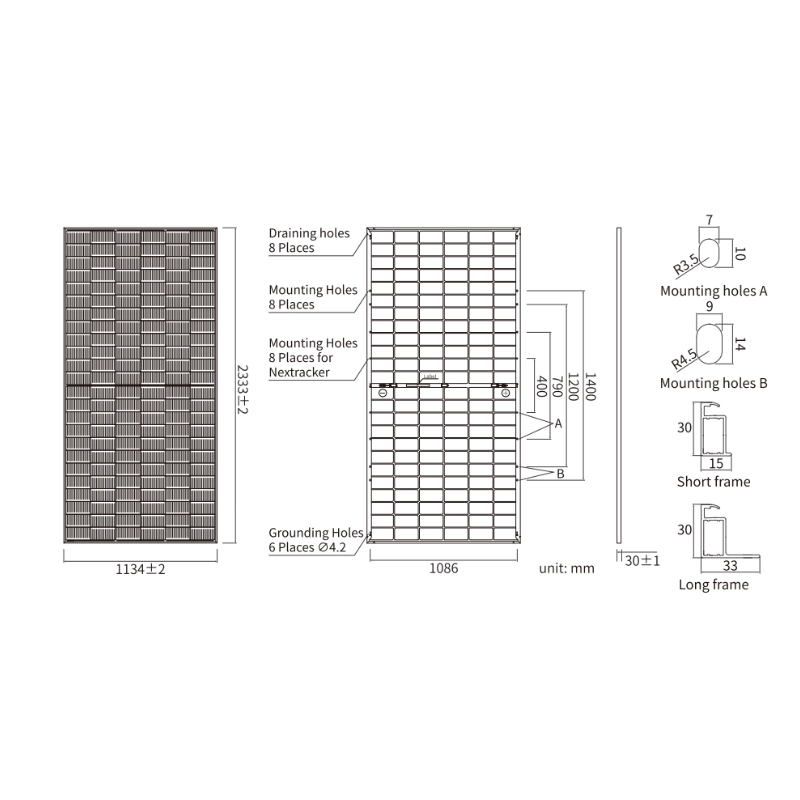

    MECHANICAL PARAMETERS
    Cell Mono
    Weight 32.5kg
    Dimensions 2333±2mm×1134±2mm×30±1mm
    Cable Cross Section Size 4mm²(IEC),12  AWG(UL)
    No.of cells 144(6×24)
    Junction Box IP68,3diodes
    Connector QC4.10-351/MC4-EVO2A
    Cable Length
    (Including Connector)    		 Portrait:300mm(+)/400mm(-)
    Landscape:1400mm(+)/1400mm(-)
    Front Glass/Back Glass 2.0mm/2.0mm
    Packaging Configuration 36pcs/Pallet,720pcs/40HQ Container

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    590~615W | Dual glass

    production process

    Packaging And Delivery

    Products Center

    Tags:

    590W 595W 600W 605W 610W 615W Dual glass solar panels
