Data Sheet

Solar Panels

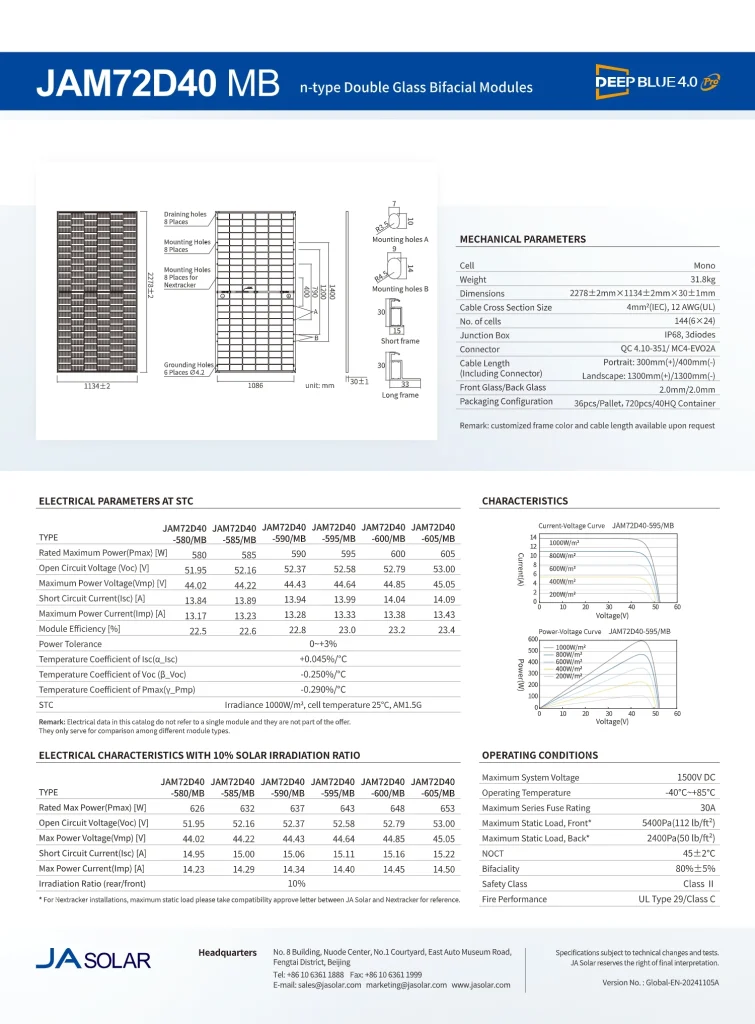

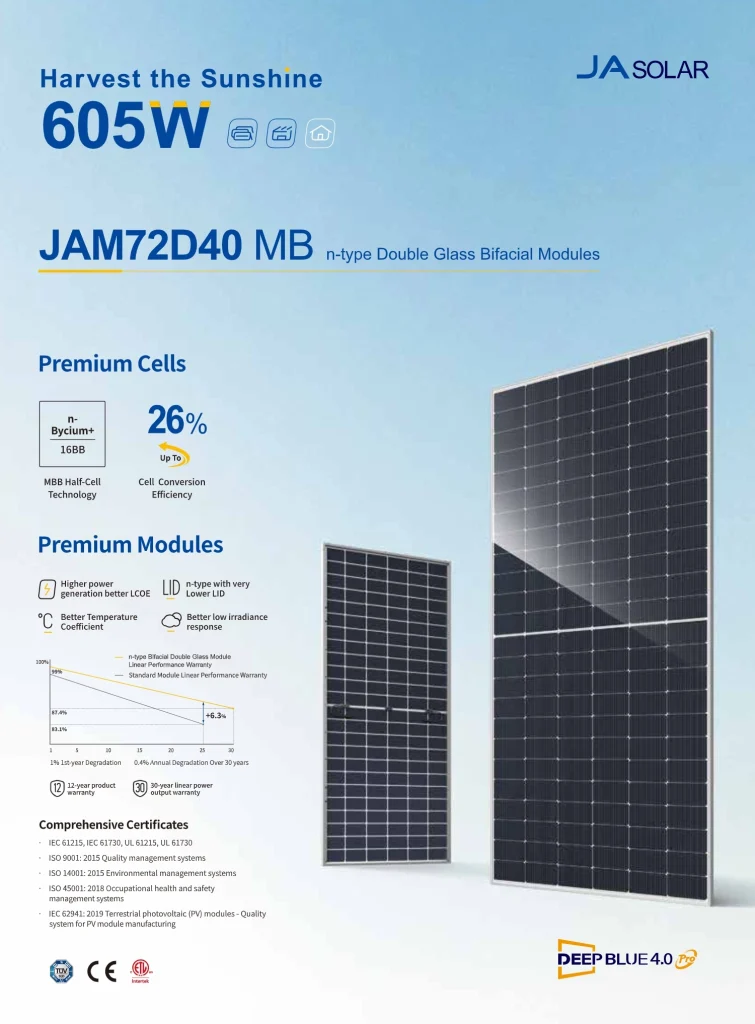

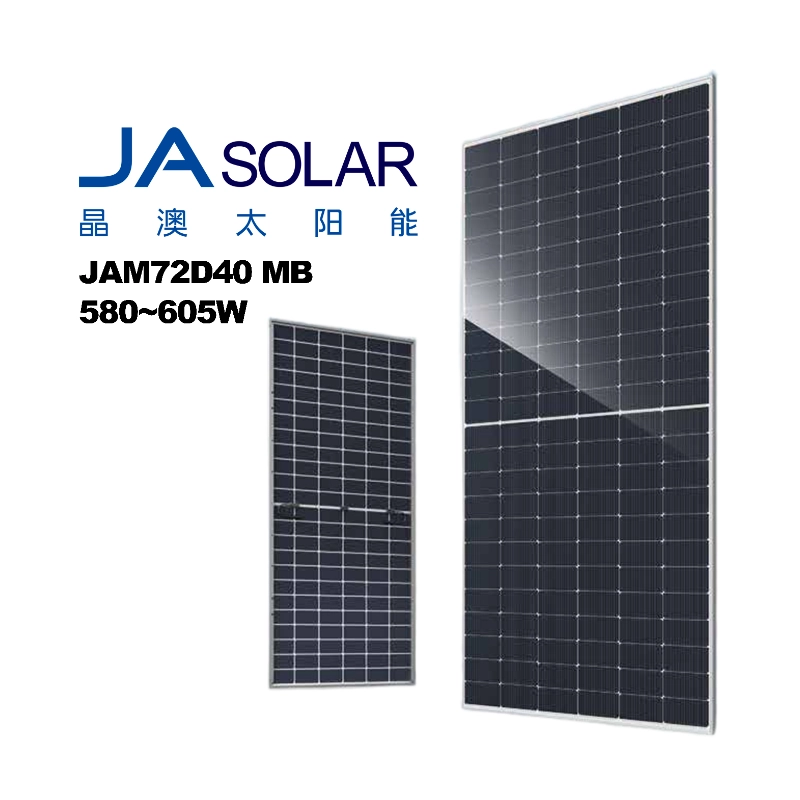

JA SOLAR JAM72D40 MB 580~605W Dual glass solar panels

IEC61215,IEC 61730,UL61215,UL61730
ISO 9001:2015Quality management systems
ISO 14001:2015Environmental management systems
ISO 45001:2018 Occupational health and safetymanagement systems
IEC 62941:2019 Terrestrial photovoltaic(PV)modules-Qualitysystem for PV module manufacturing

Cell	Mono
Weight	31.8kg

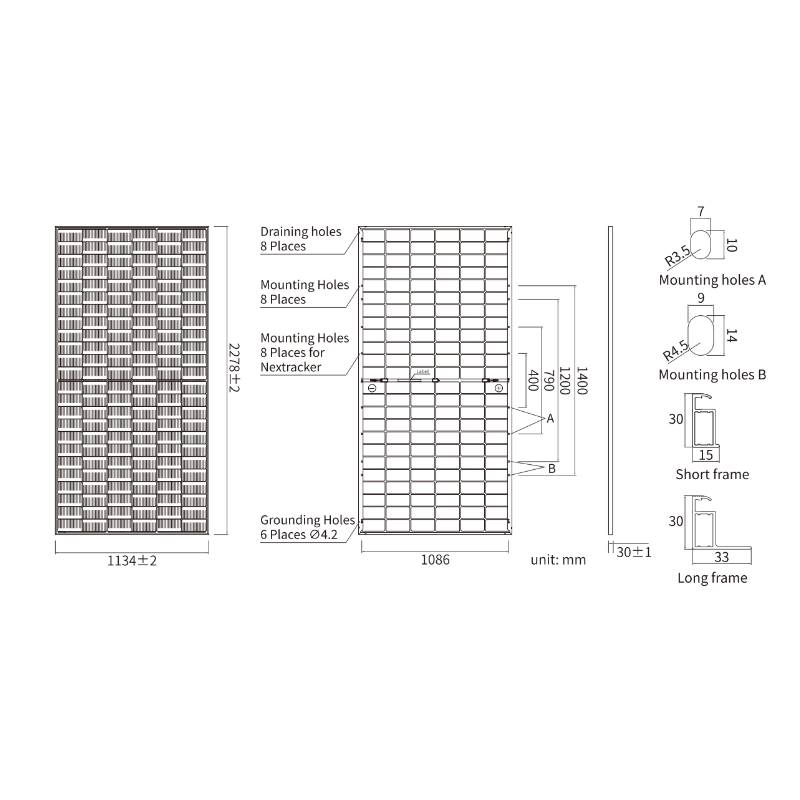

Dimensions	2278±2mm×1134±2mm×30±1mm
Cable Cross Section Size	4mm²(IEC),12 AWG(UL)
No.of cells	144(6×24)
Junction Box	IP68,3diodes
Connector	QC 4.10-351/MC4-EVO2A
Cable Length (Including Connector)	Portrait:300mm(+)/400mm(-) Landscape:1300mm(+)/1300mm(-)
Front Glass/Back Glass	2.0mm/2.0mm
Packaging Configuration	36pcs/Pallet,720pcs/40HQ Container
