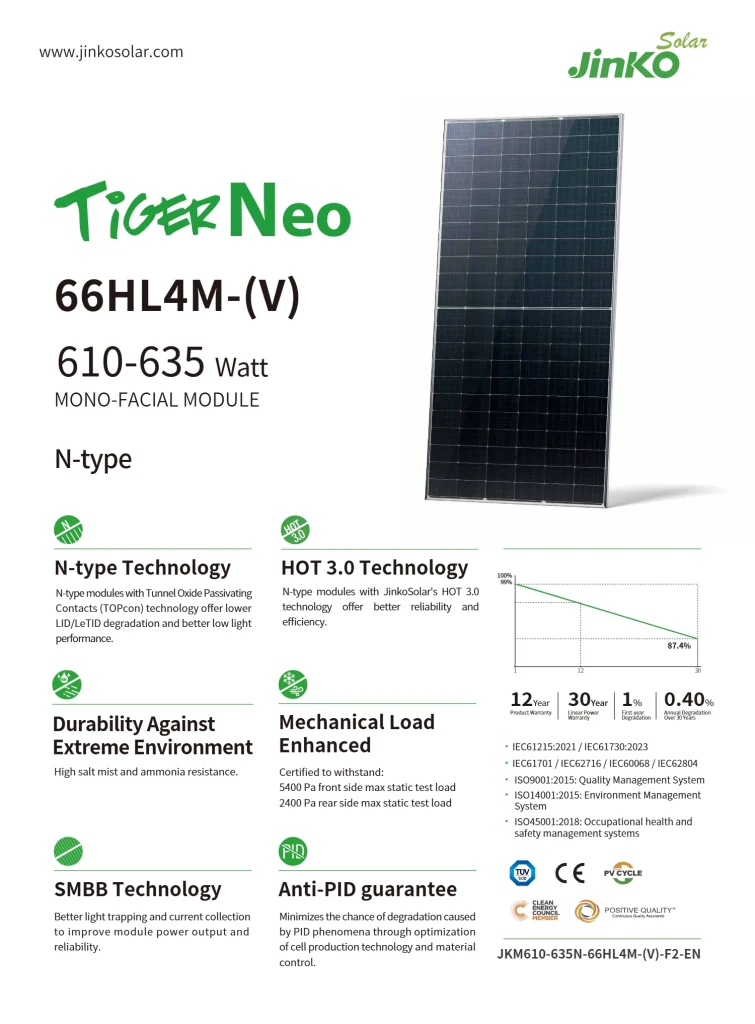

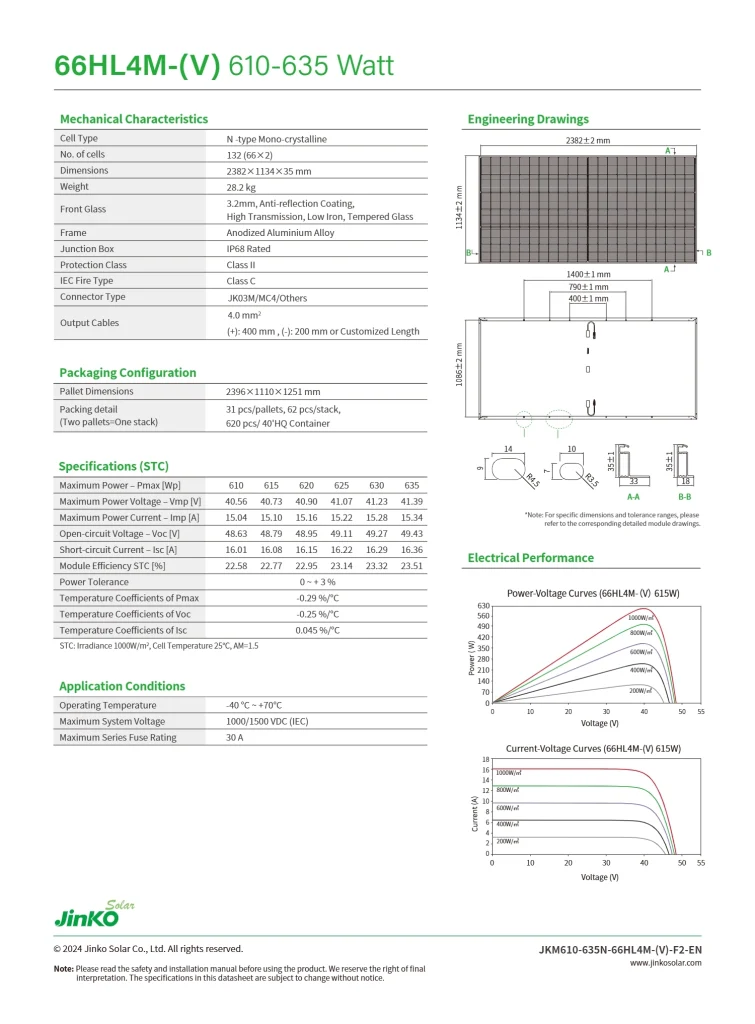

Data Sheet

Solar Panels

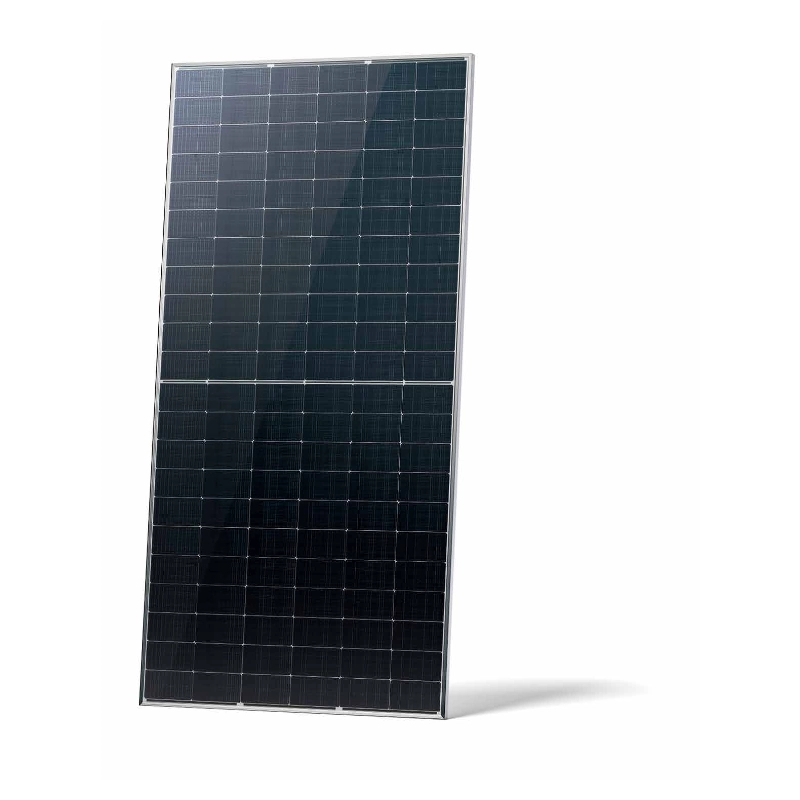

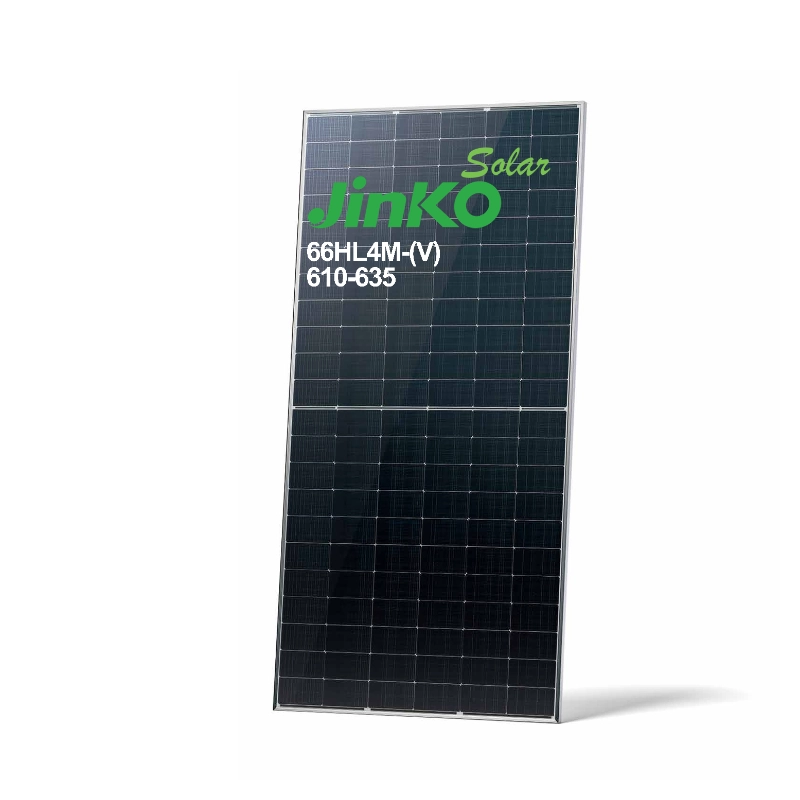

JinKo 66HL4M-(V) 610-635W Single glass solar panels

610W
615W
620W
630W
635W

Description:

N-type Technology
N-type modules with Tunnel Oxide Passivating
Contacts (TOPcon) technology offer lower
LID/LeTID degradation and better low light
performance.

HOT 3.0 Technology
N-type modules with JinkoSolar's HOT 3.0
technology offer better reliability and
efficiency

Durability Against
Extreme Environment High salt mist and ammonia resistance.

Mechanical Load Enhanced

Certified to withstand:
5400 Pa front side max static test load
2400 Pa rear side max static test load

SMBB Technology

Better light trapping and current collection
to improve module power output and
reliability.

Anti-PID guarantee

Minimizes the chance of degradation caused
by PID phenomena through optimization
of cell production technology and material
control.

Product parameters:

Cell Type	N-type Mono-crystalline
No.of cells	132(66×2)

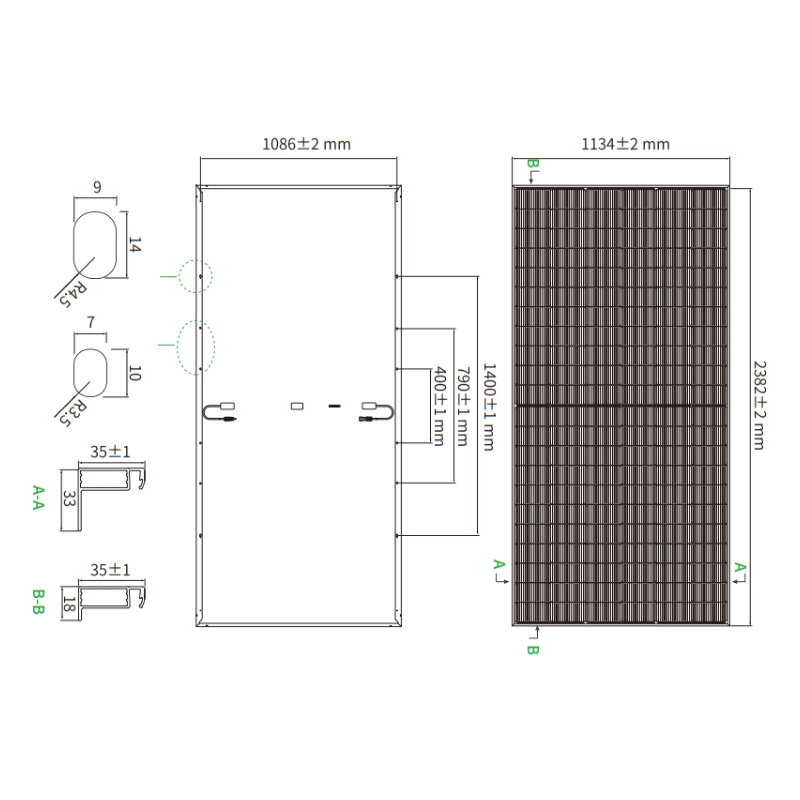

Dimensions	2382×1134×35 mm
Weight	28.2kg
Front Glass	3.2mm,Anti-reflection Coating, High Transmission,Low Iron,Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class Il
IEC Fire Type	Class C
Connector Type	JK03M/MC4/Others
Output Cables	4.0 mm² (+):400 mm,(-):200 mm or Customized Leng
