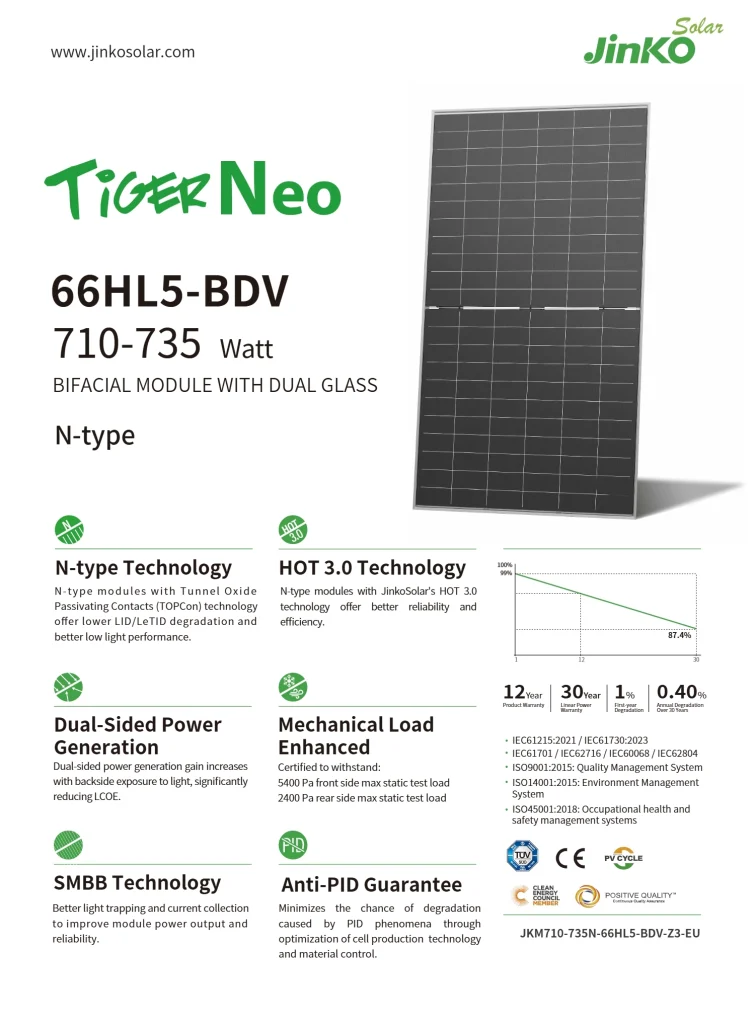

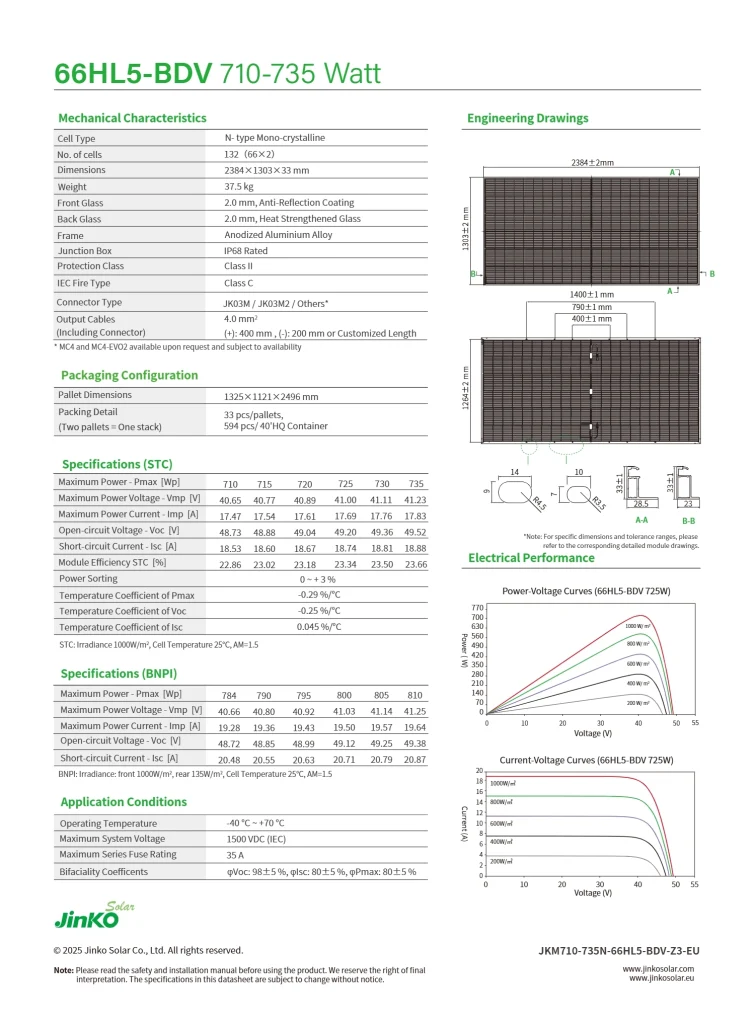

Data Sheet

Solar Panels

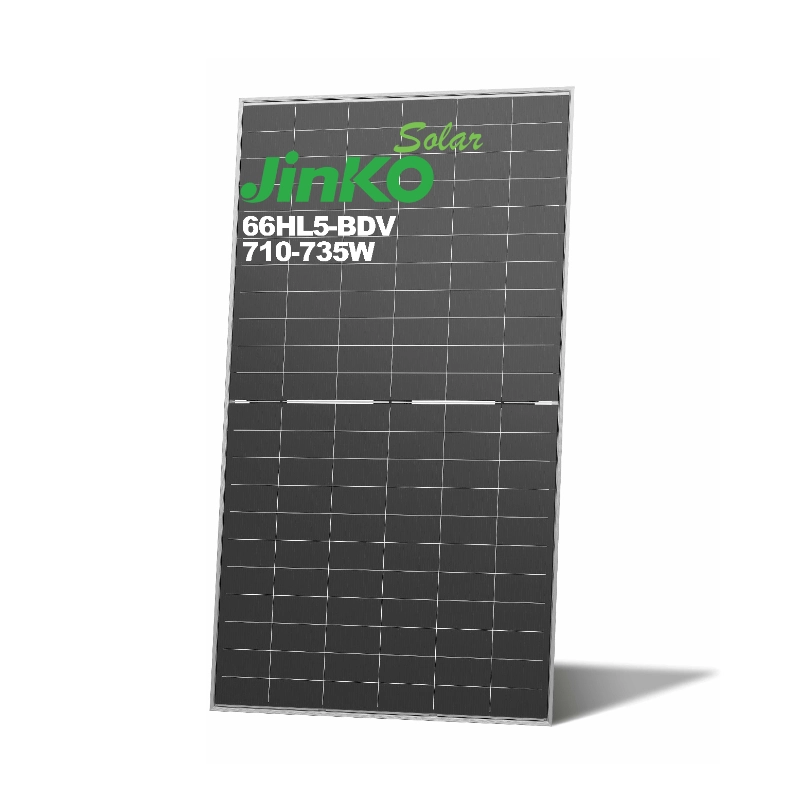

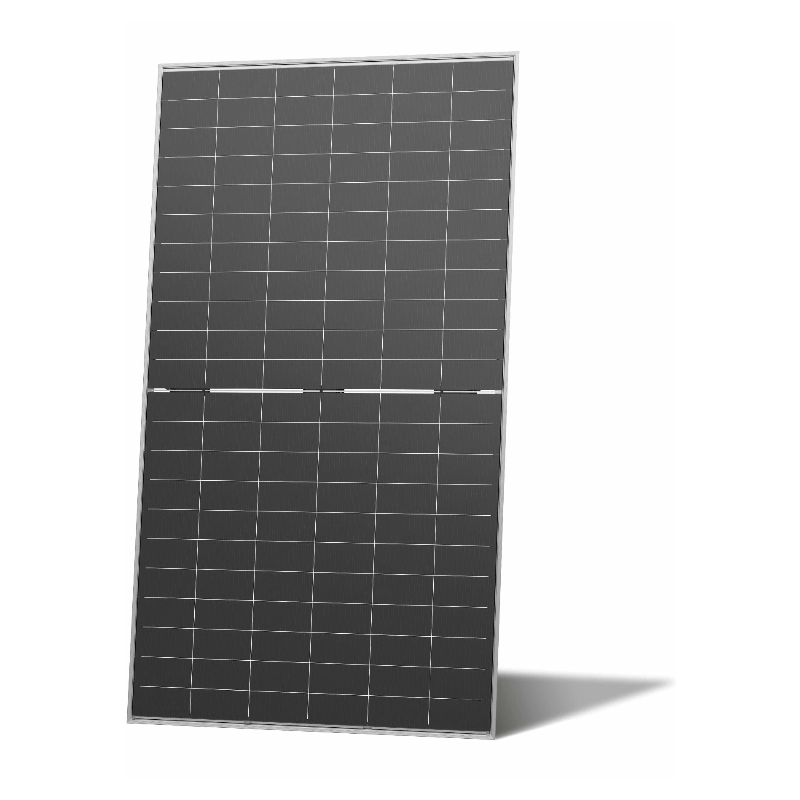

JinKo 66HL5-BDV 710~735W Dual glass solar panels

710W
715W
720W
725W
730W
735W

Description:

N-type Technology

N-type modules with Tunnel OxidePassivating Contacts(TOPCon)technologyoffer lower LID/LeTID degradation andbetter low light performance.

HOT 3.0 Technology

N-type modules with JinkoSolar's HOT 3.0technology offer better reliability andefficiency.

Dual-Sided Power Generation

Dual-sided power generation gain increaseswith backside exposure to light,significantlyreducing LCOE.

Mechanical Load Enhanced

Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load

SMBB Technology

Betterlight trapping and current collectionto improve module power output andreliability.

Anti-PID Guarantee

Minimizes the chance of degradation caused by PID phenomena throughoptimization of cell production technologyand material control.

Product parameters:

Cell Type	N-type Mono-crystalline
No.of cells	132(66×2)

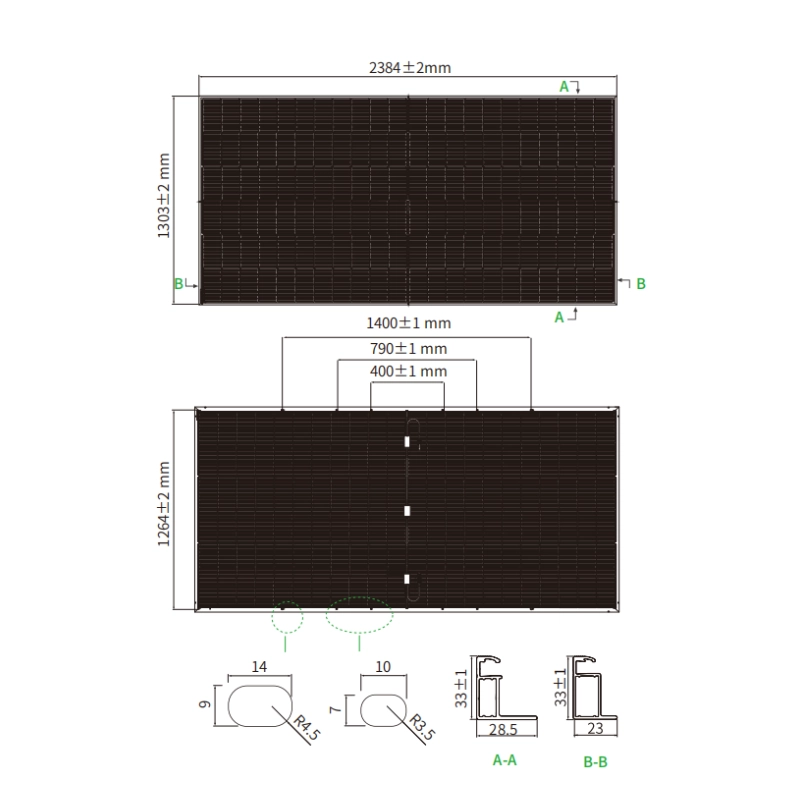

Dimensions	2384×1303×33 mm
Weight	37.5 kg
Front Glass	2.0 mm,Anti-Reflection Coating
Back Glass	2.0 mm,Heat Strengthened Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Protection Class	Class Il
IEC Fire Type	Class C
Connector Type	JK03M/JK03M2/Others*
Output Cables (Including Connector)	4.0 mm² (+):400 mm,(-):200 mm or Customized Length
