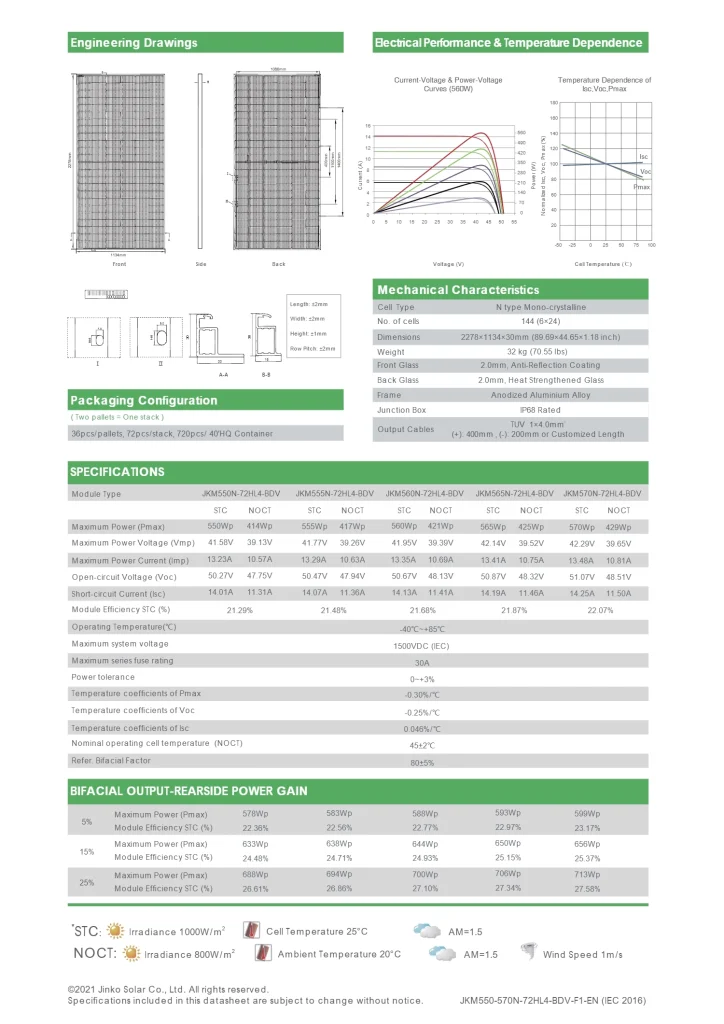

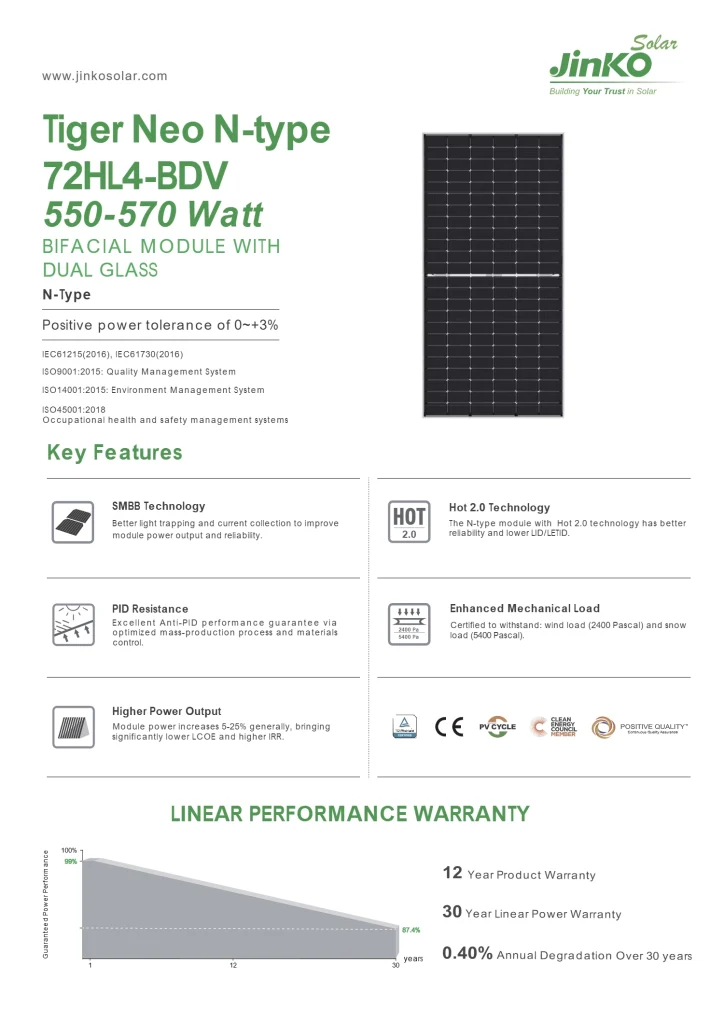

    Data Sheet

    Solar Panels

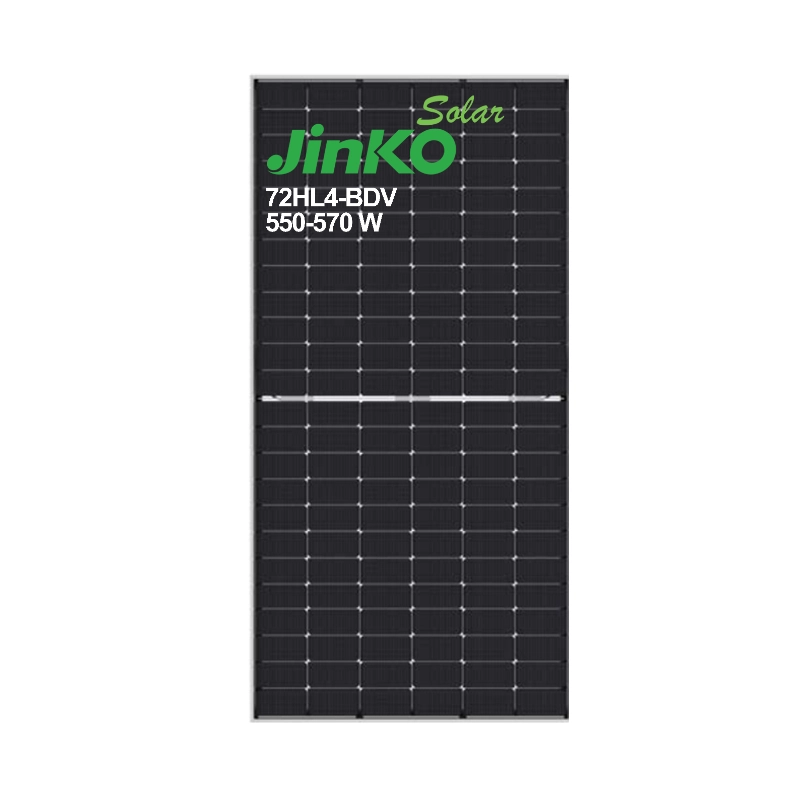

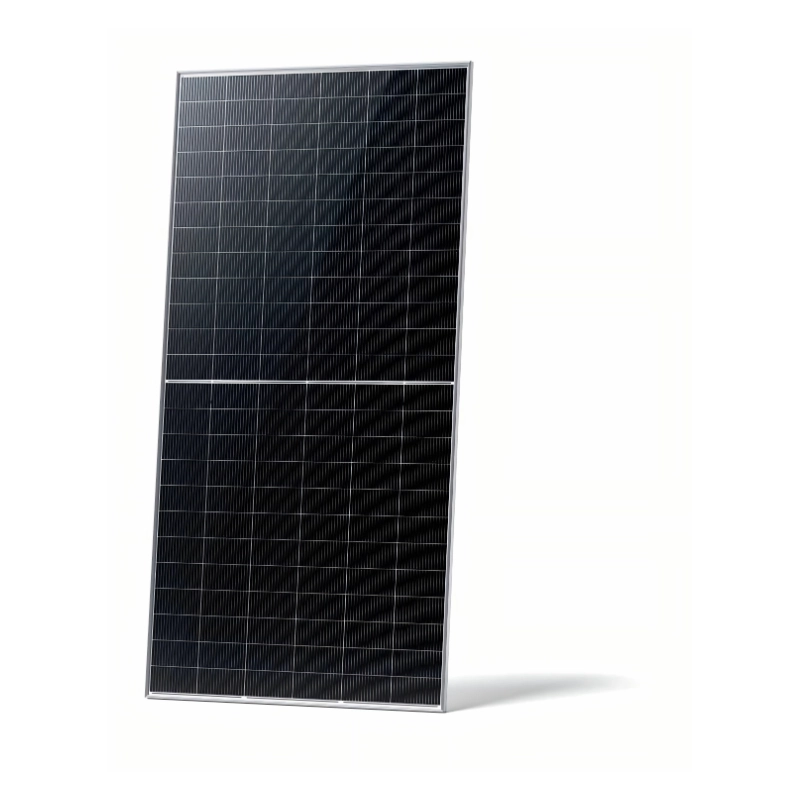

    JinKo 72HL4-BDV 550-570W Dual glass solar panels

    550W
    555W
    560W
    565W
    570W

    Description:

    SMBB Technology

    • Better light trapping and current collection to improve module power output and reliability.

    Hot 2.0 Technology

    • The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.

    PID Resistance

    • Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

    Enhanced Mechanical Load

    • Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

    Higher Power Output

    • Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.


    Product parameters:

    Cell Type N type Mono-crystalline
    No.of cells 144(6×24)

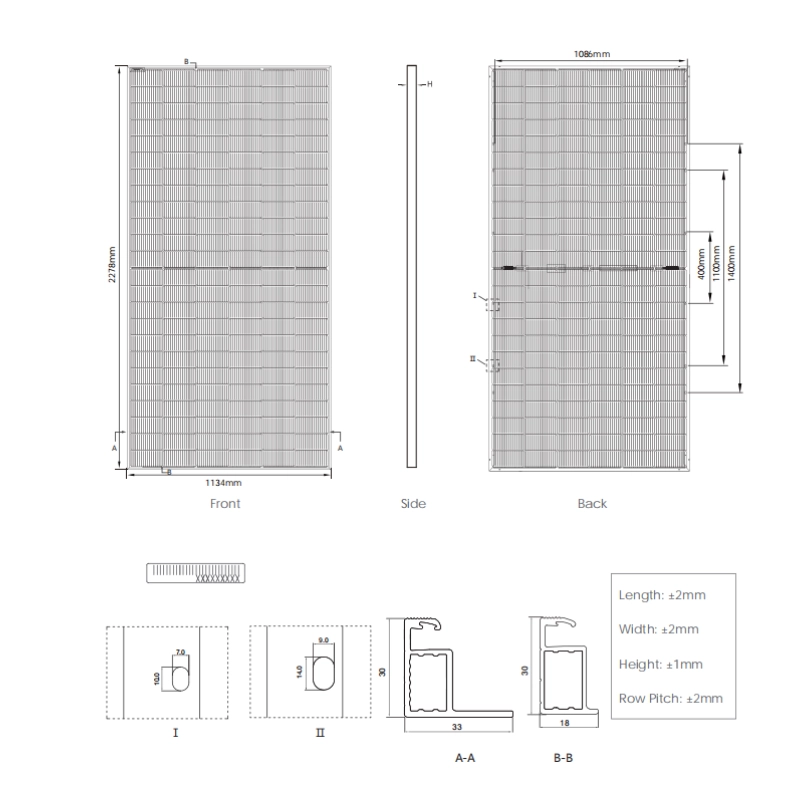

    Dimensions 2278×1134×30mm(89.69×44.65×1.18 inch)
    Weight 32 kg(70.55 Ibs)
    Front Glass 2.0mm,Anti-Reflection Coating
    Back Glass 2.0mm,Heat Strengthened Glass
    Frame Anodized Aluminium Alloy
    Junction Box IP68 Rated
    Output Cables TUV 1×4.0mm
    (+):400mm,(-):200mm or Customized Length
