Data Sheet

Solar Panels

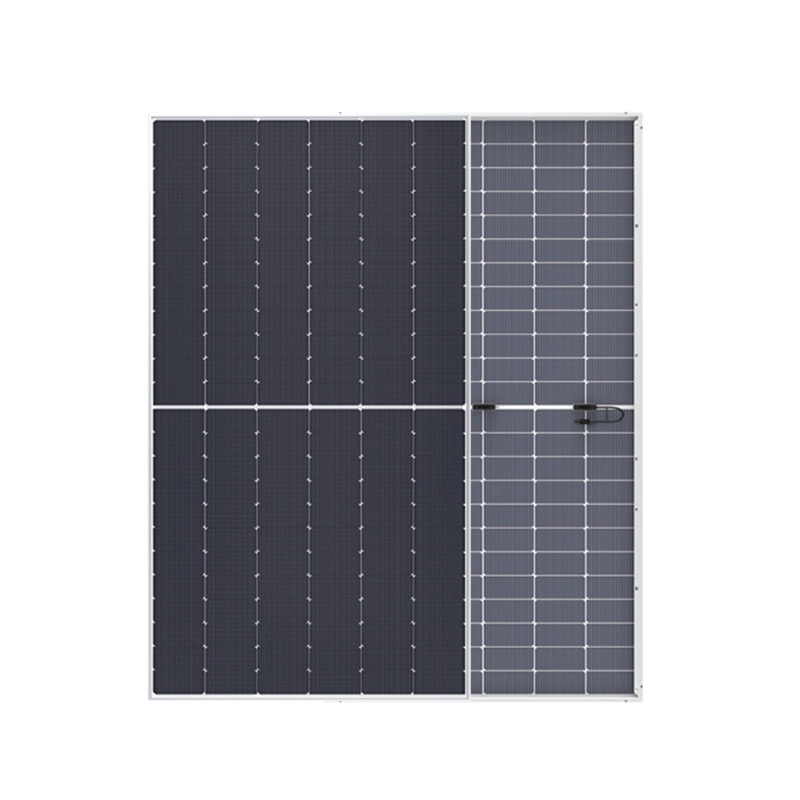

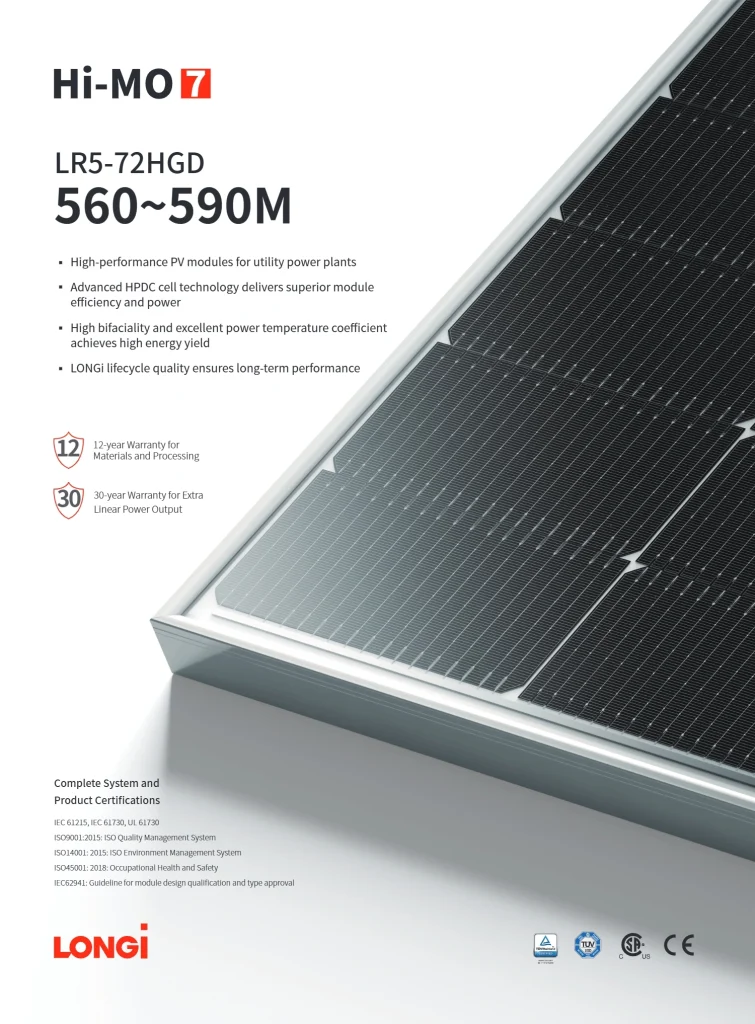

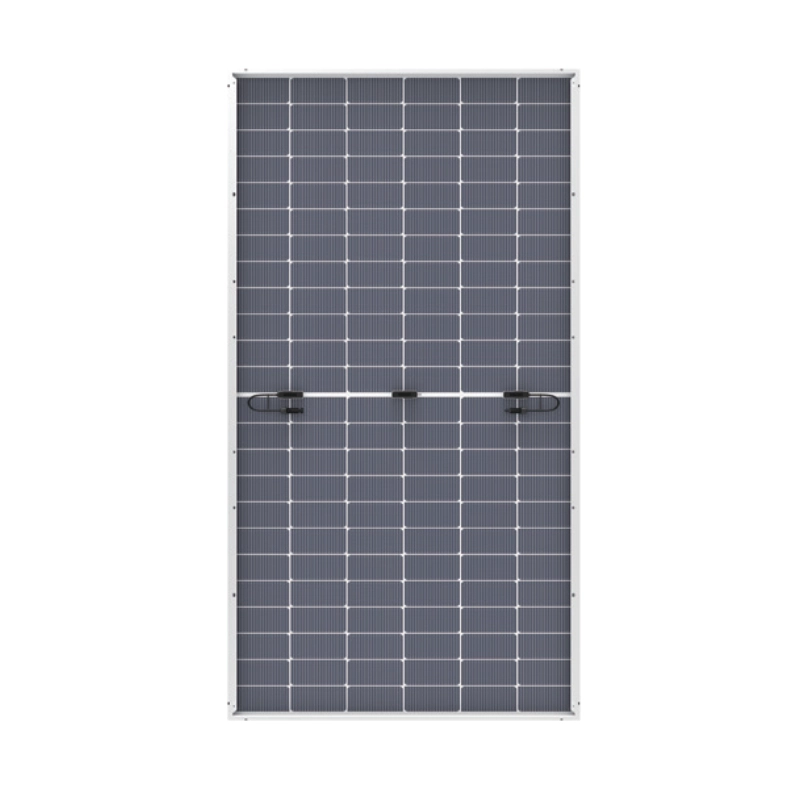

Longi Hi-MO 7 LR5-72HGD 560~590M Single glass solar panels

High-performance PV modules for utility power plants
Advanced HPDC cell technology delivers superior module efficiency and power
High bifaciality and excellent power temperature coefficient achieves high energy yield
LONGi lifecycle quality ensures long-term performance

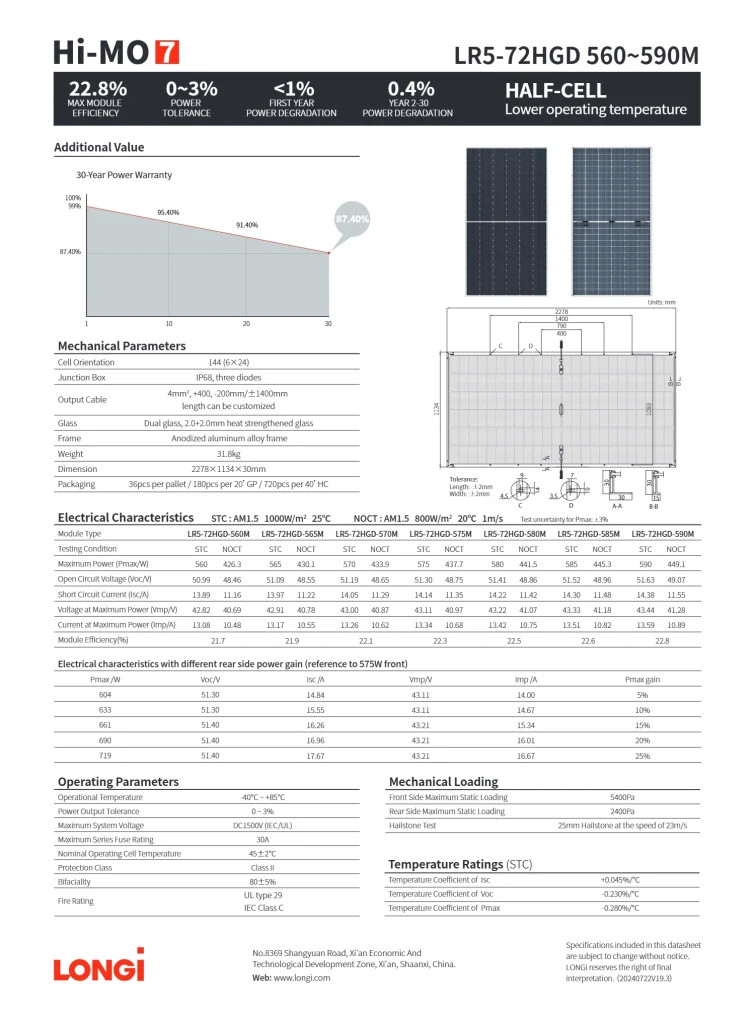

Cell Orientation	144(6×24)
Junction Box	IP68,three diodes
Output Cable	4mm²,+400,-200mm/±1400mm length can be customized
Glass	Dual glass,2.0+2.0mm heat strengthened glass
Frame	Anodized aluminum alloy frame
Weight	31.8kg
Dimension	2278×1134×30mm
Packaging	36pcs per pallet/180pcs per 20'GP/720pcs per 40'HC
