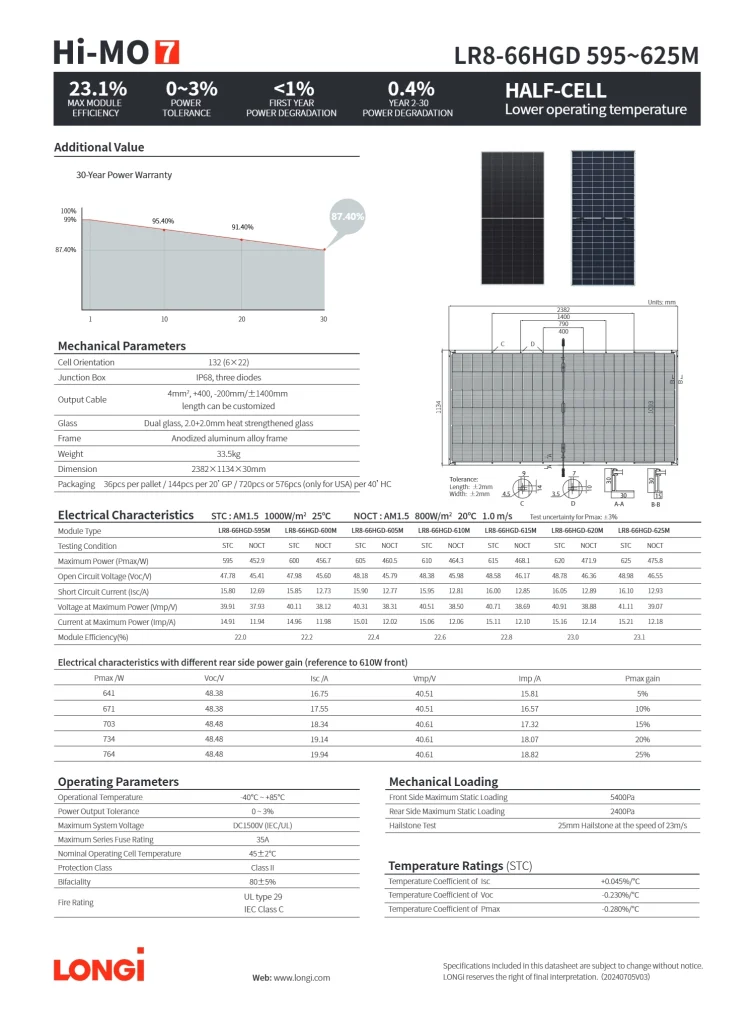

Data Sheet

Solar Panels

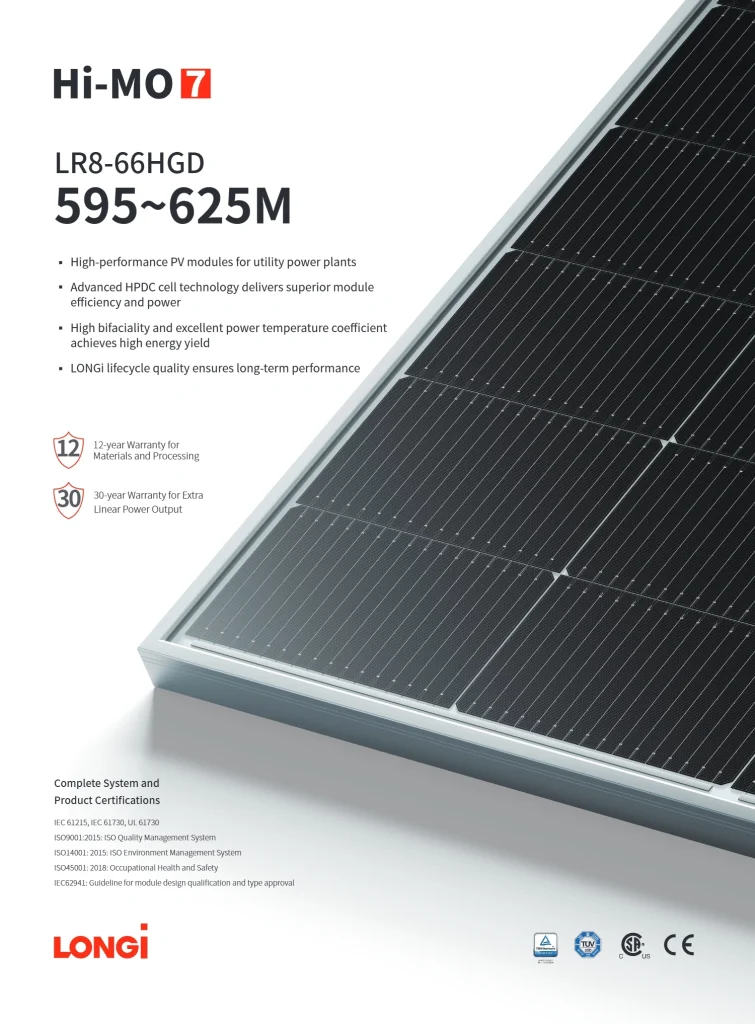

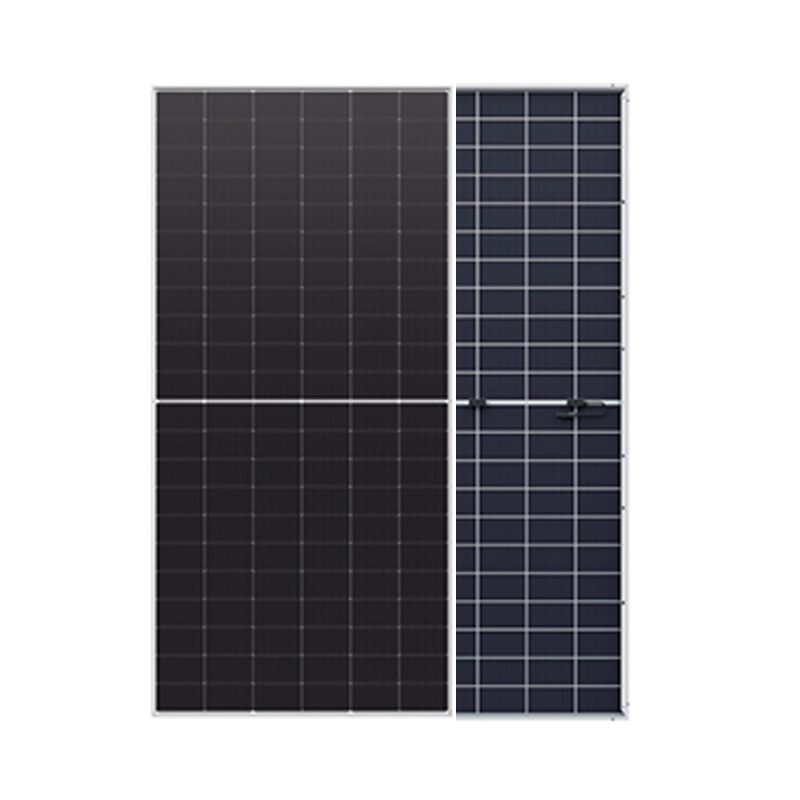

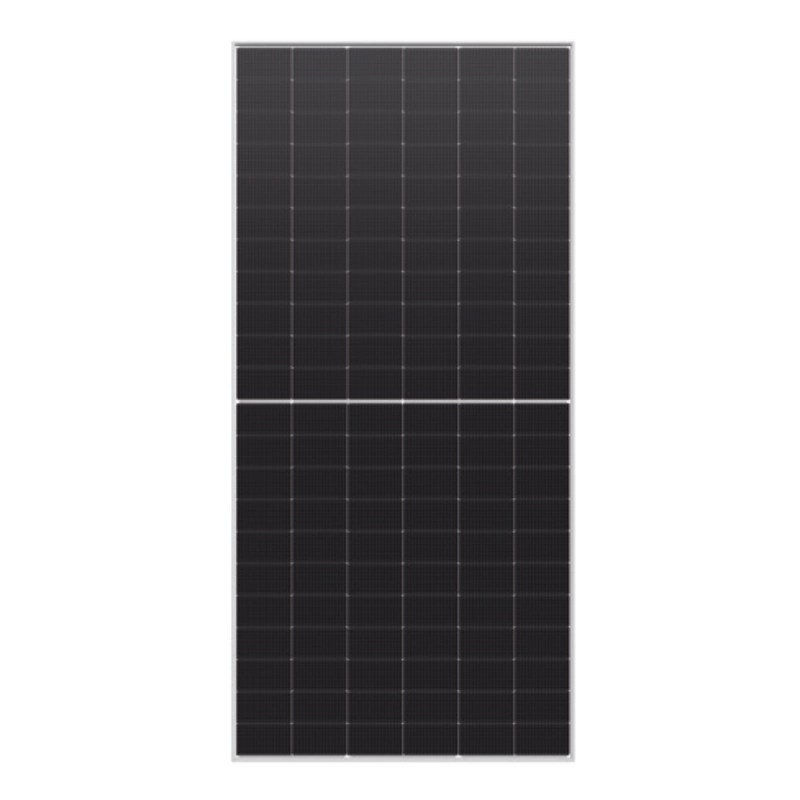

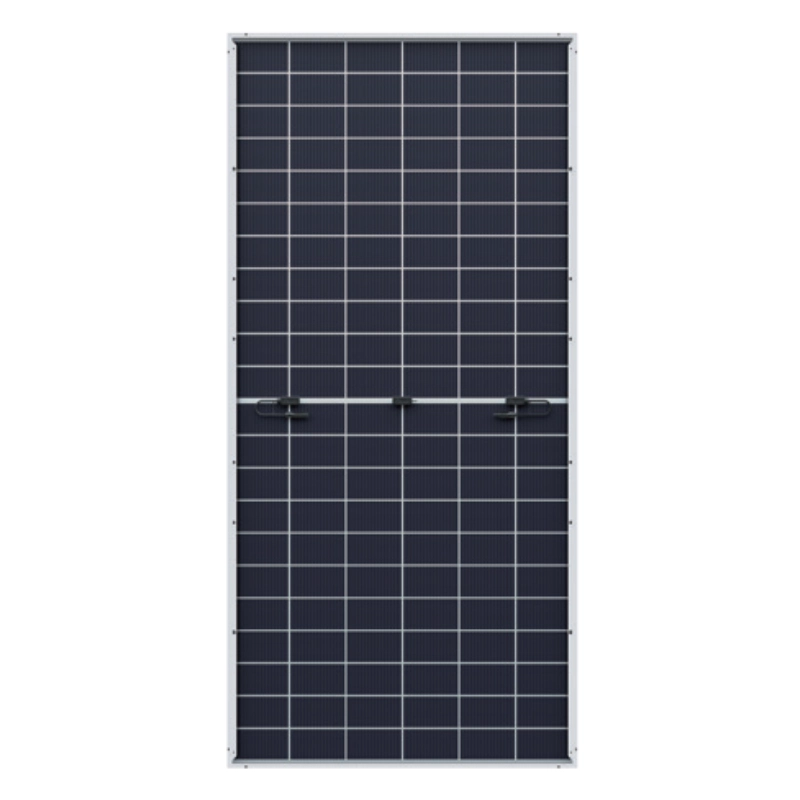

Longi Hi-MO 7 LR8-66HGD 595~625M Dual glass solar panels

High-performance PV modules for utility power plants
Advanced HPDC cell technology delivers superior module efficiency and power
High bifaciality and excellent power temperature coefficient achieves high energy yield
LONGi lifecycle quality ensures long-term performance

Cell Orientation	132(6×22)
Junction Box	IP68,three diodes
Output Cable	4mm²,+400,-200mm/±1400mm length can be customized
Glass	Dual glass,2.0+2.0mm heat strengthened glass
Frame	Anodized aluminum alloy frame
Weight	33.5kg
Dimension	2382×1134×30mm
Packaging	36pcs per pallet/144pcs per 20'GP/720pcs or576pcs(only forUSA)per 40'HC
