    HomeProductsSolar PanelsLongi Hi-MO X10 Guardian LR7-60HVHL 535~560M Single glass solar panels

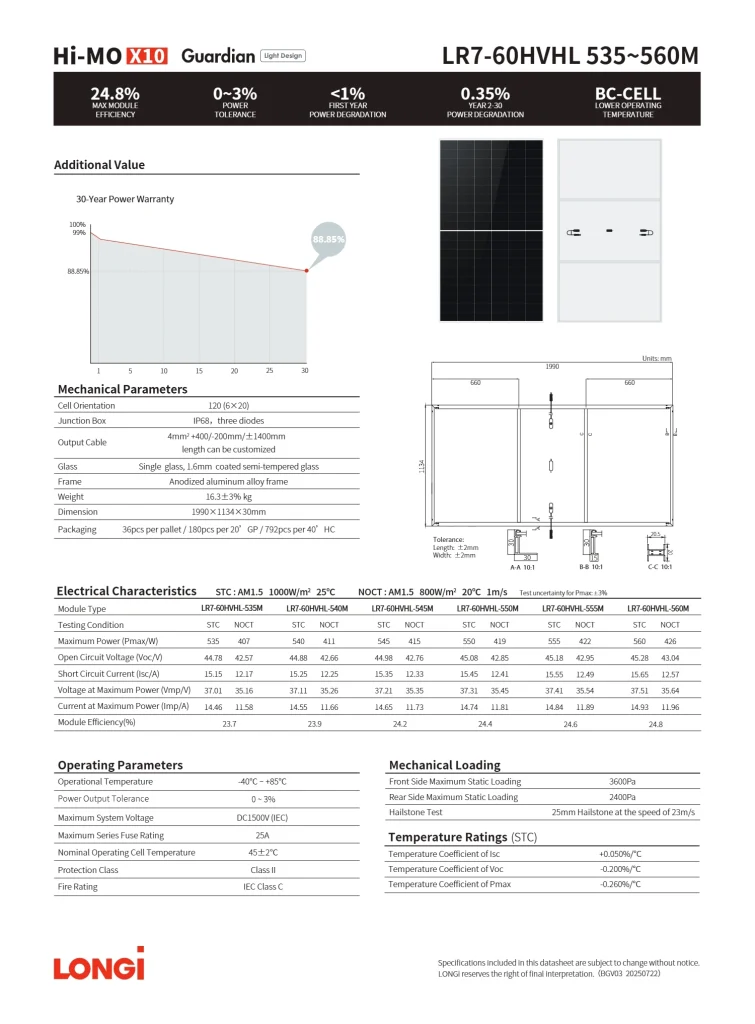

    Data Sheet

    Solar Panels

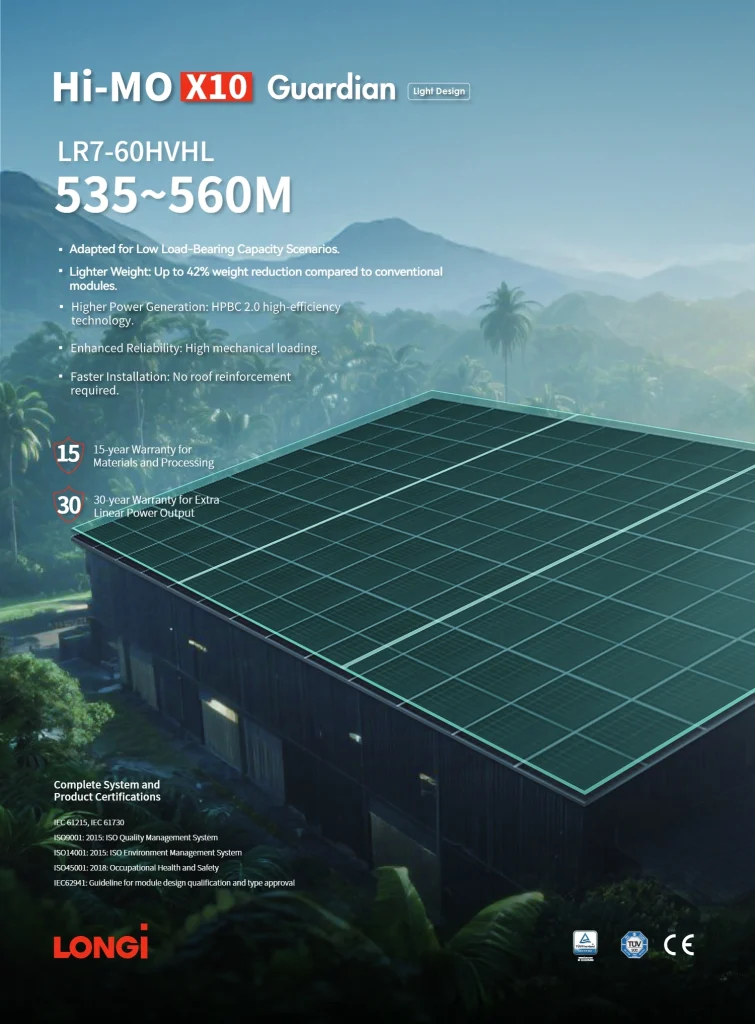

    Longi Hi-MO X10 Guardian LR7-60HVHL 535~560M Single glass solar panels

    535W
    540W
    545W
    550W
    555W
    560W

    Description:

    • ·Adapted for Low Load-Bearing Capacity Scenarios.
    • ·Lighter Weight: Up to 42%weight reduction compared to conventional modules.
    • Higher Power Generation: HPBC 2.0 high-efficiency technology.
    • Enhanced Reliability: High mechanical loading.
    • Faster Installation: No roof reinforcement required.

    Product parameters:

    Cell Orientation           120(6×20)
    Junction Box IP68,three diodes
      4mm²+400/-200mm/±1400mm
    Output Cable length can be customized
    Glass Single glass,1.6mm coated semi-tempered glass
    Frame Anodized aluminum alloy frame
    Weight 16.3±3%kg
    Dimension 1990×1134×30mm
    Packaging 36pcs per pallet/180pcs per 20’GP/792pcs per40’HC

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    535~560 W | Single glass

    production process

    Packaging And Delivery

    Products Center

    Tags:

    535W 540W 545W 550W 555W 560W Single glass solar panels
