Data Sheet

Solar Panels

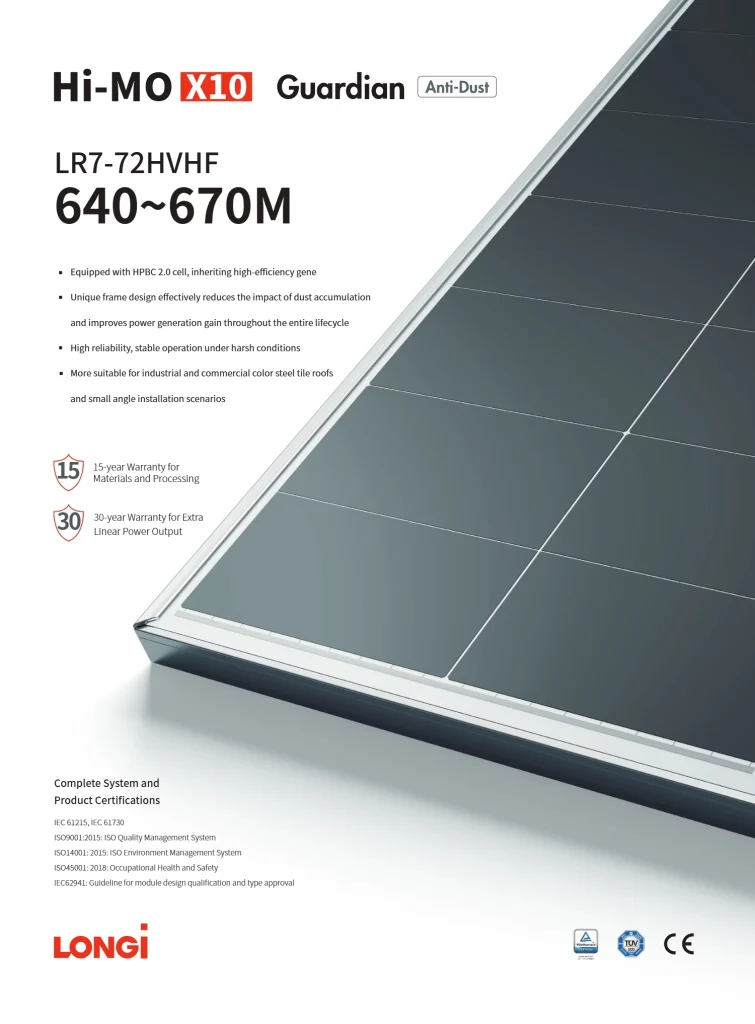

Longi Hi-MO X10 Guardian LR7-72HVDF 640~670M Single glass solar panels

Equipped with HPBC 2.0 cell, inheriting high-efficiency gene
Unique frame design effectively reduces the impact of dust accumulation and improves power generation gain throughout the entire lifecycle
High reliability, stable operation under harsh conditions
More suitable for industrial and commercial color steel tile roofs and small angle installation scenarios

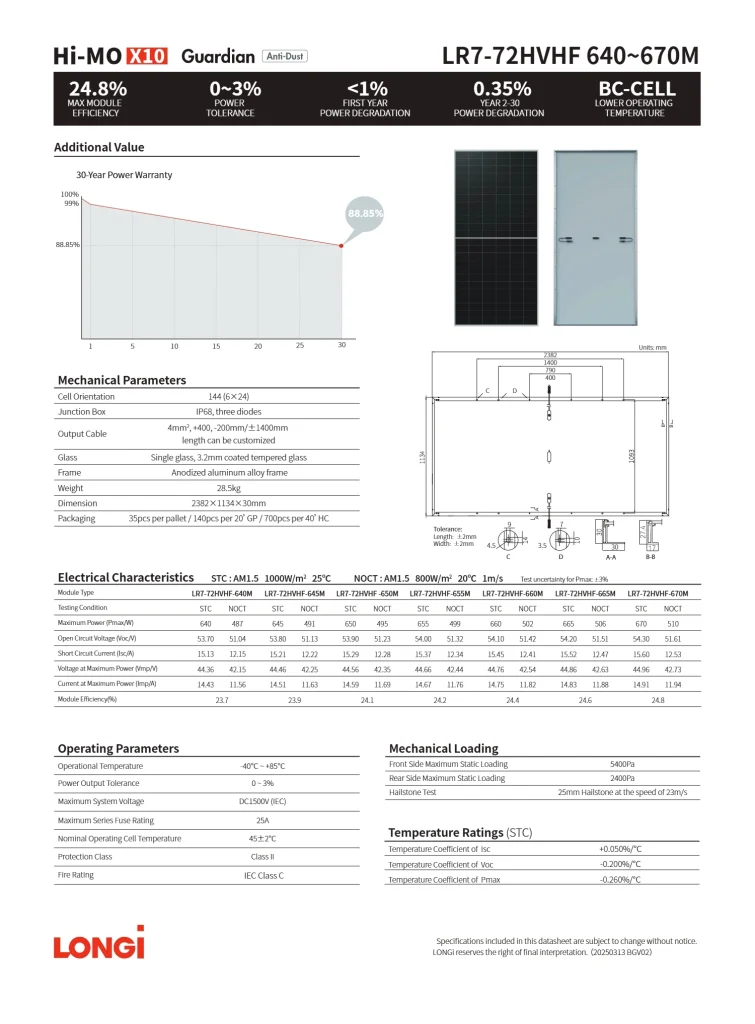

Cell Orientation	144(6×24)
Junction Box	IP68,three diodes
Output Cable	4mm²,+400,-200mm/±1400mm length can be customized
Glass	Single glass,3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Weight	28.5kg
Dimension	2382×1134×30mm
Packaging	35pcs per pallet/140pcs per 20'GP/700pcs per40'HC
