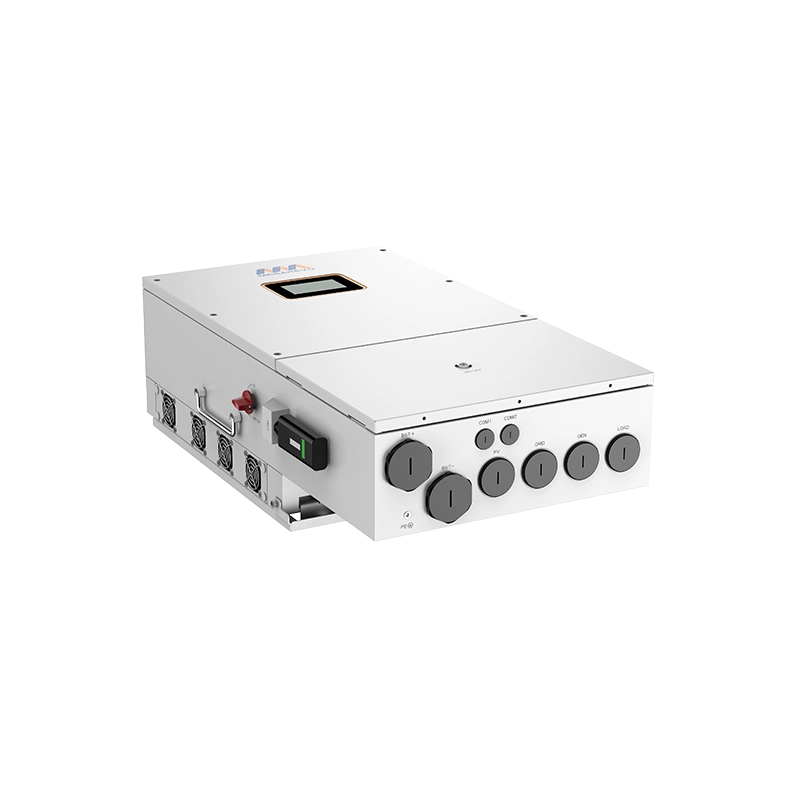

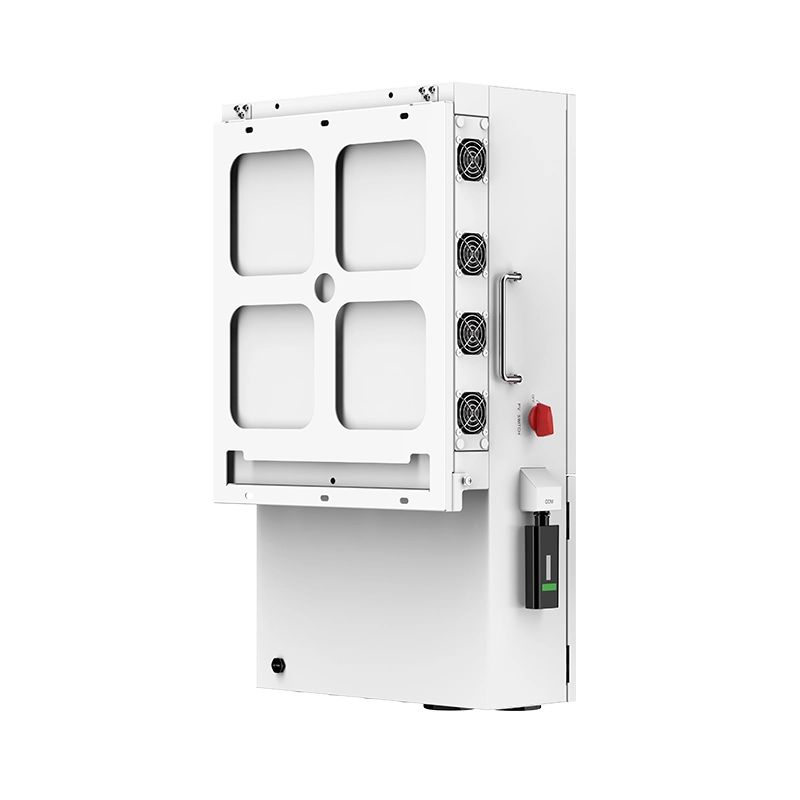

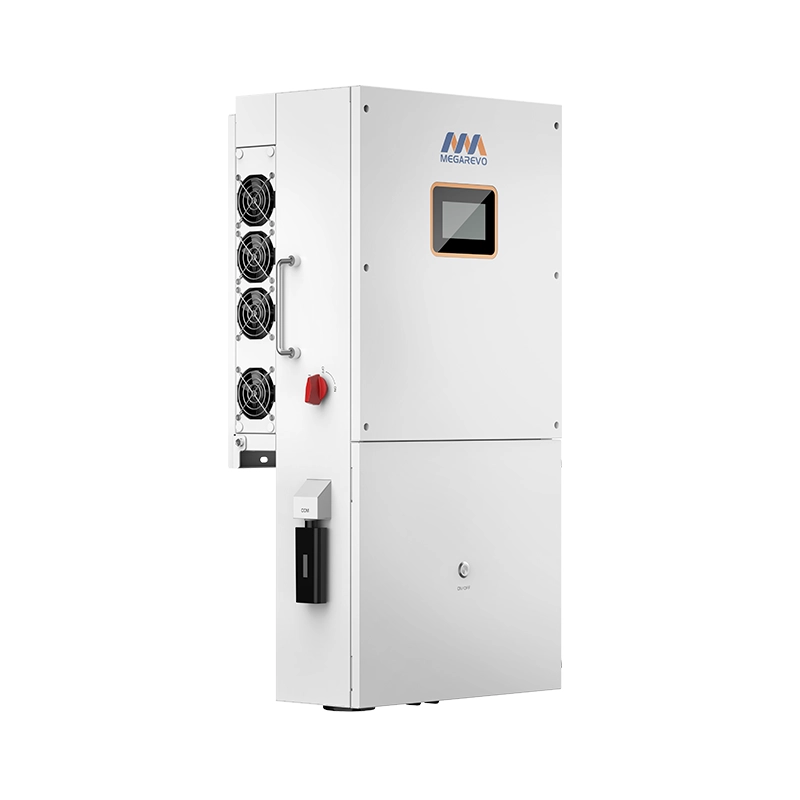

Split-Phase hybrid inverter | 5~16kW | 4/1 MPPTs | Low-voltage

The North American low-voltage hybrid inverter series is specifically designed for home energy storage, featuring a 48V battery system and split-phase output. With support for parallel connection of up to 6 devices, the Megarevo hybrid split phase inverter, coupled with an intelligent display, offer enhanced convenience for operation and maintenance.

Safe and Reliable

Megarevo’s split phase hybrid inverter has passed UL 1741:2021, IEEE 1547.1, UL 1699B, and South Africa’s NRS097-2-1:2017, demonstrating compliance with key grid-interconnection and safety standards.

Friendly and Flexible
Megarevo split phase hybrid inverter supports multi-machine parallel connection and parallel operation with a shared battery pack. Each single unit offers a load capacity of 100A. The inverter enables users to easily expand system capacity and ensure a stable power supply for residential applications.d loads.

Economical and Efficient

Our 48V split phase inverter supports parallel SOC equalization control and parallel current sharing control. By using a split-phase topology that eliminates the need for transformers, its system achieves higher efficiency. The inverter supports both the diesel generator and grid access simultaneously, ensuring a reliable and flexible power supply.
