    HomeProductsSolar InvertersMegarevo MPS hybrid inverter MPS0030~500/MPS0100~150-G3 How-voltage Split-Phase/Three-Phase hybrid inverter

    Data Sheet

    Solar Inverters

    Megarevo MPS hybrid inverter MPS0030~500/MPS0100~150-G3 How-voltage Split-Phase/Three-Phase hybrid inverter

    30kw
    50kw
    100kw
    150kw
    250kw

    Description:

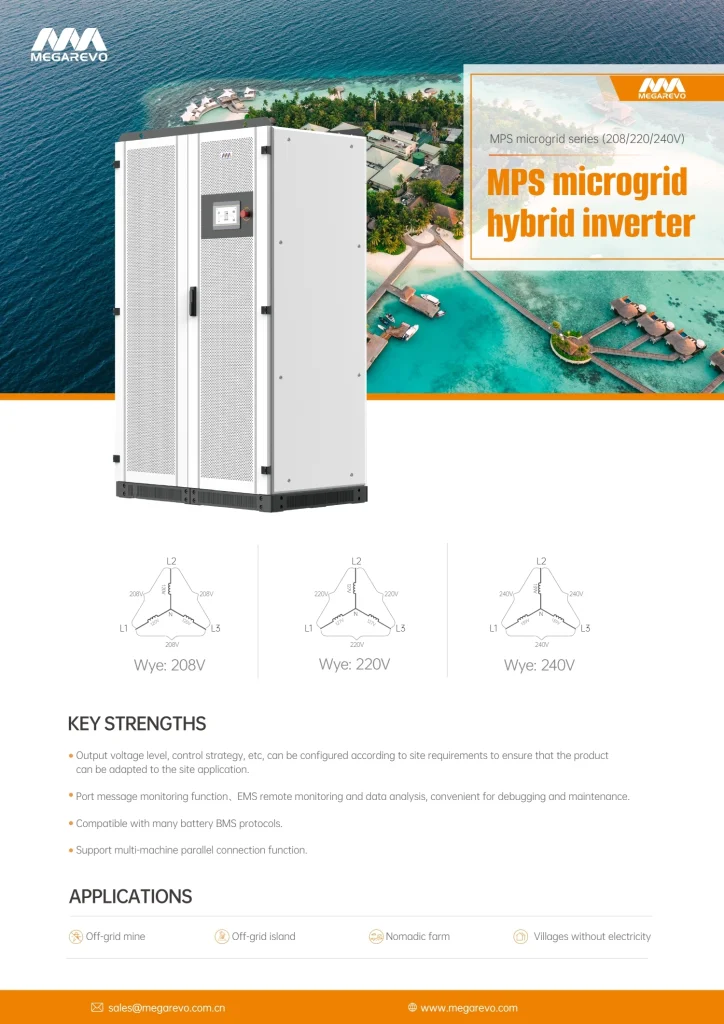

         MPS microgrid series (208/220/240V)

    • Output voltage level, control strategy, etc, can be configured according to site requirements to ensure that the product
    • can be adapted to the site application.
    • Port message monitoring function、EMS remote monitoring and data analysis, convenient for debugging and maintenance.
    • Compatible with many battery BMS protocols.

    Support multi-machine parallel connection function.

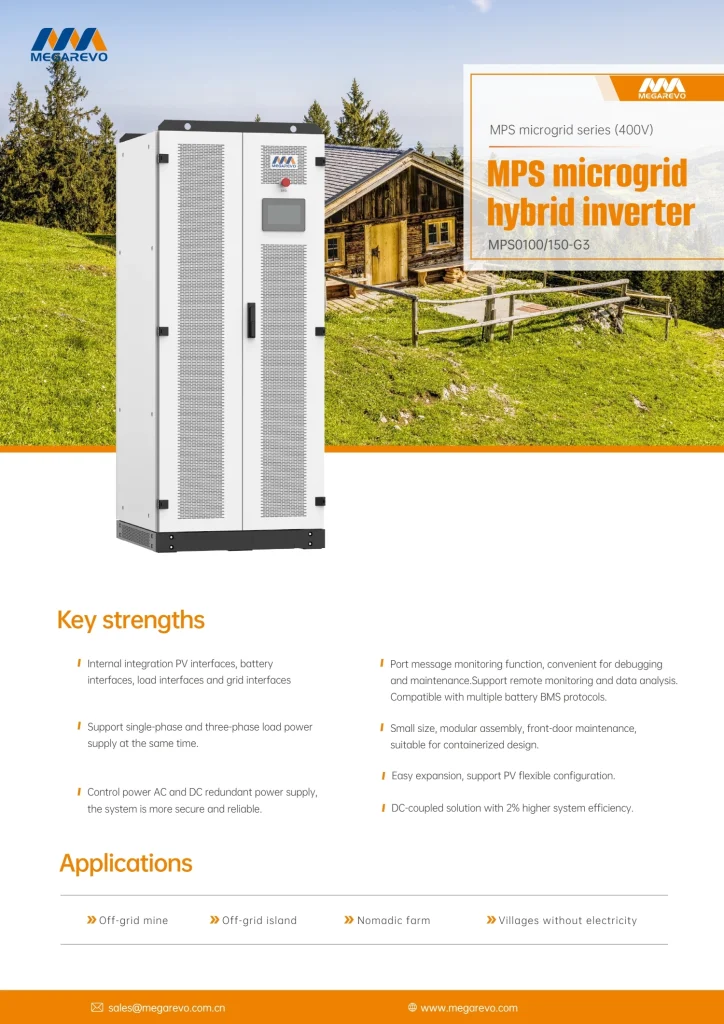

         MPS microgrid series (400V)

    • Internal integration PV interfaces, battery interfaces, load interfaces and grid interfaces

    • Port message monitoring function, convenient for debugging and maintenance.Support remote monitoring and data analysis.Compatible with multiple battery BMS protocols.

    • Support single-phase and three-phase load power supply at the same time.

    • Small size, modular assembly, front-door maintenance, suitable for containerized design.

    • Easy expansion, support PV flexible configuration.

    • Control power AC and DC redundant power supply, the system is more secure and reliable.

    • DC-coupled solution with 2% higher system efficiency.

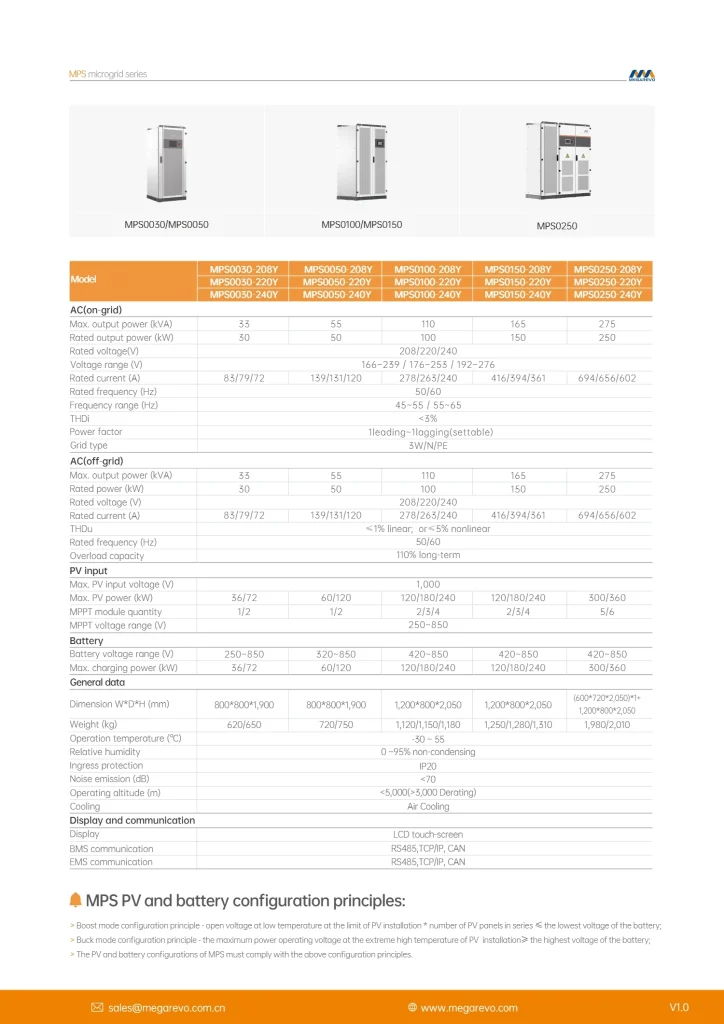

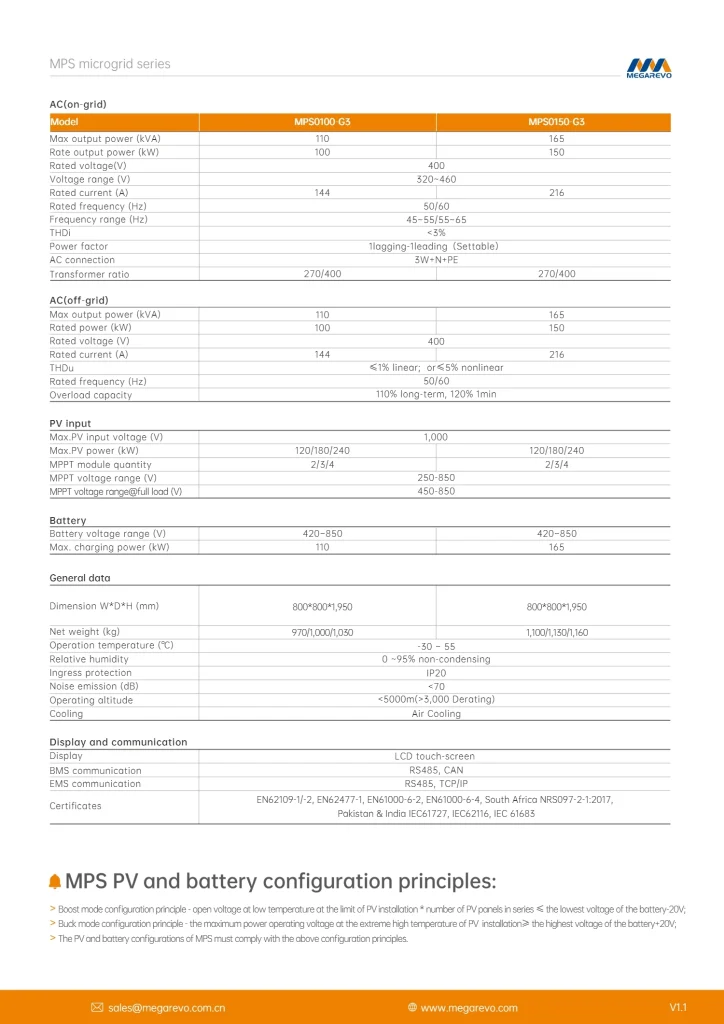

    Product parameters:

    Model

    MPS microgrid series (208/220/240V)

    MPS microgrid series (400V)

    Rated voltage(V)

    208/220/240

    		 400

    Rated frequency (Hz)

    50/60

    		 50/60

    MPPT voltage range (V)

    250~850

    250-850

    MPPT module quantity

    1/2           2/3/4           5/6

    2/3/4

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    Split-Phase/Three-Phase hybrid inverter | 30~500kW | High-voltage

    Megarevo MPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, greatly improving customer deployment efficiency and reducing installation costs. The PV capacity can be flexibly configured, greatly improving the microgrid system availability, and is suitable for remote areas and islands where power is relatively weak. Our microgrid inverter’s strong load adaptability and complete protection function ensure power supply security and stability.

    Safe and reliable

    Passed EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105 test certification;

    Flexible configuration

    Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start; Various working modes can be set flexibly;

    Convenient operation and maintenance

    Supports unattended operation , with an HMI digital display panel, which quickly judge the operating status and health of the equipment. Combined with cloud-based EMS, it can realize remote monitoring and management.

    production process

    Packaging And Delivery
