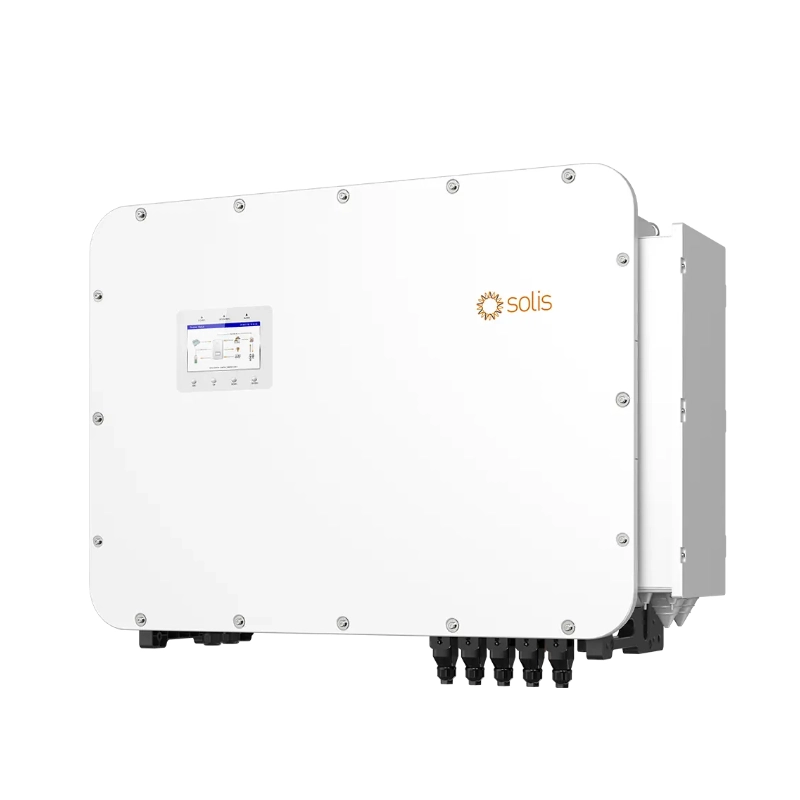

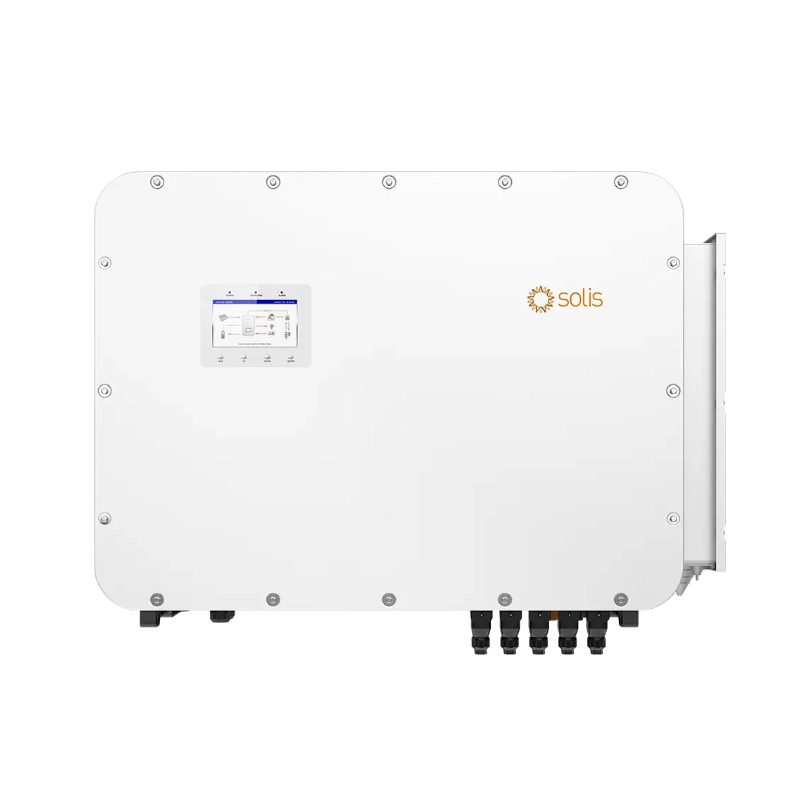

Solis S6-EH3P(75-125)K10-NV-YD-H High-voltage Three-phase Hybrid inverter

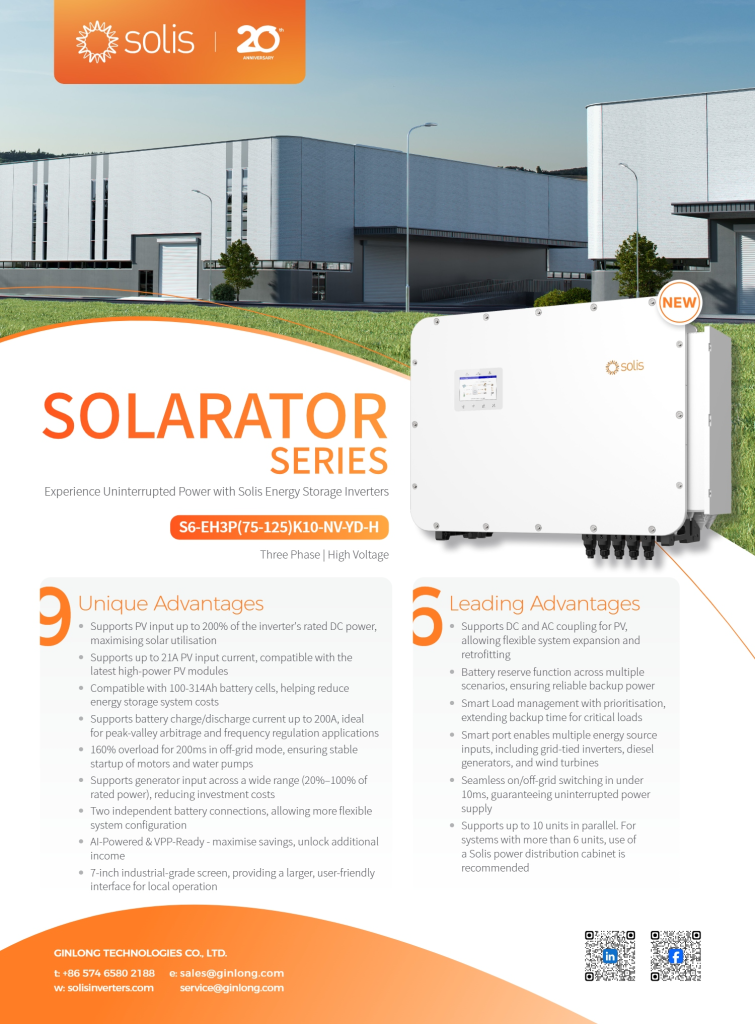

9 Unique Advantages

6 Leading Advantages

• Supports PV input up to 200% of the inverter's rated DC power, maximising solar utilisation

• Supports up to 21A PV input current, compatible with the latest high-power PV modules
• Compatible with 100-314Ah battery cells, helping reduce energy storage system costs
• Supports battery charge/discharge current up to 200A, ideal for peak-valley arbitrage and frequency regulation applications
• 160% overload for 200ms in off-grid mode, ensuring stable startup of motors and water pumps
• Supports generator input across a wide range (20%–100% of rated power), reducing investment costs
• Two independent battery connections, allowing more flexible system configuration
• AI-Powered & VPP-Ready - maximise savings, unlock additional income
• 7-inch industrial-grade screen, providing a larger, user-friendly interface for local operation

• Supports DC and AC coupling for PV, allowing flexible system expansion and retrofitting
• Battery reserve function across multiple scenarios, ensuring reliable backup power
• Smart Load management with prioritisation, extending backup time for critical loads
• Smart port enables multiple energy source inputs, including grid-tied inverters, diesel generators, and wind turbines
• Seamless on/off-grid switching in under 10ms, guaranteeing uninterrupted power supply
• Supports up to 10 units in parallel. For systems with more than 6 units, use of a Solis power distribution cabinet is recommended

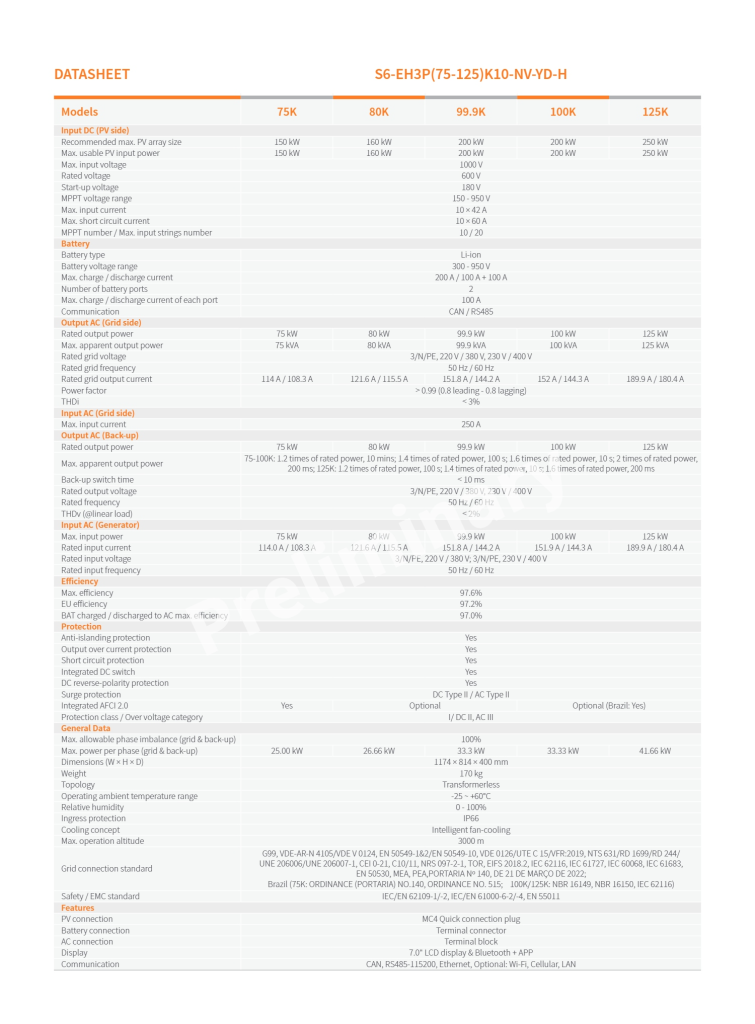

S6-EH3P(75-125)K10-NV-YD-H

MPPT voltage range

150 - 950 V

Battery voltage range

300 - 950 V

Rated grid voltage

3/N/PE, 220 V / 380 V, 230 V / 400 V

Rated grid frequency

50/60Hz
