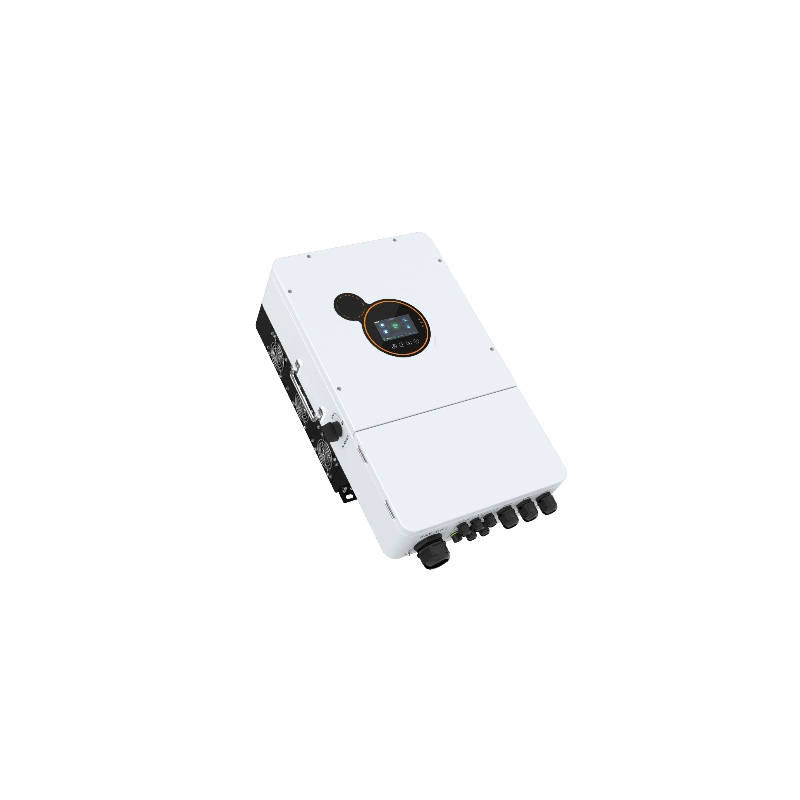

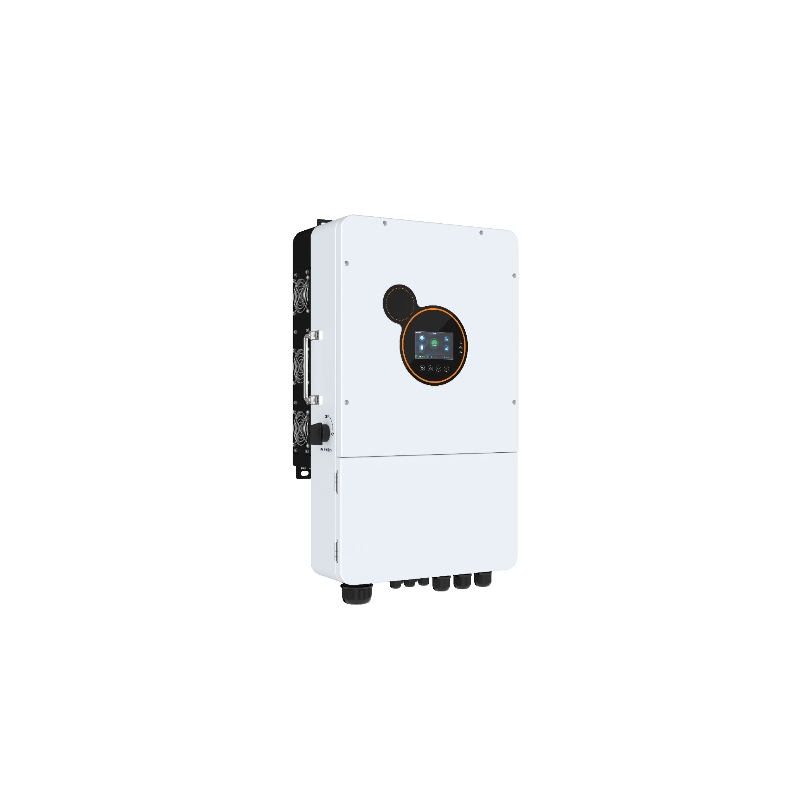

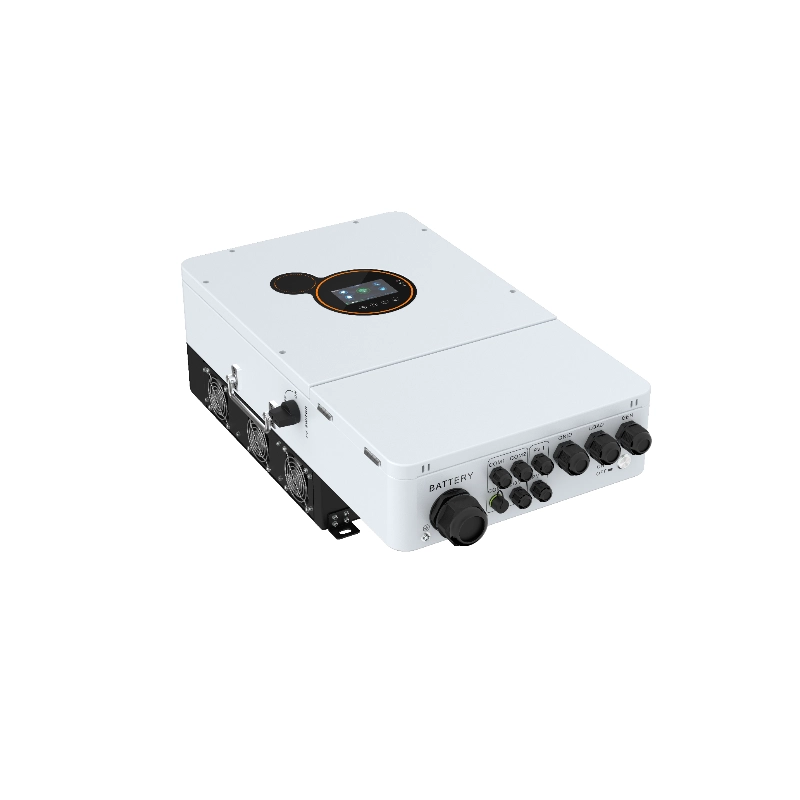

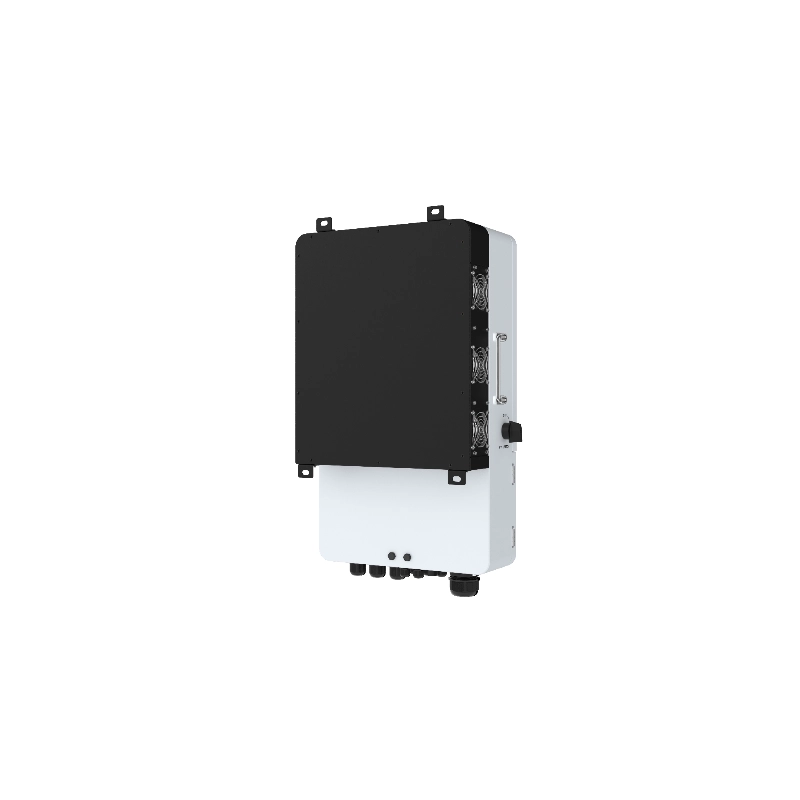

SRNE SEI-8~12K-UP Low-voltage Split-Phase Hybrid inverter

Efficiency

• Advanced MPPT with up to 99.9% efficiency
• Up to 22A*2 PV input current

Reliable

• Output high-quality pure sine wave AC power
• With IP65 protection degree

Safety

• With software and hardware security protection

• Multiple safety approvals

User-friendly

• Industrial design with a modern aesthetic look

• Easy to install and simple to use

All-in-one

• Up to 200A charging current

• Supports Li-ion battery BMS communication

Intelligent

• Exclusive Li-ion battery BMS dual activation

• Time-slot function to save cost with peak-valley

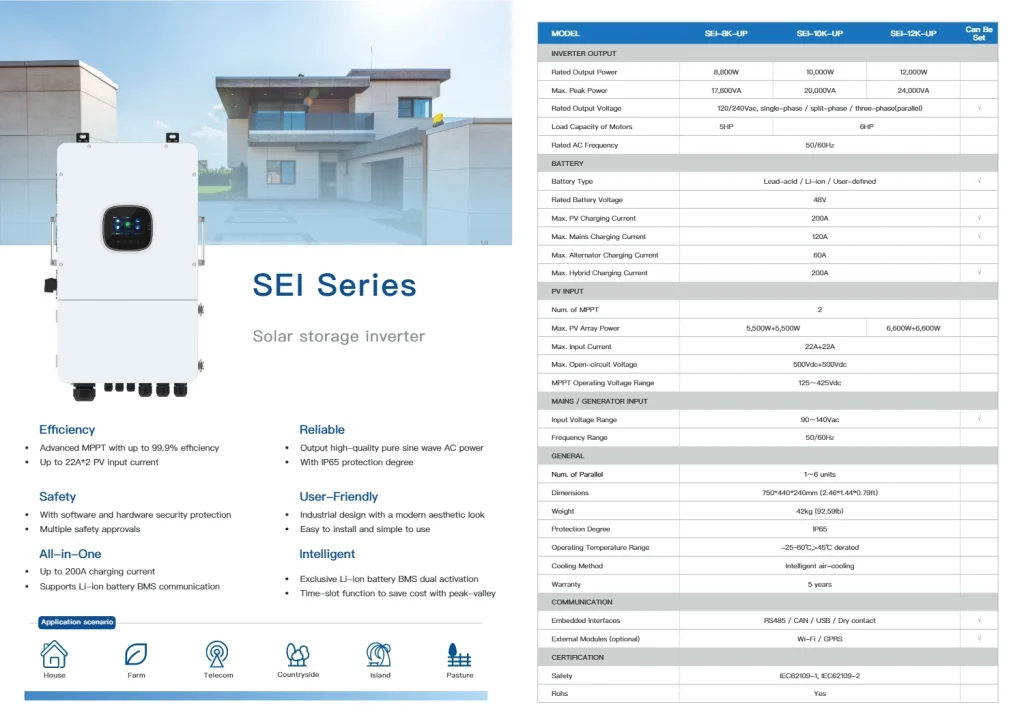

SEI-8~12K-UP

Rated Output Voltage

120/240Vac, single-phase / split-phase / three-phase(parallel)

Rated Battery Voltage

48V

MPPT Operating Voltage Range

125～425Vdc

Frequency Range

50/60Hz
