    HomeProductsSolar PanelsTrina TSM-DEG21C.20 645-665W Dual glass solar panels

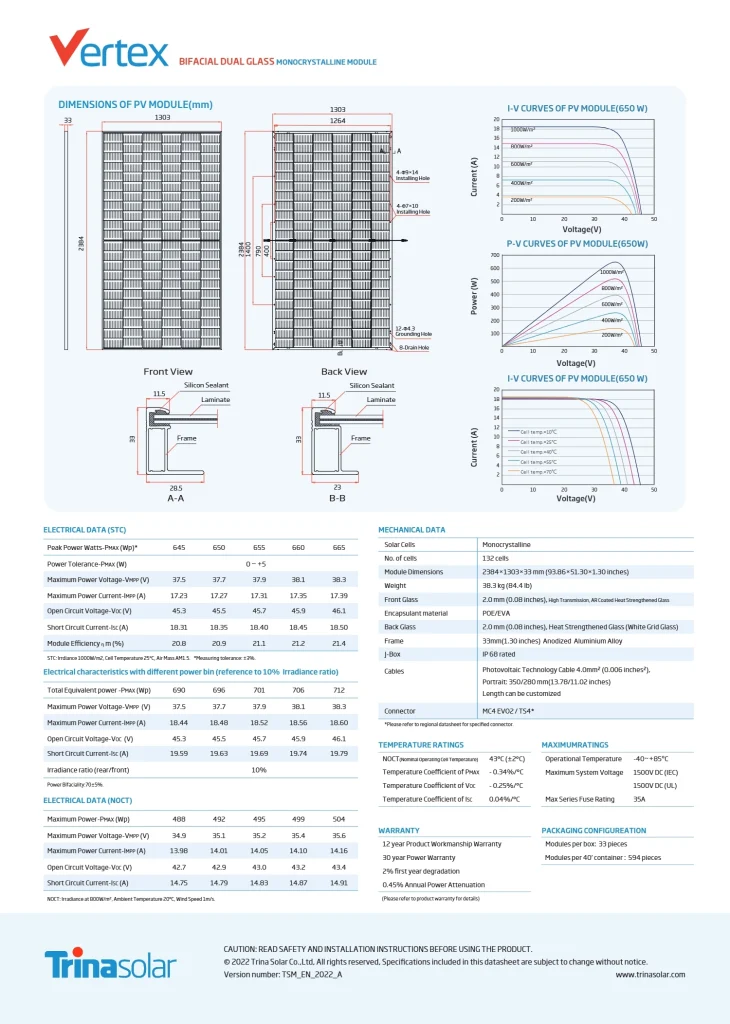

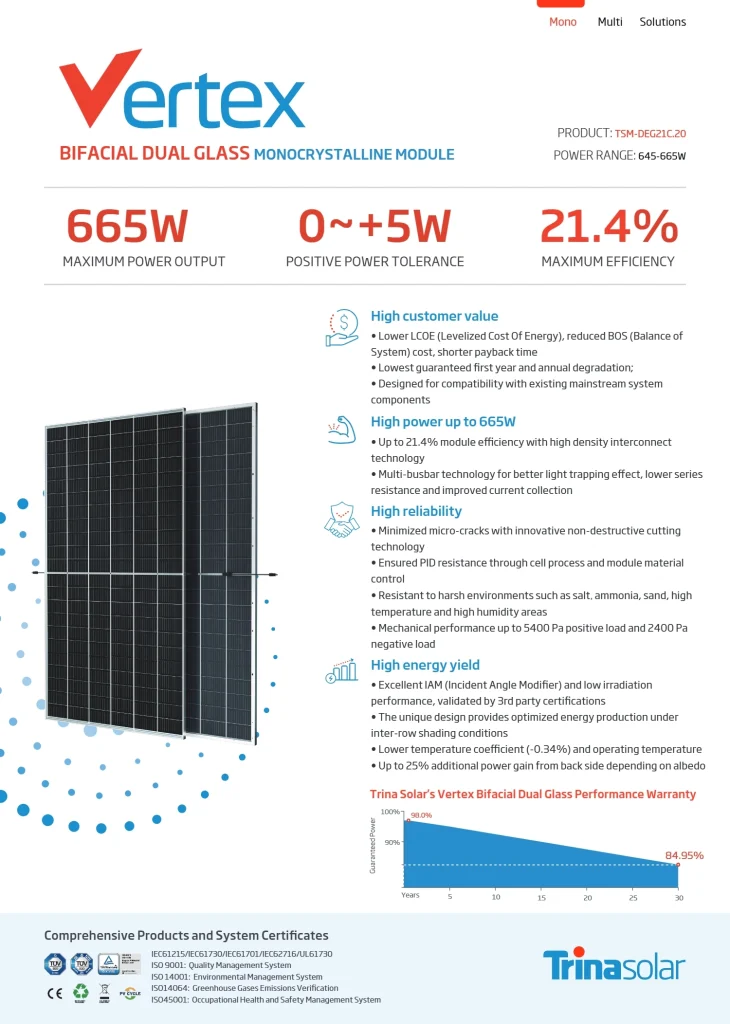

    Data Sheet

    Solar Panels

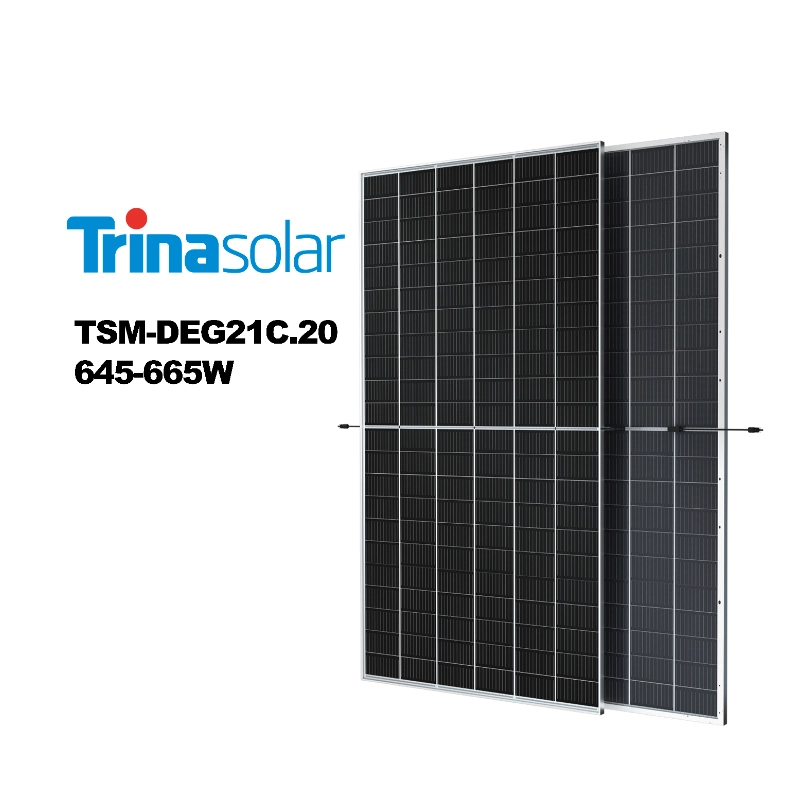

    Trina TSM-DEG21C.20 645-665W Dual glass solar panels

    645W
    650W
    655W
    660W
    665W

    Description:

    High customer value

    • ●Lower LCOE (Levelized Cost Of Energy),reduced BOS(Balance of System)cost,shorter  payback time
    • Lowest guaranteed first year and annual degradation;
    • Designed for compatibility with existing mainstream system components

    High power up to 665W

    • Up to 21.4%module efficiency with high density interconnect technology
    • Multi-busbar technology for better light trapping effect,lower series resistance and improved current collection

    High reliability

    • Minimized micro-cracks with innovative non-destructive cutting technology
    • Ensured PID resistance through cell process and module material control
    • Resistant to harsh environments such as salt,ammonia,sand,high temperature and high humidity areas
    • Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load

    High energy yield

    • ●Excellent IAM(Incident Angle Modifier)and low irradiation performance,validated by 3rd party certifications
    • The unique design provides optimized energy production under inter-row shading conditions
    • Lower  temperature  coefficient(-0.34%)and  operating  temperature
    • Up to 25%additional power gain from back side depending on albedo

    Product parameters:

    Solar Cells Monocrystalline
    No.of cells 132 cells

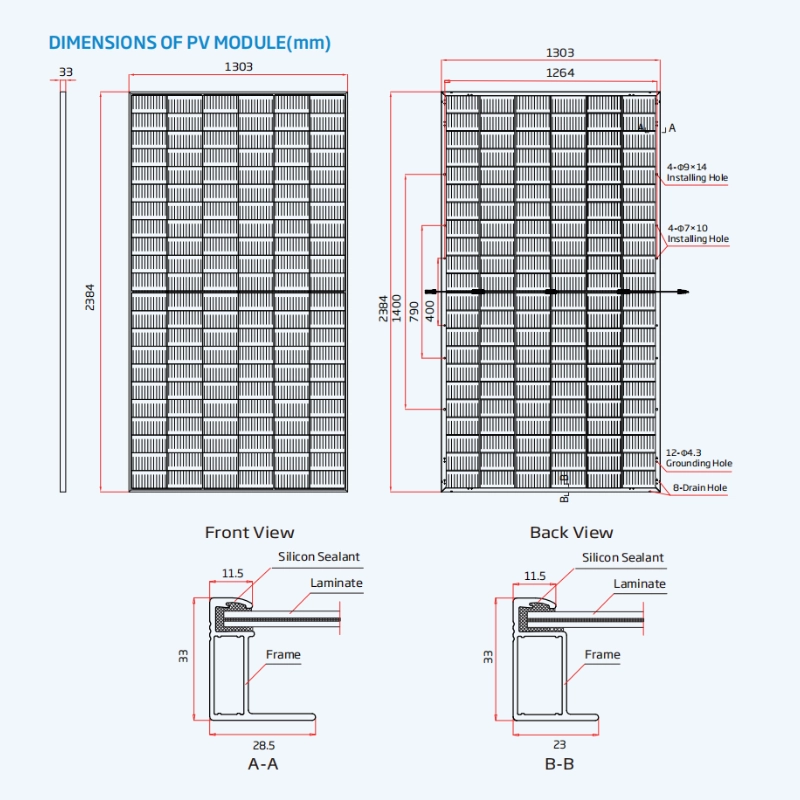

    Module Dimensions 2384×1303×33mm(93.86×51.30×1.30 inches)
    Weight 38.3kg(84.4 Ib)
    Front Glass 2.0mm(0.08 inches),High Transmission,ARCoated Heat Strengthened Glass
    Encapsulant material POE/EVA
    Back Glass 2.0mm(0.08 inches),Heat Strengthened Glass(White Grid Glass)
    Frame 33mm(1.30 inches)Anodized Aluminium Alloy
    J-Box IP68 rated
    Cables Photovoltaic Technology Cable 4.0mm²(0.006 inches²),
    Portrait:350/280 mm(13.78/11.02inches)
    Length can be customized
    Connector MC4    EV02/TS4*
