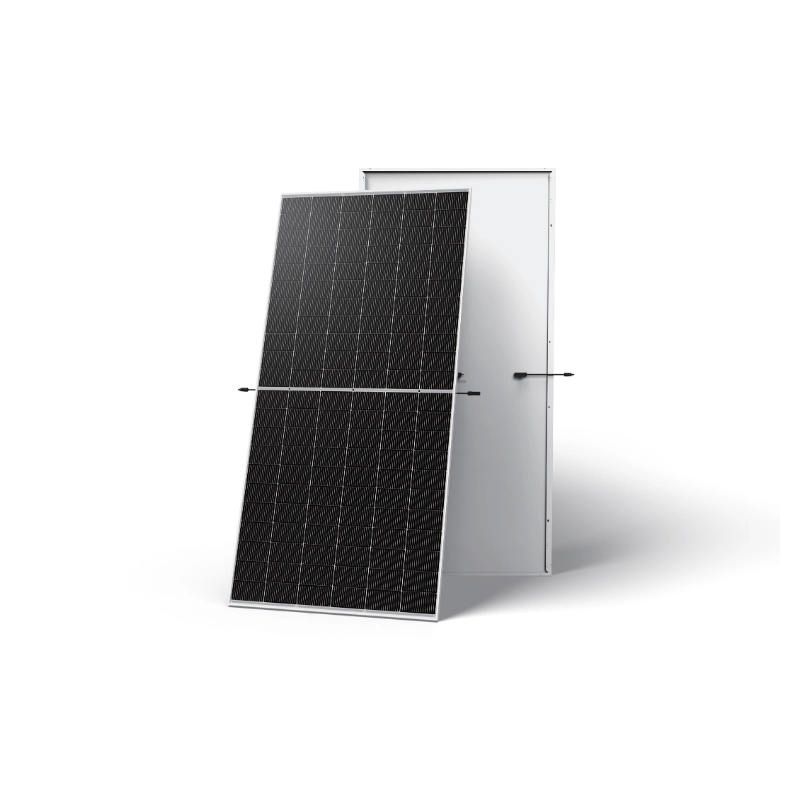

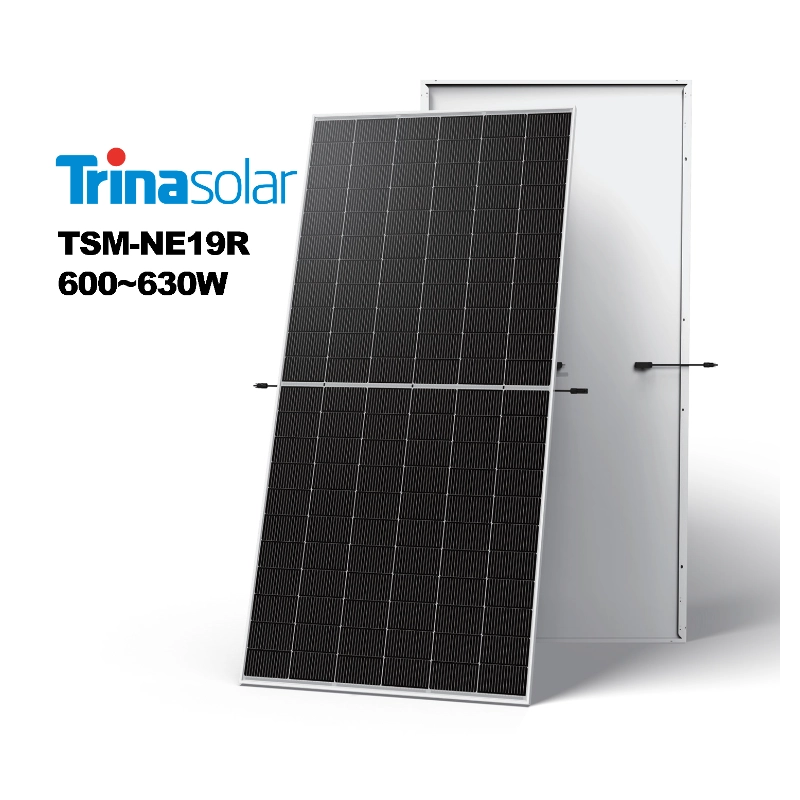

Trina TSM-NE19R 600-630W Single glass solar panels

600W
605W
610W
615W
620W
625W
630W

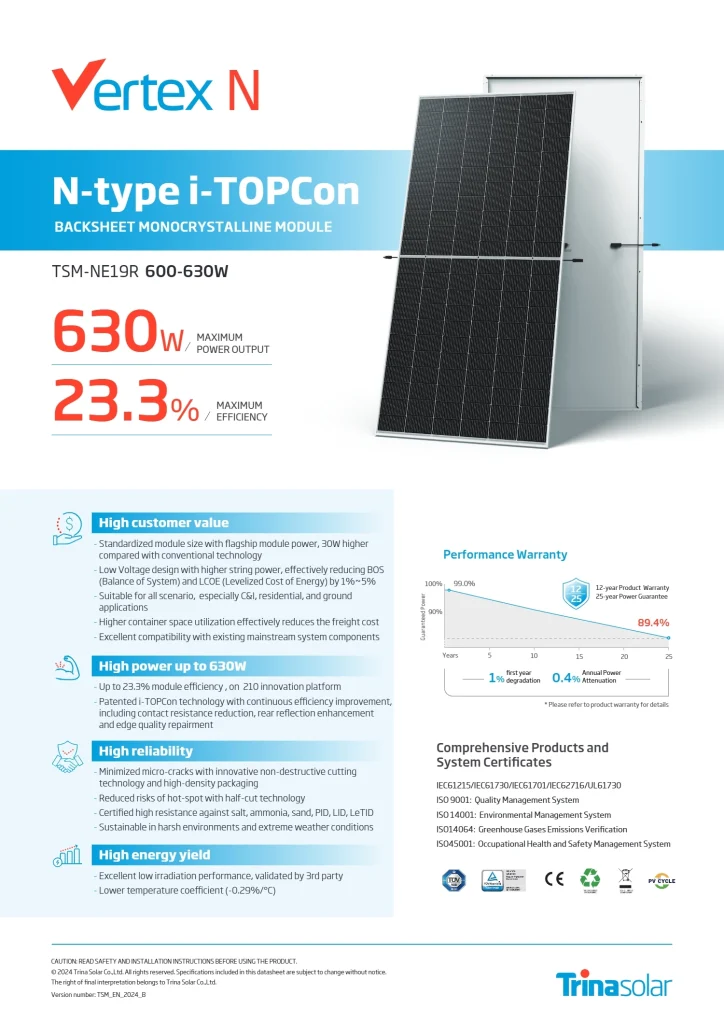

Description:

High customer value

-Standardized module size with flagship module power,30W higher compared with conventional technology
-Low Voltage design with higher string power, effectively reducing BOS(Balance of System)and LCOE(Levelized Cost of Energy)by 1%~5%
-Suitable for all scenario, especially C&I, residential, and ground applications
-Higher container space utilization effectively reduces the freight cost
-Excellent compatibility with existing mainstream system components

High power up to 630W

-Upto 23.3%module efficiency, on 210 innovation platform- Patentedi- TOPCon technology with continuous efficiency improvemel including contact resistance reduction, rear reflection enhancementand edge quality repairment

High reliability

-Minimized micro-cracks with innovative non-destructive cuttingtechnology and high-density packaging
-Reduced risks of hot-spot with half-cut technology
-Certified high resistance against salt,ammonia,sand,PID,LID,LeTID
-Sustainable in harsh environments and extreme weather conditions

High energy yield

-Excellent low irradiation performance,validated by 3rd party
-Lower temperature coefficient(-0.29%/°℃)

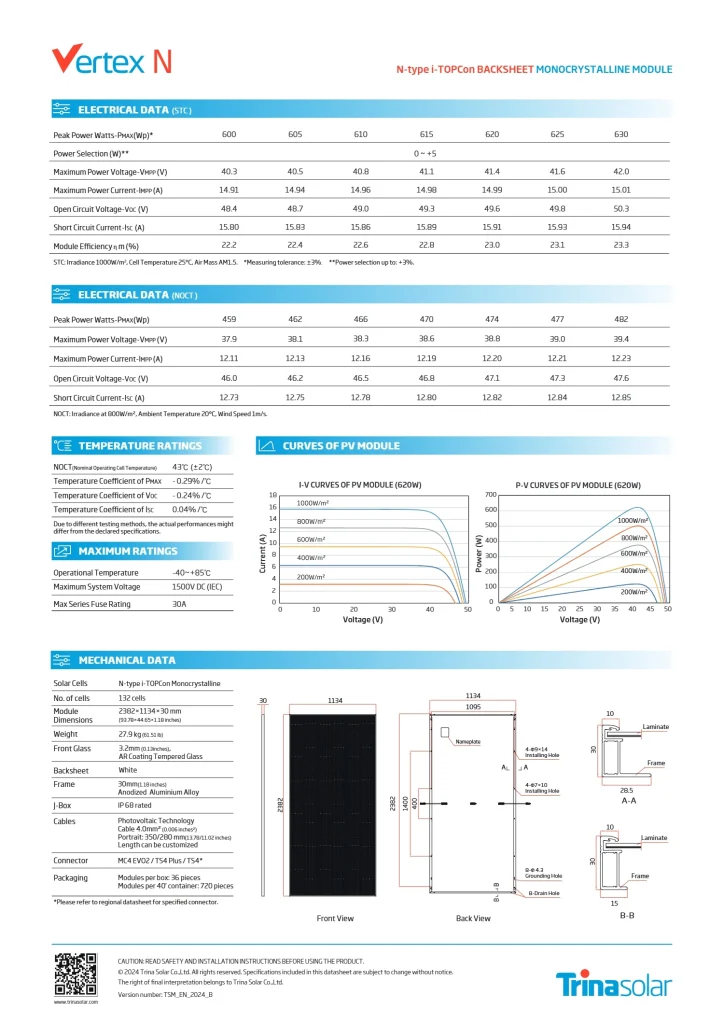

Product parameters:

Solar Cells N-typei-TOPCon Monocrystalline
No.of cells 132 cells

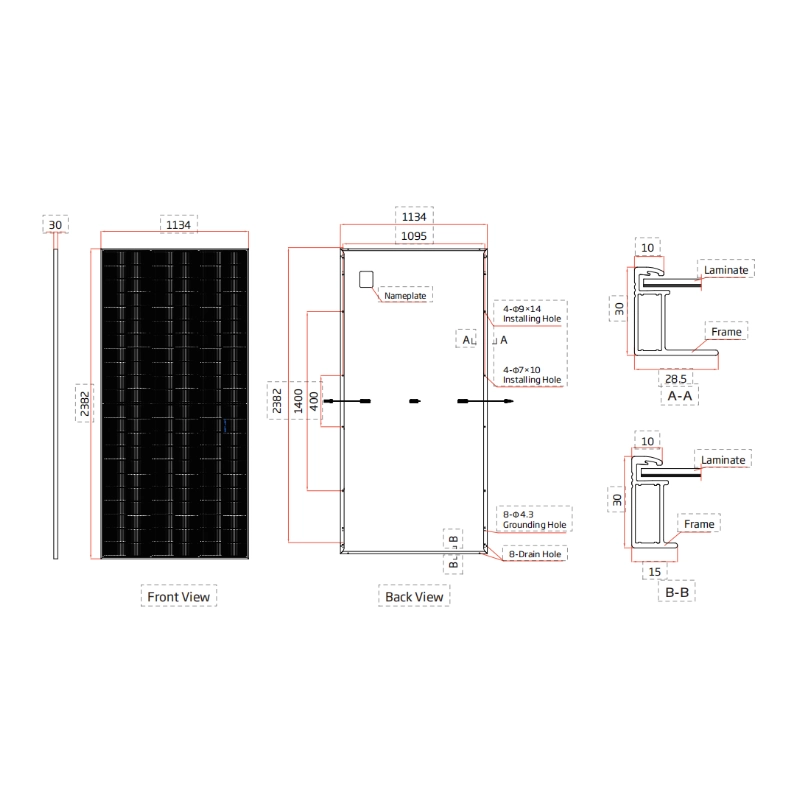

Module 2382×1134×30 mm
Dimensions (93.78×44.65×1.18inches)
Weight 27.9kg(61.51Ib)
Front Glass 3.2mm(0.13inches),
AR Coating Tempered Glass
Backsheet White
Frame 30mm(1.18inches)
Anodized Aluminium Alloy
J-Box IP68 rated
Cables Photovoltaic       Technology
Cable  4.0mm²(0.006  inches²)
Portrait:350/280 mm(13.78/11.02 inches)
Length  can  be  customized
Connector MC4 EV02/TS4 Plus/TS4*
Packaging
Modules per box:36 pieces
Modules per 40'container:720 pieces
