HomeProductsSolar PanelsTrina TSM-NE19R.70 600-630W Single glass solar panels

Solar Panels

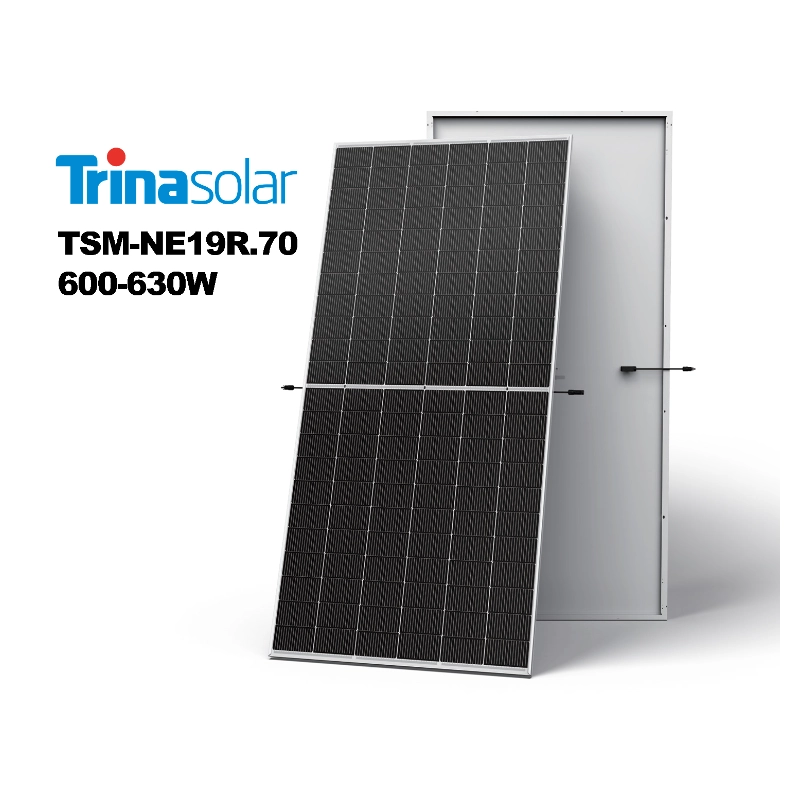

Trina TSM-NE19R.70 600-630W Single glass solar panels

600W
605W
610W
615W
620W
625W
630W

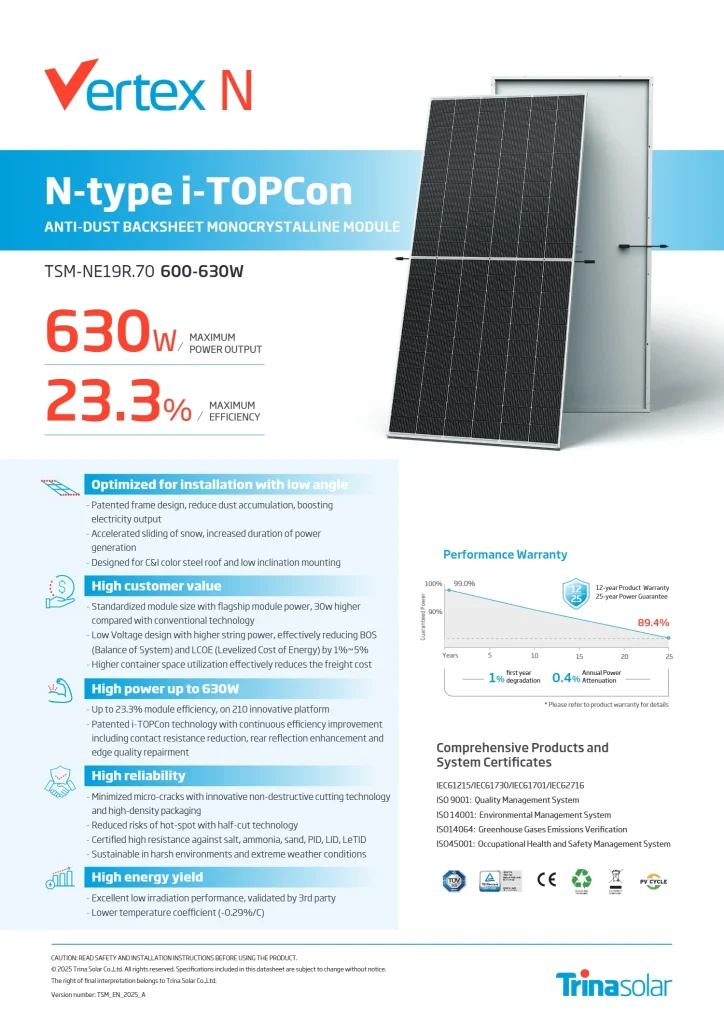

Description:

Optimized for installation with low angle

-Patented frame  design, reduce  dust  accumulation, boosting electricity  output
-Accelerated sliding of snow, increased duration of power generation
-Designed for C&l color steel roof and low inclination mounting

High customer value

-Standardized module size with flagship module power,30w higher compared with conventional technology
-Low Voltage design with higher string power, effectively reducing BOS (Balance of System)and LCOE(Levelized Cost of Energy)by 1%~5%
-Higher container space utilization effectively reduces the freight cost

High power up to 630W

-Up to 23.3%module efficiency, on 210 innovative platform
-Patented i-TOPCon technology with continuous efficiency improvement including contact resistance reduction, rear reflection enhancement and
edge quality repairment

High reliability

-Minimized micro-cracks with innovative non-destructive cutting technology and high-density packaging
-Reduced risks of hot-spot with half-cut technology
-Certified high resistance against salt, ammonia, sand, PID, LID, LeTID
-Sustainable in harsh environments and extreme weather conditions

High energy yield

-Excellent low irradiation performance, validated by 3rd party
-Lower   temperature   coefficient(-0.29%/C)

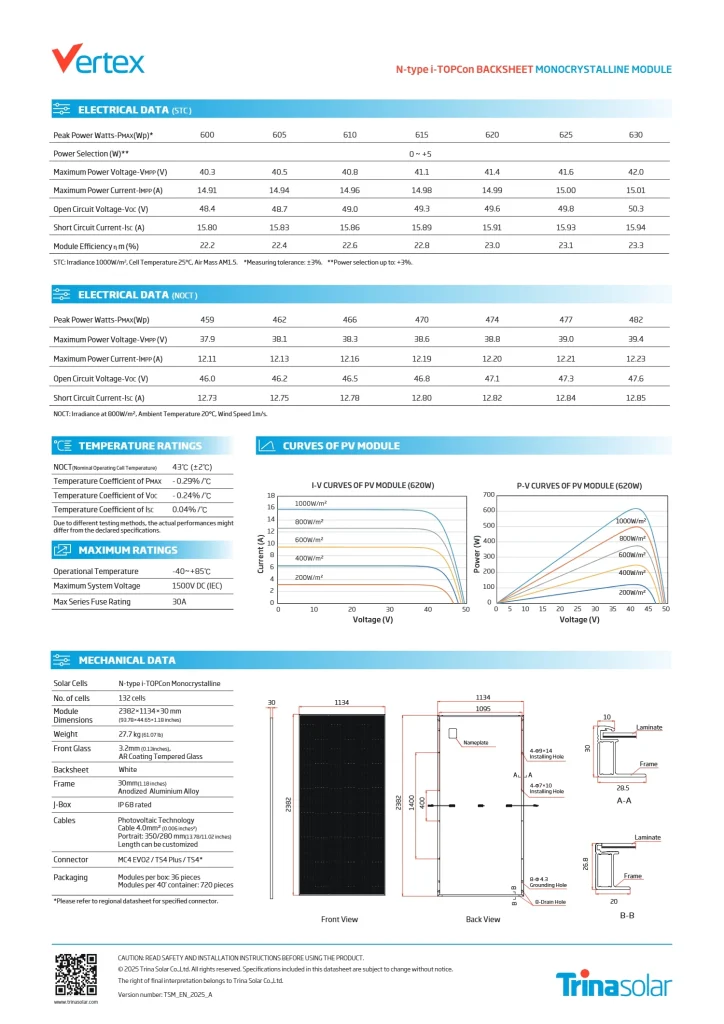

Product parameters:

Solar Cells N-typei-TOPCon Monocrystalline
No.of cells 132 cells

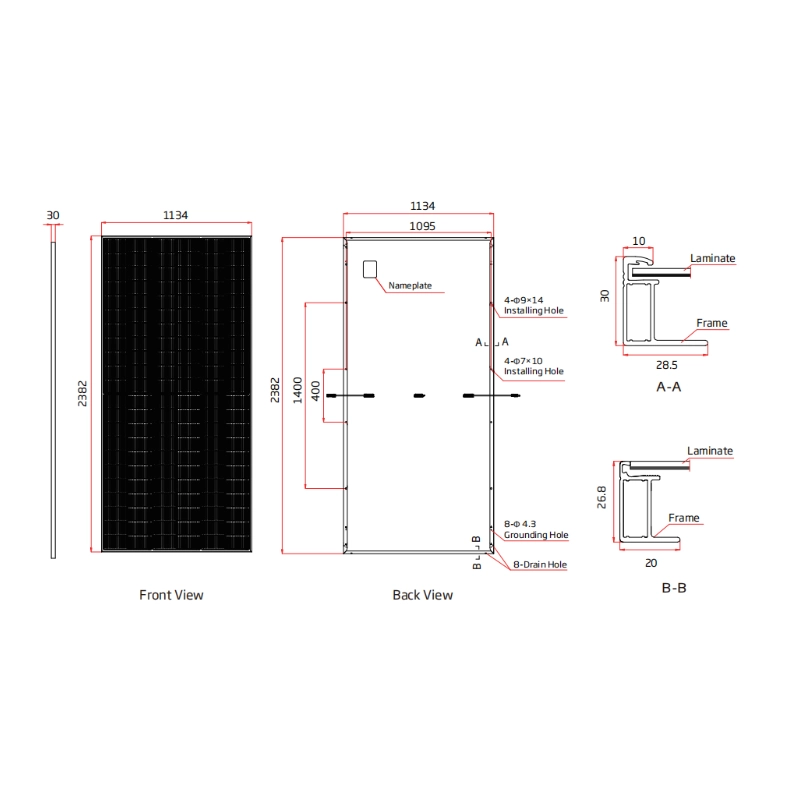

Module 2382×1134×30 mm
Dimensions (93.78×44.65×1.18inches)
Weight 27.7kg(61.07 Ib)
Front Glass 3.2mm(0.13inches),
AR Coating Tempered Glass
Backsheet White
Frame 30mm(1.18 inches)
Anodized Aluminium Alloy
J-Box IP68 rated
Cables Photovoltaic     Technology
Cable  4.0mm²(0.006inches2)
Portrait:350/280 mm(13.78/11.02 inches)
Length  can  be  customized
Connector MC4 EV02/TS4 Plus/TS4*
Packaging

Modules per box:36 pieces

Modules  per  40'container:720  pieces
