Data Sheet

Solar Panels

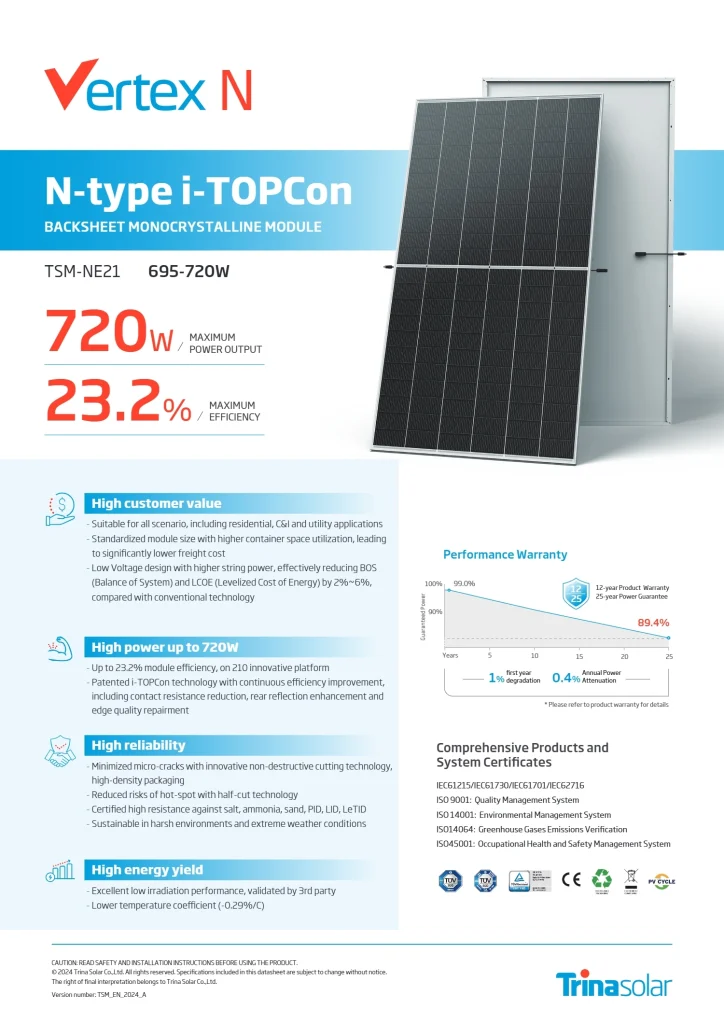

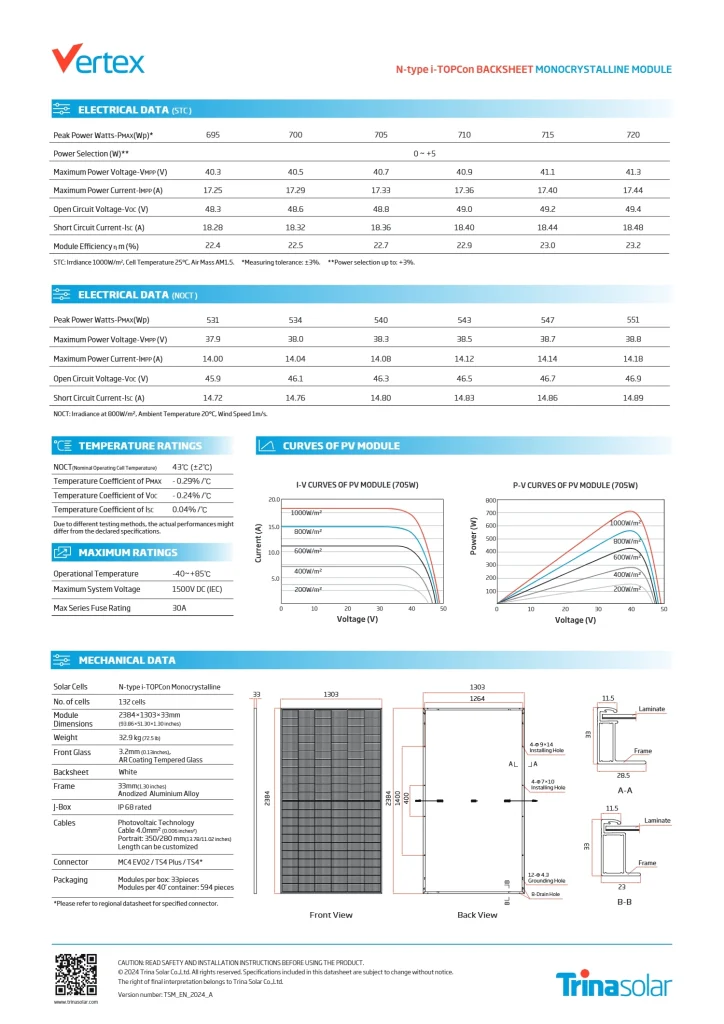

Trina TSM-NE21 695-720W Single glass solar panels

High customer value -Suitable for all scenario,including residential,C&l and utility applications -Standardized module size with higher container space utilization, leading to significantly lower freight cost -Low Voltage design with higher string power, effectively reducing BOS (Balance of System)and LCOE (Levelized Cost of Energy)by 2%～6%, compared with conventional technology
	High power up to 720W -Up to 23.2%module efficiency,on 210 innovative platform -Patented i-TOPCon technology with continuous efficiency improvement including contact resistance reduction,rear reflection enhancement and edge quality repairment
		High reliability -Minimized micro-cracks with innovative non-destructive cutting technology, high-density packaging -Reduced risks of hot-spot with half-cut technology -Certified high resistance against salt, ammonia, sand, PID, LID, LeTID -Sustainable in harsh environments and extreme weather conditions
			High energy yield -Excellent low irradiation performance ,validated by 3rd party -Lower temperature coefficient(-0.29%/C)

Solar Cells	N-type i-TOPCon Monocrystalline
No.of cells	132cells

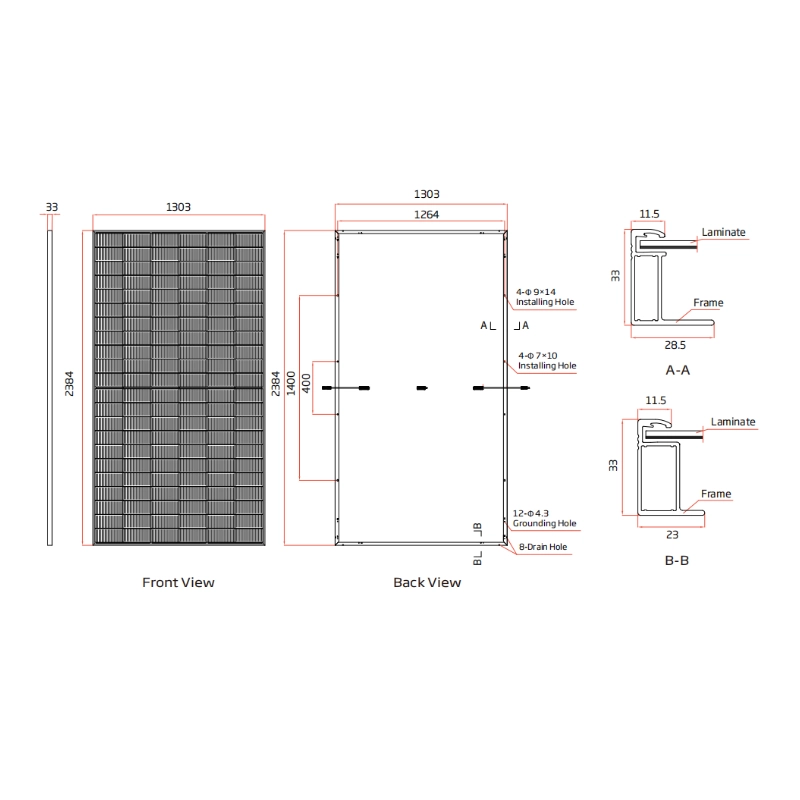

Module	2384×1303×33mm
Dimensions	(93.86×51.30×1.30 inches)
Weight	32.9kg(72.5 Ib)
Front Glass	3.2mm(0.13inches), AR Coating Tempered Glass
Backsheet	White
Frame	33mm(1.30 inches) Anodized Aluminium Alloy
J-Box	IP68 rated
Cables	Photovoltaic Technology Cable 4.0mm²(0.006inches²) Portrait:350/280 mm(13.78/11.02 inches) Length can be customized
Connector	MC4 EV02/TS4 Plus/TS4*
Packaging	Modules per box:33pieces Modules per 40'container:594 pieces
