Data Sheet

Solar Panels

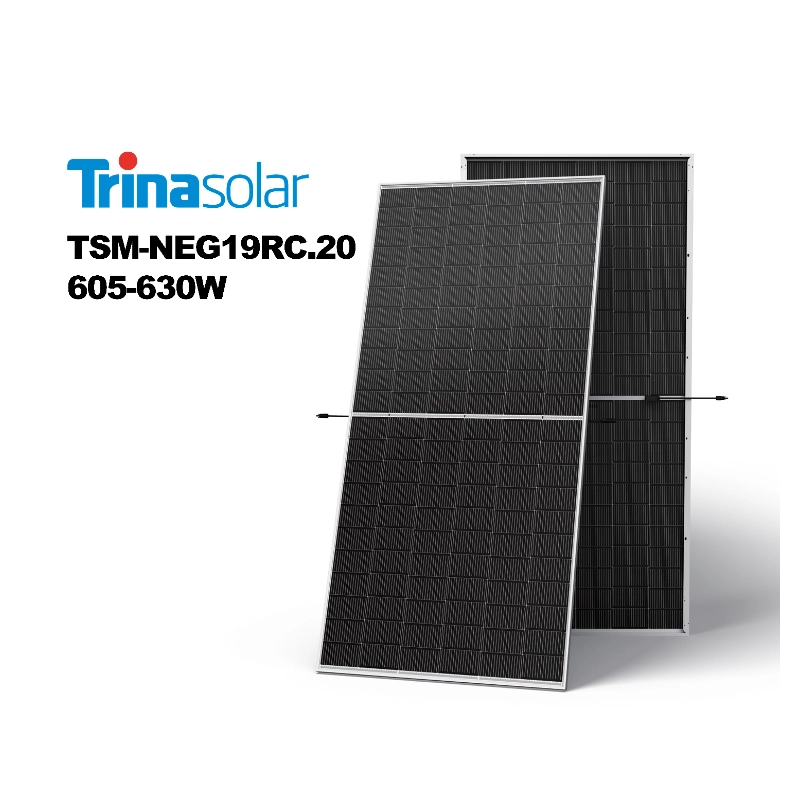

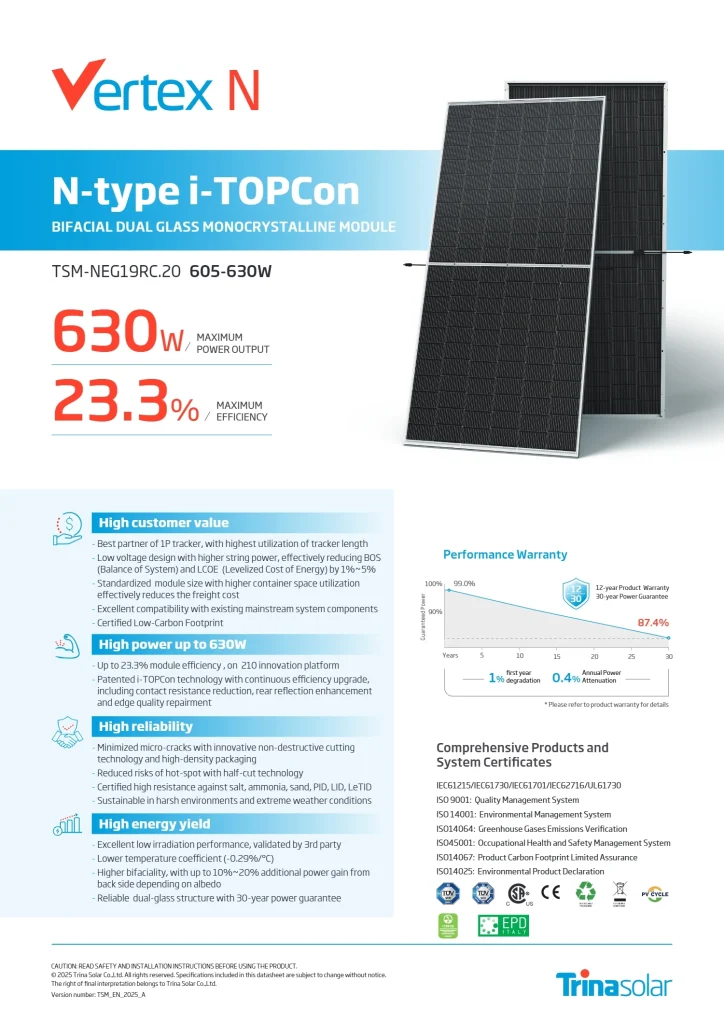

Trina TSM-NEG19RC.20 605-630W Dual glass solar panels

High customer value -Best partner of 1P tracker, with highest utilization of tracker length -Low voltage design with higher string power, effectively reducing BOS (Balance of System)and LCOE(Levelized Cost of Energy)by 1%~5% -Standardized module size with higher containers pace utilization effectively reduces the freight cost -Excellent compatibility with existing mainstream system components - Certified Low-Carbon Footprint
	High power up to 630W -Up to 23.3%module efficiency, on 210 innovation platform - Patentedi -TOPC on technology with continuous efficiency upgrade, including contact resistance reduction ,rear reflection enhancement and edge quality repairment
		High reliability -Minimized micro-cracks with innovative non-destructive cutting technology and high-density packaging -Reduced risks of hot-spot with half-cut technology -Certified high resistance against salt, ammonia, sand, PID, LID, LeTID -Sustainable in harsh environments and extreme weather conditions
			High energy yield -Excellent low irradiation performance, validated by 3rd party -Lower temperature coefficient(-0.29%/℃) -Higher bifaciality, with up to 10%~20%additional power gain from back side depending on albedo -Reliable dual-glass structure with 30-year power guarantee

Solar Cells	N-type i-TOPCon Monocrystalline
No.of cells	132 cells

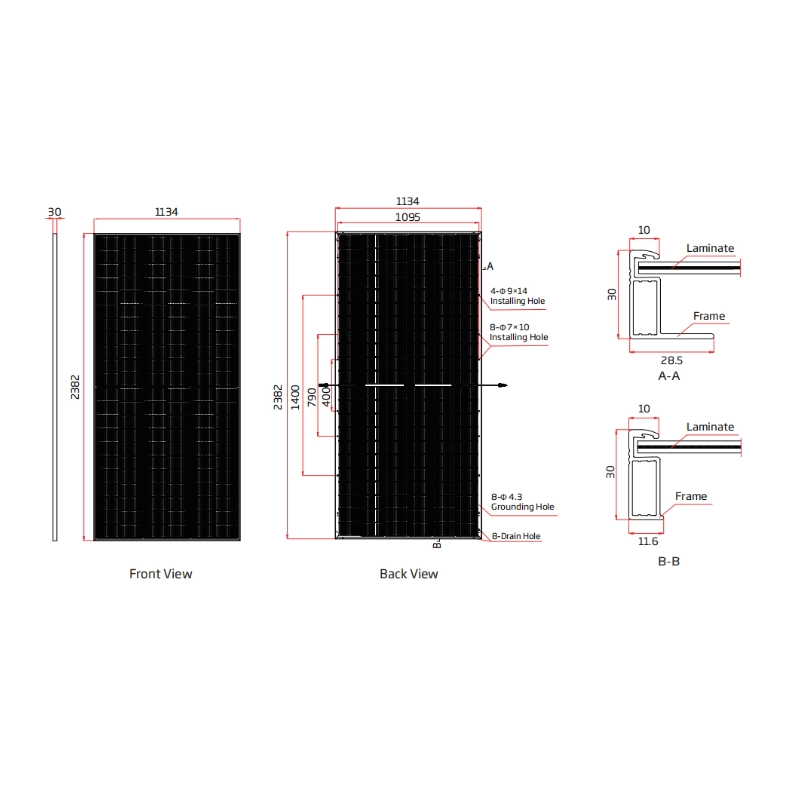

Module	2382×1134×30 mm
Dimensions	(93.78×44.65×1.18inches)
Weight	33.0kg(72.8Ib)
Front Glass	2.0 mm(0.08inches), AR Coating Heat Strengthened Glass
Back Glass	2.0 mm (0.08 inches),
Back Glass	Heat Strengthened Glass(White Coating)
Frame	30mm(1.18 inches) Anodized Aluminium Alloy
J-Box	IP68 rated
Cables	Photovoltaic Technology Cable 4.0mm²(0.006 inches²) Portrait:350/280 mm(13.78/11.02 inches) Length can be customized
Connector	MC4 EV02/TS4 Plus/TS4*
Packaging	Modules per box:36 pieces Modules per 40'container:720 pieces
