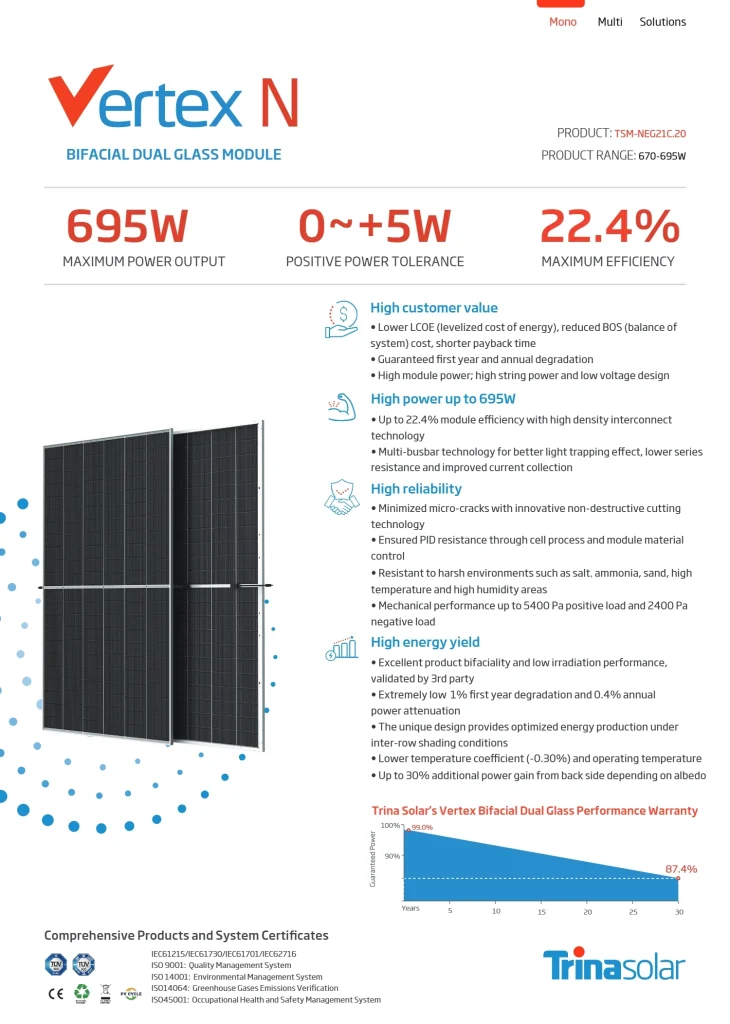

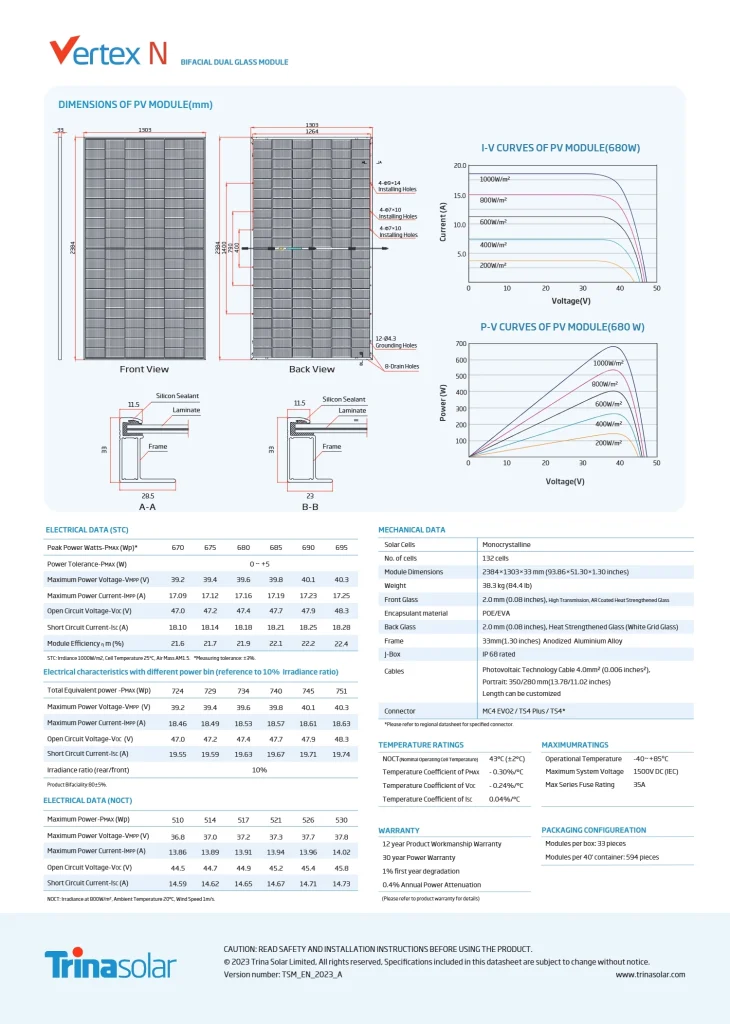

    Data Sheet

    Solar Panels

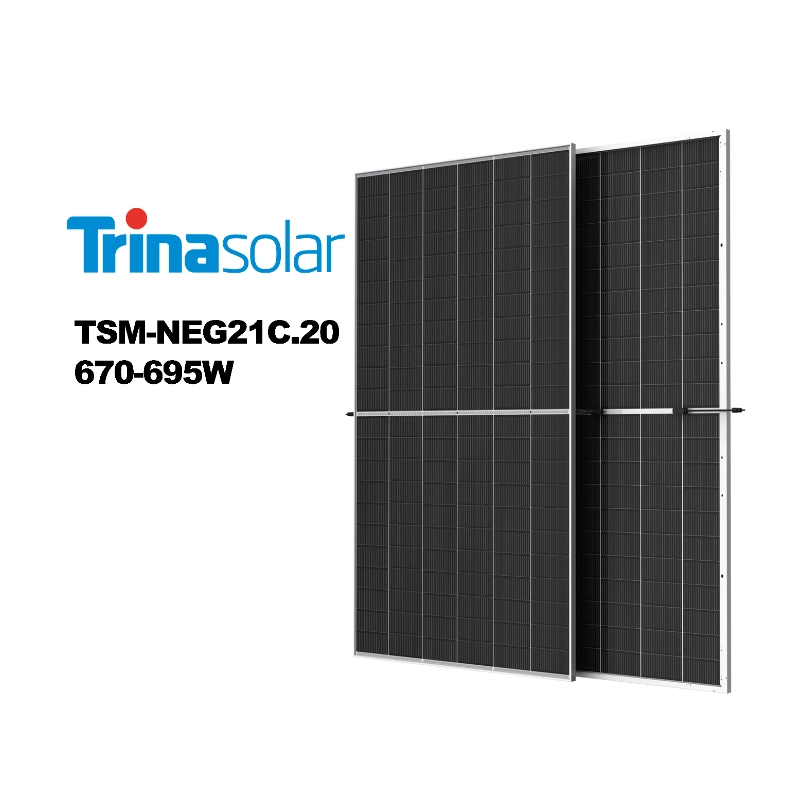

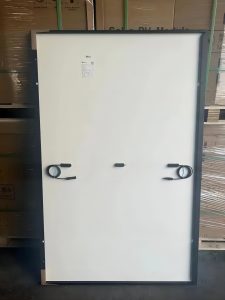

    Trina TSM-NEG21C.20 670-695W Dual glass solar panels

    670W
    675W
    680W
    685W
    690W
    695W

    Description:

    High customer value

    • ·Lower LCOE(levelized cost of energy),reduced BOS(balance of system)cost, shorter  payback  time
    • Guaranteed first year and annual degradation
    • High module power; high string power and low voltage design

    High power up to 695W

    • ·Up to 22.4%module efficiency with high density interconnect technology
    • Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection

    High reliability

    • Minimized micro-cracks with innovative non-destructive cutting technology
    • Ensured PID resistance through cell process and module material control
    • Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
    • Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load

    High energy yield

    • Excellent product bifaciality and low irradiation performance, validated by 3rd party
    • Extremely low  1%first year degradation and 0.4%annual power  attenuation
    • The unique design provides optimized energy production under inter-row shading conditions
    • Lower  temperature  coefficient(-0.30%)and  operating  temperature
    • Up to 30%additional power gain from back side depending on albedo

    Product parameters:

    Solar Cells Monocrystalline
    No.of cells 132 cells

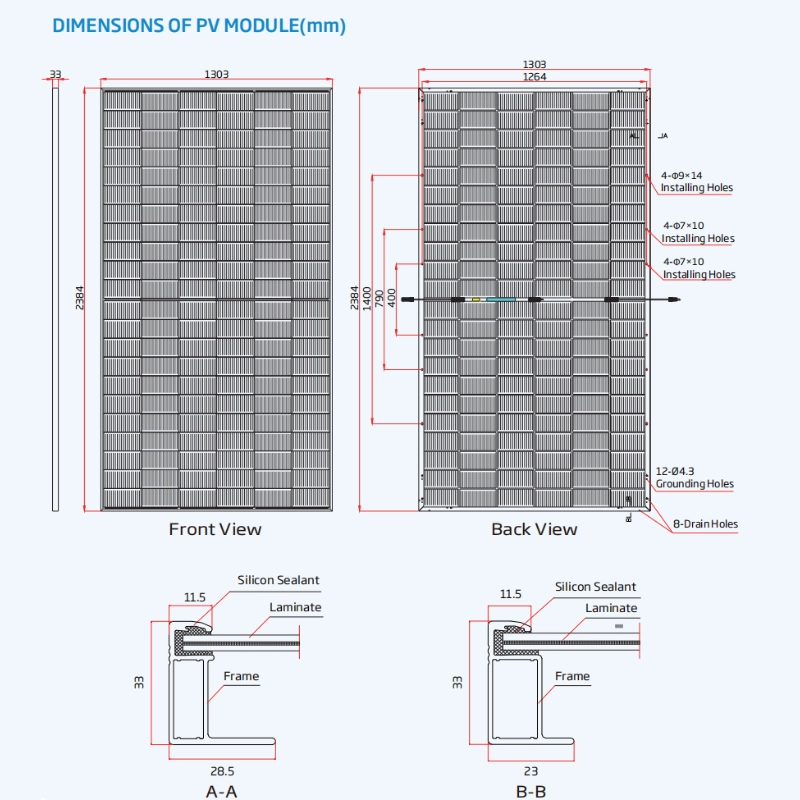

    Module Dimensions 2384×1303×33mm(93.86×51.30×1.30 inches)
    Weight 38.3kg(84.4 Ib)
    Front Glass 2.0mm(0.08 inches),High Transmission, ARC oated Heat Strengthened Glass
    Encapsulant material POE/EVA
    Back Glass 2.0mm(0.08 inches),Heat Strengthened Glass(White Grid Glass)
    Frame 33mm(1.30 inches)Anodized Aluminium Alloy
    J-Box IP68 rated
    Cables Photovoltaic Technology Cable 4.0mm²(0.006 inches²),
    Portrait:350/280 mm(13.78/11.02 inches)
    Length can be customized
    Connector MC4 EVO2/TS4 Plus/TS4*

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    670-695W | Dual glass

    production process

    Packaging And Delivery
