    HomeProductsSolar PanelsTW SOLAR TWMND-66HD 610-630W Dual glass solar panels

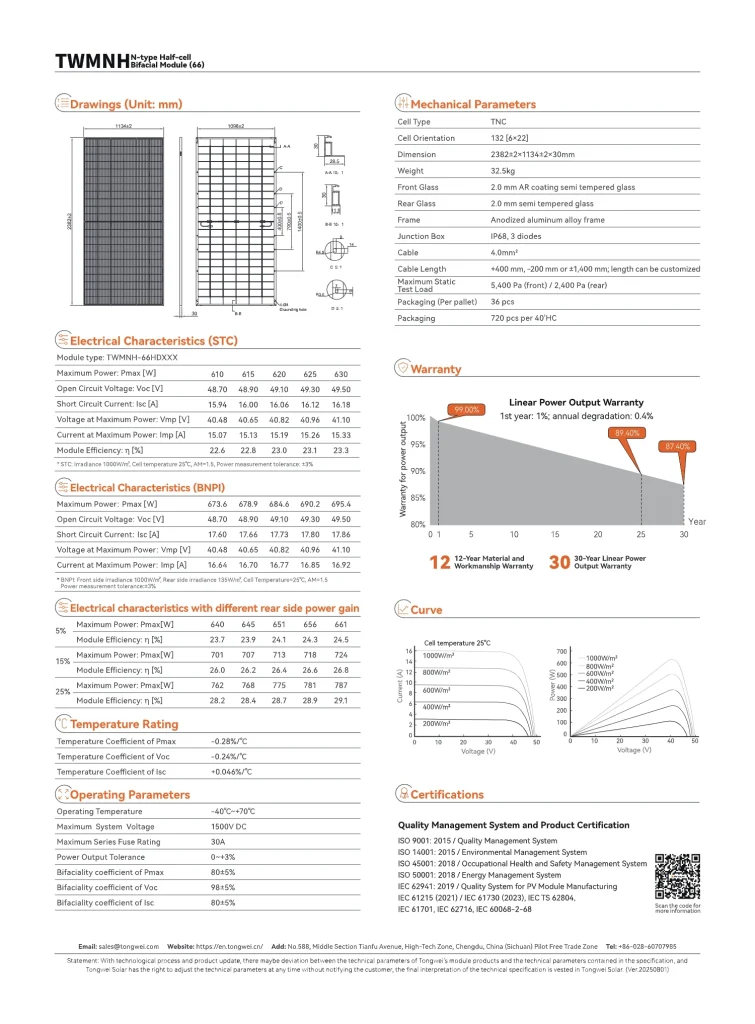

    Data Sheet

    Solar Panels

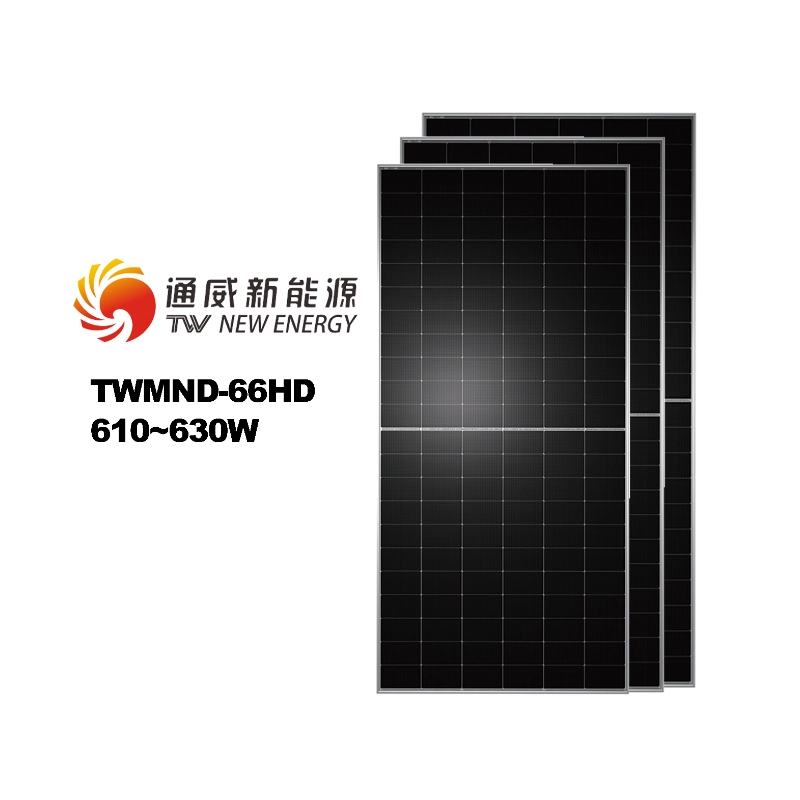

    TW SOLAR TWMND-66HD 610-630W Dual glass solar panels

    610W
    615W
    620W
    625W
    630W

    Description:

    • ISO 9001:2015/Quality Management System
    • ISO 14001:2015/Environmental Management System
    • ISO 45001:2018/Occupational Health and Safety Management System
    • ISO 50001:2018/Energy Management System
    • IEC 62941:2019/Quality System for PV Module Manufacturing
    • IEC 61215(2021)/IEC 61730(2023),IEC TS 62804,
    • IEC61701,IEC 62716,IEC 60068-2-68

    Product parameters:

    Cell Type TNC
    Cell Orientation 132[6×22]

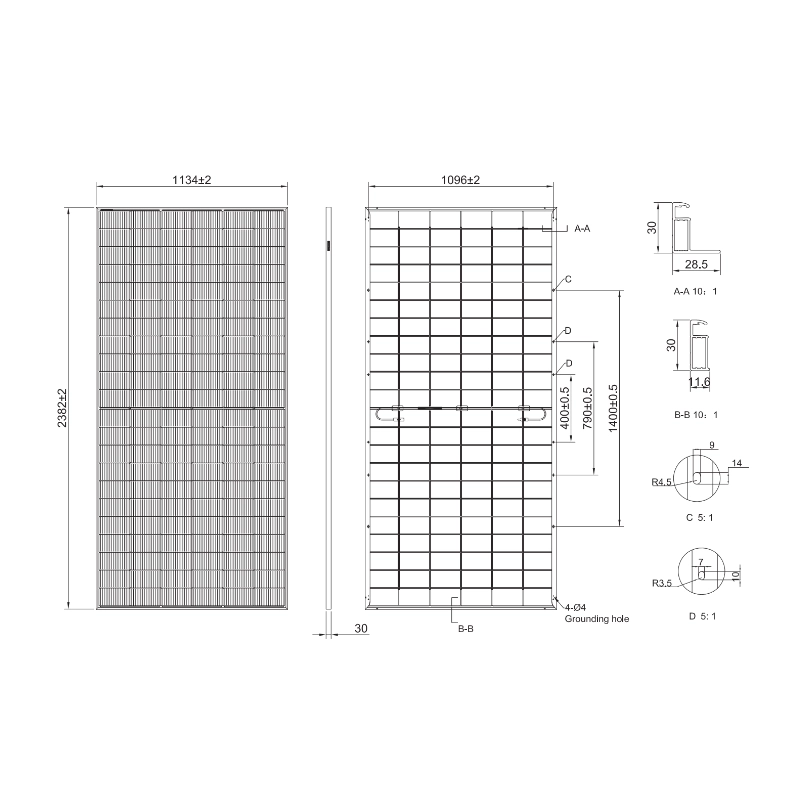

    Dimension 2382±2×1134±2×30mm
    Weight 32.5kg
    Front Glass 2.0 mm AR coating semi tempered glass
    Rear Glass 2.0 mm semi tempered glass
    Frame Anodized aluminum alloy frame
    Junction Box IP68,3 diodes
    Cable 4.0mm²
    Cable Length +400 mm,-200 mm or±1,400 mm;length can be customized
    Maximum Static
    Test Load    		 5,400 Pa(front)/2,400 Pa(rear)
    Packaging(Per pallet) 36 pcs
    Packaging 720 pcs per 40'HC

    Inquire Now

    WhatsApp

    Share:

    • description
    • production process
    • Packaging And Delivery

    description

    610~630W | Dual glass

    production process

    Packaging And Delivery
