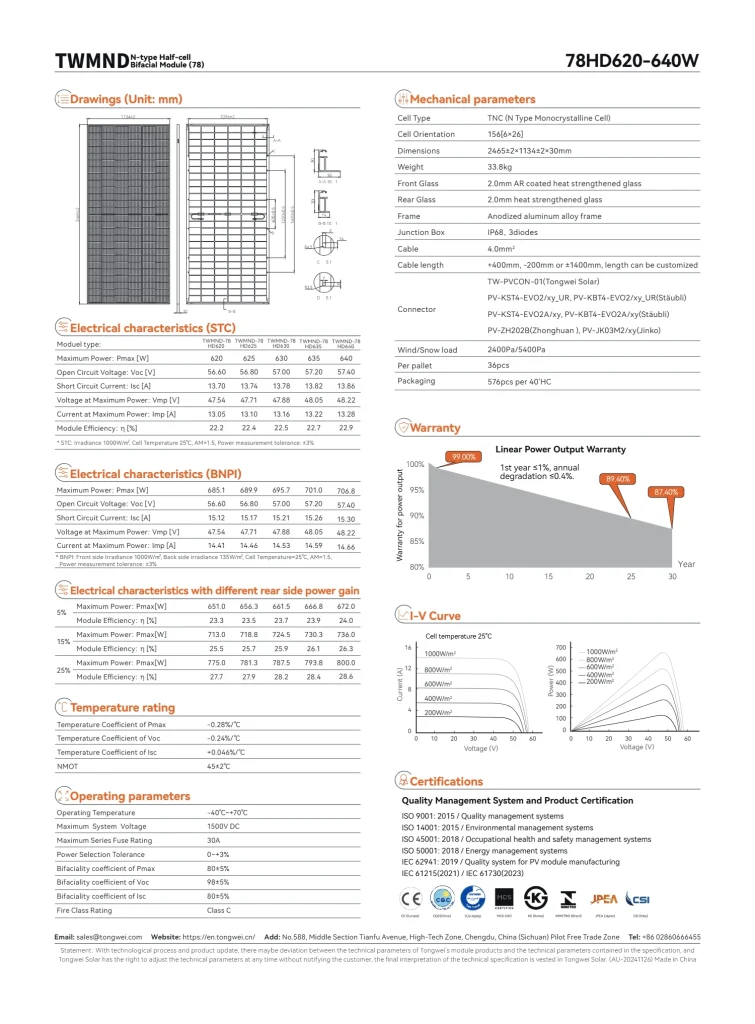

Data Sheet

Solar Panels

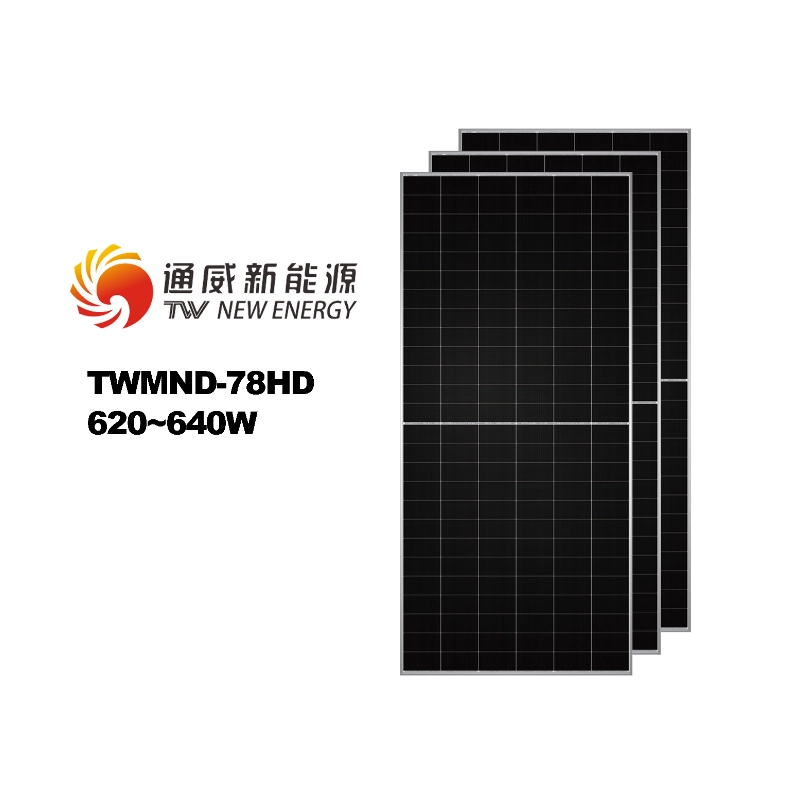

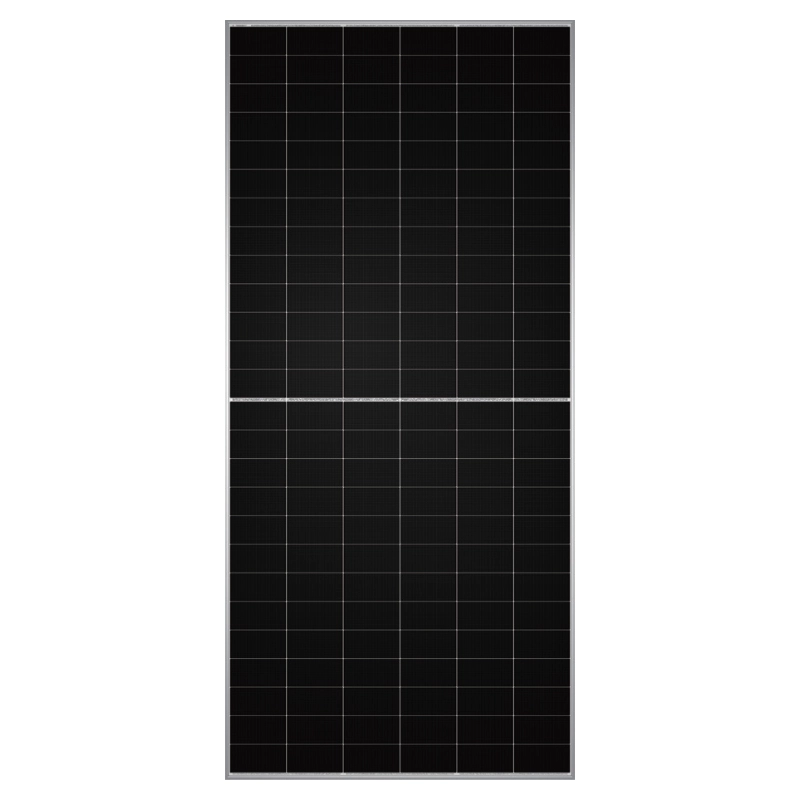

TW SOLAR TWMND-78HD 620-640W Dual glass solar panels

ISO 9001:2015/Quality management systems
ISO 14001:2015/Environmental management systems
ISO 45001:2018/Occupational health and safety management systems
ISO 50001:2018/Energy management systems
IEC 62941:2019/Quality system for PV module manufacturingIEC61215(2021)/IEC 61730(2023)

Cell Type	TNC(N Type Monocrystalline Cell)
Cell Orientation	156[6×26]

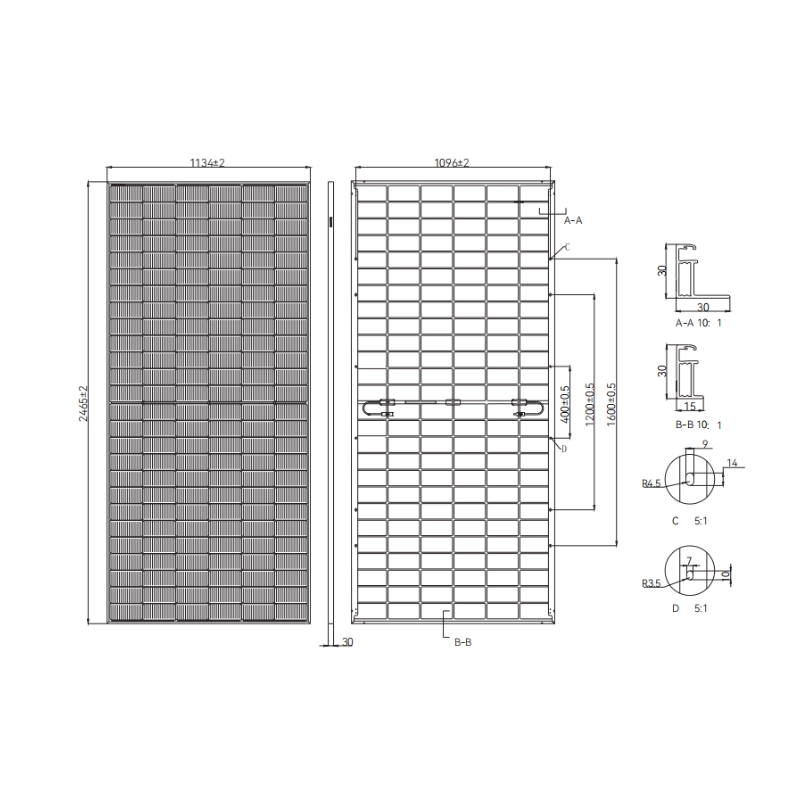

Dimensions	2465±2×1134±2×30mm
Weight	33.8kg
Front Glass	2.0mm AR coated heat strengthened glass
Rear Glass	2.0mm heat strengthened glass
Frame	Anodized aluminum alloy frame
Junction Box	IP68,3diodes
Cable	4.0mm²
Cable length	+400mm,-200mm or±1400mm,length can be customized
	TW-PVCON-01(Tongwei Solar)
	PV-KST4-EVO2/xy_UR,PV-KBT4-EVO2/xy_UR(Stäubli)
Connector	PV-KST4-EVO2A/xy,PV-KBT4-EVO2A/xy(Stäubli)
Connector	PV-ZH202B(Zhonghuan),PV-JK03M2/xy(Jinko)
Wind/Snow load	2400Pa/5400Pa

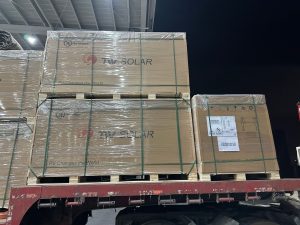

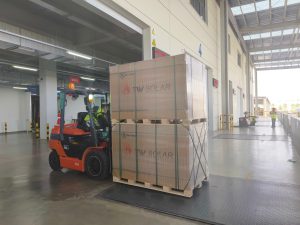

Per pallet	36pcs
Packaging	576pcs per 40'HC
